Tamaño: 0,96 "para 15,6"
Interfaz: IIC, USB
Estructura: G, G FF, P G
Superficie artesanal: AR, AF, AG, AS
Vinculación: Aire o OCA
Toque: Multi-punto táctil

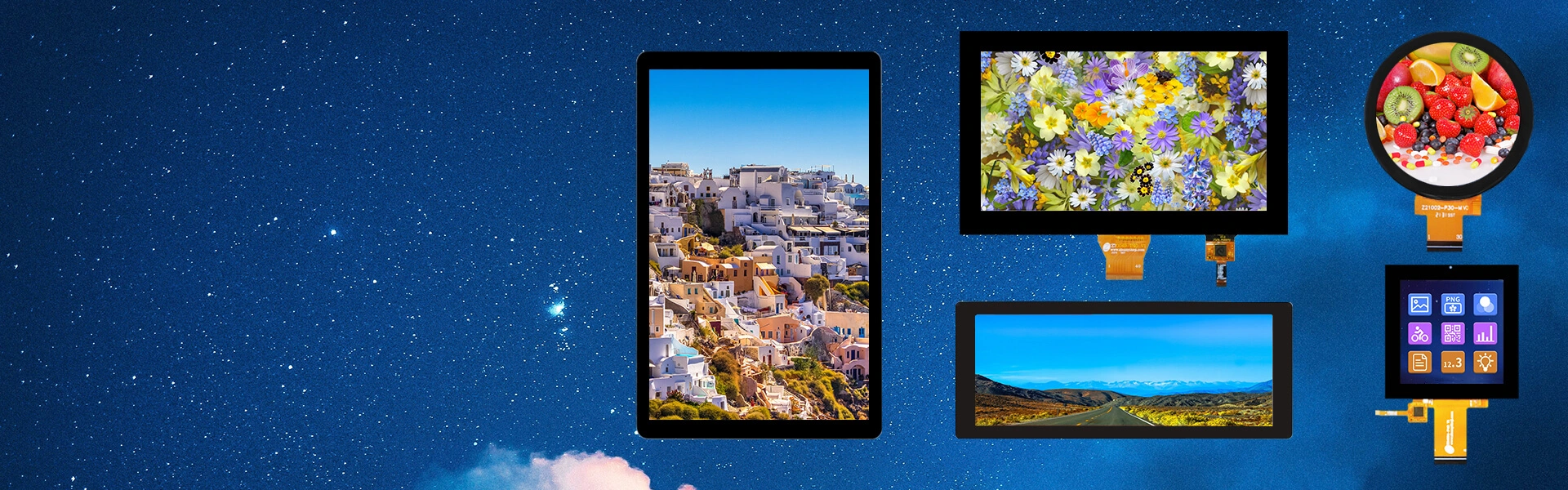

El panel de pantalla táctil capacitiva Zhunyi es un tipo de pantalla utilizada sensor de corriente humana. Hay diferentes tipos de estructura del panel táctil capacitiva, G, G FF, P G. Según la aplicación de la pantalla táctil, el panel táctil capacitivo utiliza la nave de superficie AR, AF, AG o AS. IIC y USB son dos interfaz popular. Hay dos formas de unión, unión por aire y Unión OCA.
La pantalla táctil capacitiva TFT LCD es un amplio uso en teléfonos inteligentes, portátiles, hogares inteligentes, industria, médicos, educación, agricultura, aviones, POS, expendedoras, relojes, vehículos, timbre visual, navegación y así sucesivamente.
Size(inch) | Resolution | Model | Outline Dimension(mm) | Active Area(mm) | View Angle | Interface | Luminance(nits) | Touch Screen | OP(℃) |
| 1.28 | 240*240 | Z13006-ZC | 42*42*3.35 | 32.4*32.4 | IPS | SPI/I2C | 300 | CTP | -20℃~70℃ |
| 1.3 | 240*240 | Z13002-ZC | 26.17*29.22*1.5 | 23.4*23.4 | IPS | SPI/I2C | 300 | CTP | -20℃~70℃ |
| 1.3 | 240*240 | Z13008-ZC | 26.2 *9.22 *2.44 | 23.4*23.4 | IPS | SPI/I2C | 300 | CTP | -20℃~70℃ |
| 1.3 | 240*240 | Z154001-ZC | 31.50 *35.0*1.91 | 27.72*27.72 | IPS | SPI/I2C | / | CTP | -20℃~70℃ |
| 1.7 | 240*280 | Z17001-ZC | 33.23*43.65*3.63 | 27.97*32.63 | IPS | SPI/I2C | 500 | CTP | -20℃~70℃ |
| 2.1 | 480*480 | Z21002ZC | 53.28*53.28 | IPS | MIPI/I2C | 300 | CTP | -20℃~70℃ | |
| 2.8 | 240*320 | Z28001-ZC | 49.94* 71* 3.65 | 43.2 * 57.6 | IPS | MCU/I2C | 350 | CTP | -20℃~70℃ |
| 2.8 | 240*320 | Z28003-ZC | 49.94*71*4.09 | 43.2*57.6 | TN | SPI/I2C | 300 | CTP | -20℃~70℃ |
| 2.8 | 480*480 | Z28008-ZC | 73.03*76.58*2.74 | 70.13*70.13 | IPS | MIPI/I2C | 300 | CTP | -20℃~70℃ |
| 3 | 480*854 | Z30010-ZC | 49.80*85.10*4.03 | 37.44*66.61 | IPS | SPI+RGB/I2C | 450 | CTP | -20℃~70℃ |
| 3 | 480*854 | Z30063-ZC | 43.50*90.5*3.14 | 37.44*66.61 | IPS | MIPI/I2C | 400 | CTP | -20℃~70℃ |
| 3 | 480*854 | Z30070-ZC | 46.40*78.574*3.95 | 37.44*66.61 | IPS | MIPI/I2C | 350 | CTP | -20℃~70℃ |
| 3 | 480*854 | Z30071-ZC | 42.70*74.70*2.45 | 37.44*66.61 | IPS | MIPI/I2C | 350 | CTP | -20℃~70℃ |
| 3.4 | 480*480 | Z34004-ZC | 65.72*69.64*2.45 | 60.48*60.48 | IPS | MIPI/I2C | 350 | CTP | -20℃~70℃ |
| 3.5 | 320*240 | Z35008-ZC | 76.78*63.74*3.20 | 70.08*52.56 | IPS | MIPI/I2C | 350 | CTP | -20℃~70℃ |
| 3.5 | 320*480 | Z35015-ZC | 69.36*87.30*3.70 | 48.96*73.44 | IPS | MIPI/I2C | 250 | CTP | -20℃~70℃ |
| 3.5 | 320*480 | Z35017-ZC | 55.46 *83.94*4.25 | 48.96*73.44 | IPS | MCU/SPI+RGB | 250 | CTP | -20℃~70℃ |
| 3.5 | 480*800 | Z35032-ZC | 51.12*86.41*3.38 | 45.36*75.60 | IPS | SPI+RGB/I2C | 350 | CTP | -20℃~70℃ |
| 4 | 720*720 | Z40050-ZC | 84.8*84.8*3.85 | 71.928*71.928 | IPS | MIPI/I2C | / | CTP | -20℃~70℃ |
| 4 | 480*480 | Z40053-ZC | 84.8*84.8*3.8 | 71.856*70.176 | IPS | MIPI/I2C | 350 | CTP | -20℃~70℃ |
| 4.3 | 480*272 | Z43016-ZC1 | 105.5*67.2*4.7 | 95.04*53.86 | IPS | RGB/I2C | 450 | CTP | -30℃~85℃ |
| 4.3 | 480*272 | Z43016-ZC2 | 105.5*67.2*4.75 | 95.04*53.86 | IPS | RGB/I2C | 450 | CTP | -30℃~85℃ |
| 4.3 | 480*272 | Z43026-ZC | 126.04*84.86*6.75 | 95.04*53.86 | IPS | RGB/I2C | 450 | CTP | -20℃~70℃ |
| 5 | 720*1280 | Z49406-ZC | 67.56*122.35*3.29 | 62.10*110.40 | IPS | MIPI/I2C | 380 | CTP | -20℃~70℃ |
| 5 | 720*1280 | Z49420-ZC | 69.74*125.53*3.18 | 63.72*113.28 | IPS | MIPI/I2C | 400 | CTP | -20℃~70℃ |
| 5 | 720*1280 | Z49421-ZC | 67.56*122.35*3.28 | 63.72*113.28 | IPS | MIPI/I2C | 380 | CTP | -20℃~70℃ |
| 5.5 | 720*1280 | Z55236-ZC | 80*143*3.62 | 68.04*120.96 | IPS | MIPI/I2C | 450 | CTP | -20℃~70℃ |
| 5.5 | 720*1280 | Z55240-ZC | 79.24*129.66*3.68 | 68.04*120.96 | IPS | MIPI/I2C | 400 | CTP | -20℃~70℃ |
| 5.5 | 720*1280 | Z55290-ZC | 80*143*3.62 | 68.04*120.96 | IPS | MIPI/I2C | 420 | CTP | -20℃~70℃ |
| 5.5 | 720*1280 | Z55292-ZC | 80*143*3.62 | 68.04*120.96 | IPS | MIPI/I2C | 1200 | CTP | -20℃~70℃ |
| 5.7 | 640*480 | Z57011-ZC | 127.03*98.5*7.95 | 115.2*86.4 | IPS | MIPI/I2C | 400 | CTP | -20℃~70℃ |
| 6.86 | 480*1280 | Z686006-ZC | 65.82*171.79*2.60 | 60.22*160.59 | IPS | 350MIPI/I2C | 350 | CTP | -20℃~70℃ |
| 6.9 | 720*1440 | Z69001-ZC | 85.80*171.80*3.97 | 78.02*156.04 | IPS | MIPI/I2C | 450 | CTP | -20℃~70℃ |
| 7 | 600*1024 | Z70069-ZC | 164 *99*4.34 | 154.21*85.92 | IPS | RGB/I2C | 480 | CTP | -20℃~70℃ |
| 7 | 1024*600 | Z70078-ZC | 177.1*108.8*4.7 | 154.21*85.92 | IPS | MIPI/I2C | 350 | CTP | -20℃~70℃ |
| 7 | 800*480 | Z70082-ZC | 165.4*104.59*7.53 | 152.40*91.44 | IPS | RGB/I2C | 350 | CTP | -20℃~70℃ |
| 7 | 1280*800 | Z70083-ZC | 161.0*107.0*2.5 | 149.76*93.6 | IPS | LVDS/I2C | 1000 | CTP | -20℃~70℃ |
| 7 | 1024*600 | Z70103-ZC | 164.86*99.96*4.995 | 154.21*85.92 | IPS | RGB/I2C | 370 | CTP | -20℃~70℃ |
| 7 | 720*1280 | Z70085-ZC | 97.80*235.35*4.15 | 86.94*154.56 | IPS | MIPI/I2C | 330 | CTP | -20℃~70℃ |
| 8 | 800*1280 | Z80015-ZC | 121.43*220.85*4.71 | 107.64*172.22 | IPS | MIPI/I2C | 280 | CTP | -20℃~70℃ |
| 8 | 800*1280 | Z80017-ZC | 127*95*199.1*4.45 | 107.64*172.22 | IPS | MIPI/I2C | 400 | CTP | -20℃~70℃ |
| 8 | 800*1280 | Z80026-ZC2 | 137.47*198.20*4.66 | 107.64*172.22 | IPS | MIPI/I2C | 620 | CTP | -20℃~70℃ |
| 8 | 800*1280 | Z80029-ZC | 121.84*198.34*3.87 | 107.64*172.224 | IPS | MIPI/I2C | 380 | CTP | -20℃~70℃ |
| 8 | 800*1280 | Z80032-ZC | 137.47*198.*4.66 | 107.64*172.224 | IPS | MIPI/I2C | 400 | CTP | -20℃~70℃ |
| 8 | 800*1280 | Z80033-ZC | 121.84*198.34*4.26 | 107.64*172.224 | IPS | MIPI/I2C | 400 | CTP | -20℃~70℃ |
| 8 | 1280*800 | Z80036-ZC | 132.6*193.6*3.8 | 172.22*107.64 | IPS | LVDS/I2C | 330 | CTP | -20℃~70℃ |
| 10.1 | 800*1280 | Z101020-ZC | 167.36*248.58*4.95 | 135.36*216.58 | IPS | MIPI/I2C | 350 | CTP | -20℃~70℃ |
| 10.1 | 800*1280 | Z101028-ZC3 | 159.20*244.90*2.85 | 135.36*225.60 | IPS | MIPI/I2C | 350 | CTP | -20℃~70℃ |
| 10.1 | 800*1280 | Z101029-ZC2 | 143.05*228.55*2.60 | 135.36*216.58 | IPS | MIPI/I2C | 500 | CTP | -20℃~70℃ |
| 10.1 | 1280*800 | Z101033-ZC | 228.6*149.2*3.0 | 216.96*135.6 | IPS | LVDS/I2C | 400 | CTP | -20℃~70℃ |
Responsive Touch Sensing: TFT capacitive touch screens are highly responsive to touch, enabling smooth and accurate interactions. This feature enhances user experiences and ensures precise input recognition.
Multi-Touch Support: These multi-point touch panels support multi-touch gestures, allowing users to perform actions like pinch-to-zoom and swipe effortlessly. Multi-touch functionality enhances the versatility and functionality of the device.
Excellent Clarity and Color Accuracy: TFT (Thin-Film Transistor) technology provides vibrant colors and excellent clarity, making the display visually appealing. This is crucial for applications where color accuracy and image quality are paramount.
Durability: Capacitive touch screen panels are known for their durability. They are resistant to wear and tear, ensuring a longer lifespan, making them ideal for devices exposed to frequent use.
No Pressure Required: Unlike resistive touch screen, which require pressure for input recognition, LCD capacitive screens respond to the slightest touch. This light touch operation reduces user fatigue and provides a more natural interaction.
Widespread Application: Capacitive touchscreen displays are versatile and suitable for a wide range of applications, including smartphones, tablets, POS systems, industrial control panels, and interactive kiosks.
Las pantallas táctiles capacitivas TFT son la opción estándar para los teléfonos inteligentes y tabletas modernos, lo que permite a los usuarios navegar e interactuar con sus dispositivos sin problemas.

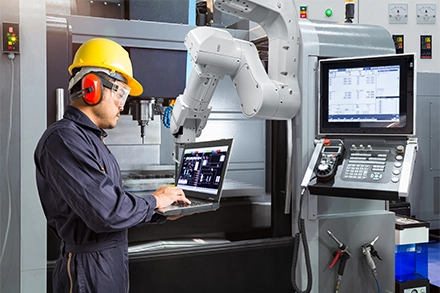

En entornos industriales, estas pantallas táctiles capacitivas TFT se utilizan para controlar y monitorear maquinaria, ofreciendo una interfaz robusta y confiable para los operadores.

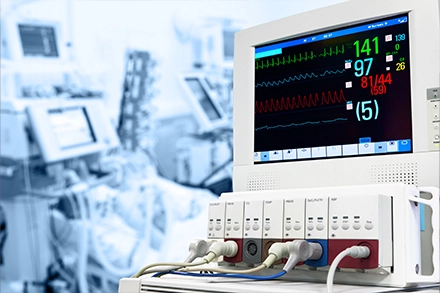

Las pantallas capacitivas TFT se utilizan en varios dispositivos médicos, incluidos sistemas de monitoreo de pacientes, equipos de diagnóstico y tabletas médicas, lo que garantiza una entrada precisa y facilidad de uso.
Los paneles y dispositivos de control del hogar inteligente utilizan pantallas táctiles capacitivas de superficie para permitir a los propietarios administrar la iluminación, la seguridad y otros sistemas de automatización del hogar.
Las pantallas táctiles capacitivas se utilizan en máquinas de juego, desde máquinas tragamonedas en casinos hasta juegos de arcade interactivos.

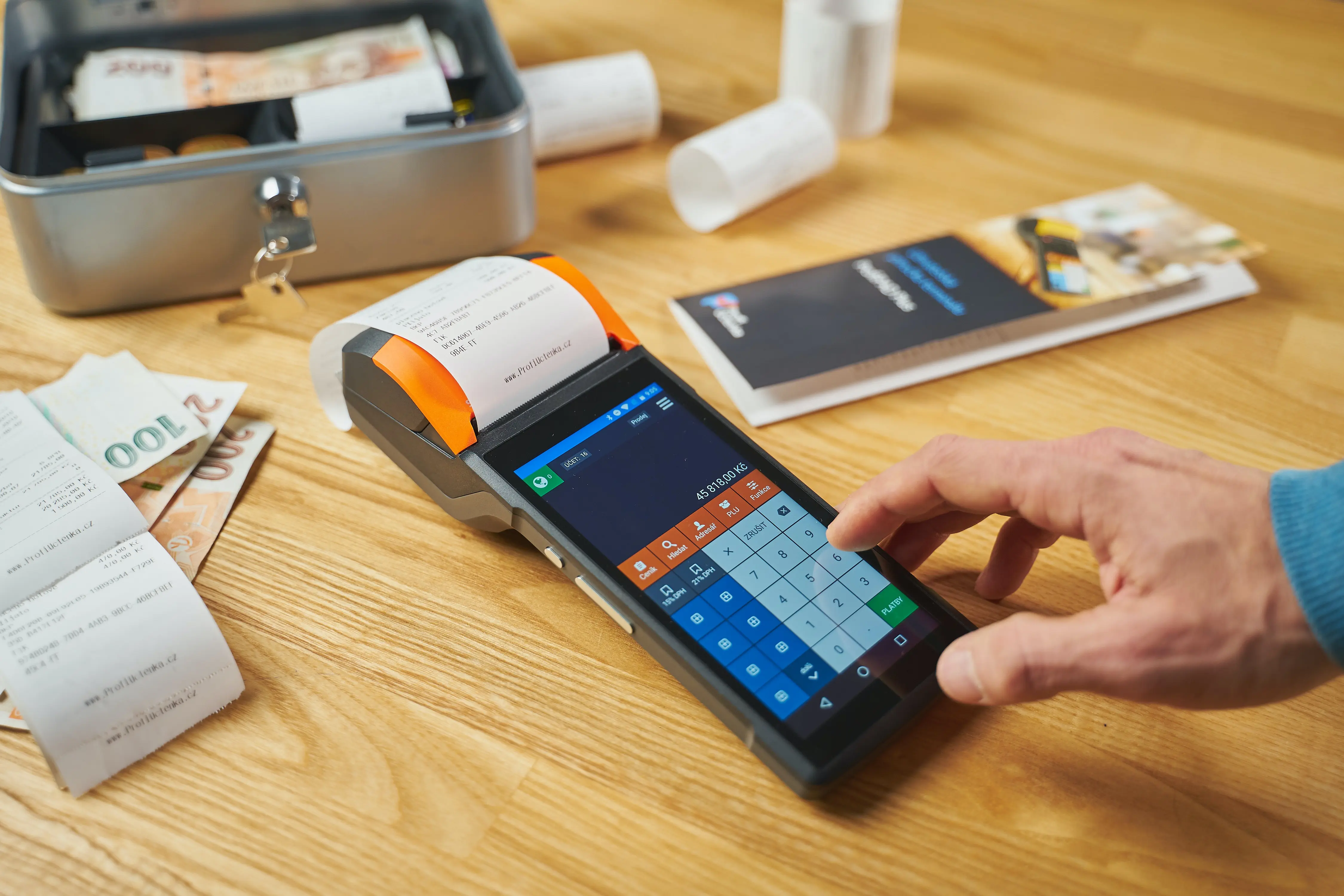

En el comercio minorista y la hostelería, las pantallas táctiles capacitivas están integradas en los sistemas POS, optimizando las transacciones y mejorando el servicio al cliente.
La tecnología Zhunyi presta atención a la calidad y el servicio. Bienvenido a visitarnos y unirse para un futuro próspero.
