Tamaño: 10,1 pulgadas
Resolución: 800*1280
Interfaz LCD: MIPI
Interfaz táctil: IIC
Panel táctil: capacitivo
Driver IC: JD9365DA
Controlador táctil: GT9271
Ángulo de visión: IPS
Tipo de suministro: Fábrica/Fabricante
Certificación: ISO9001, IATF16949, ROHS, REACH

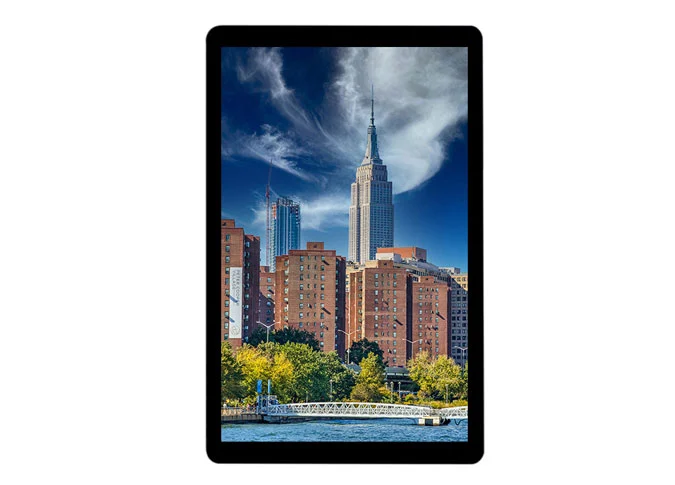

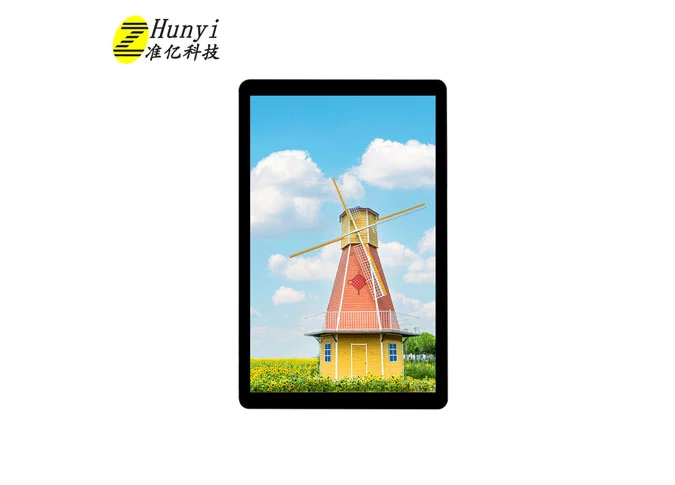

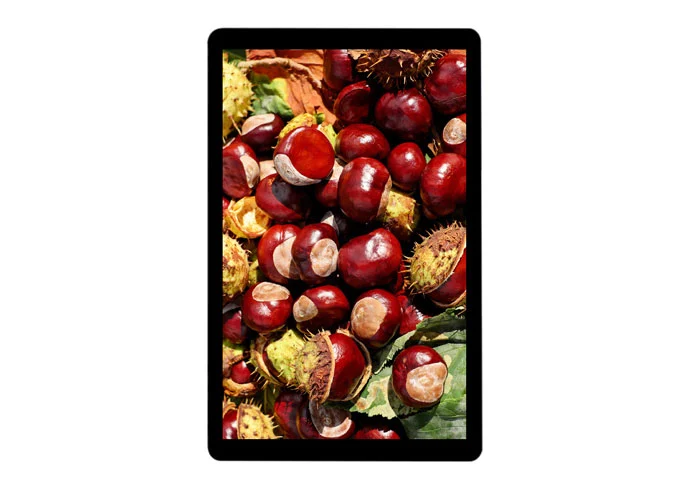

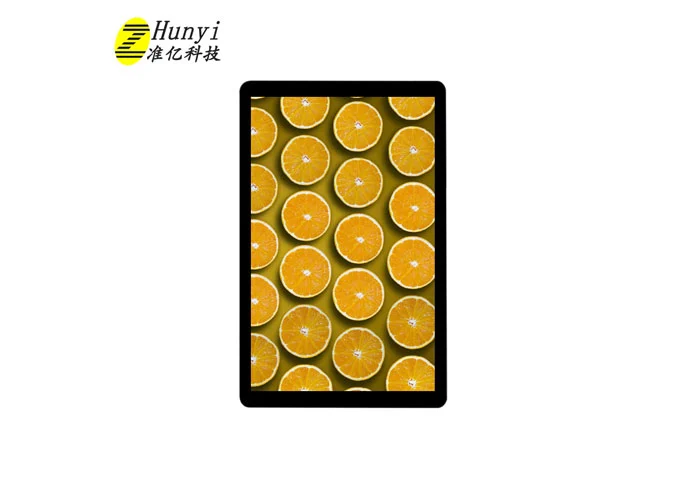

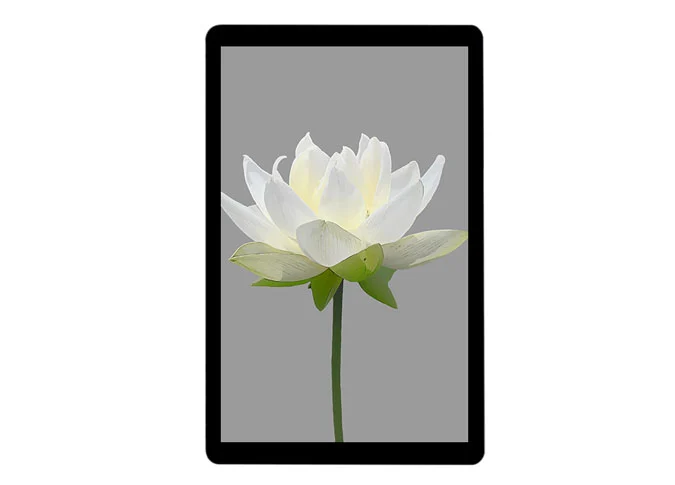

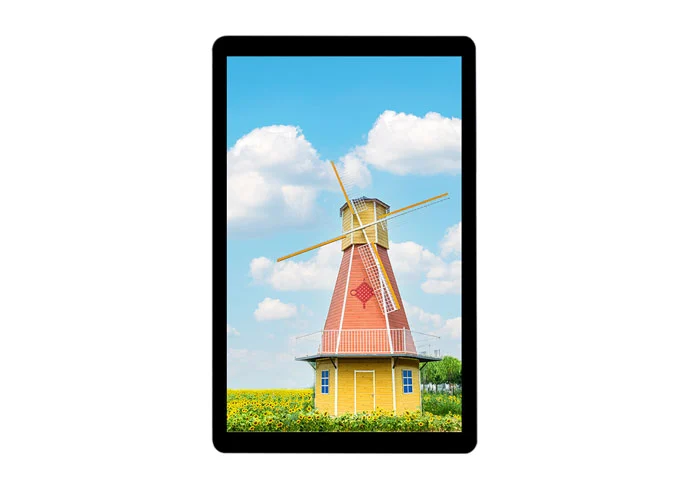

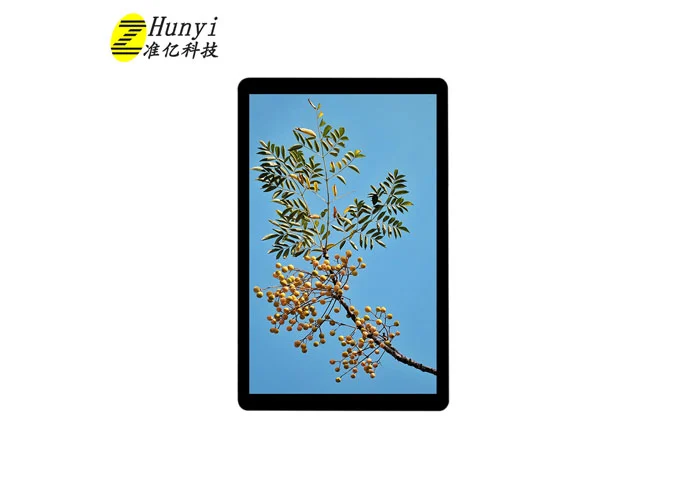

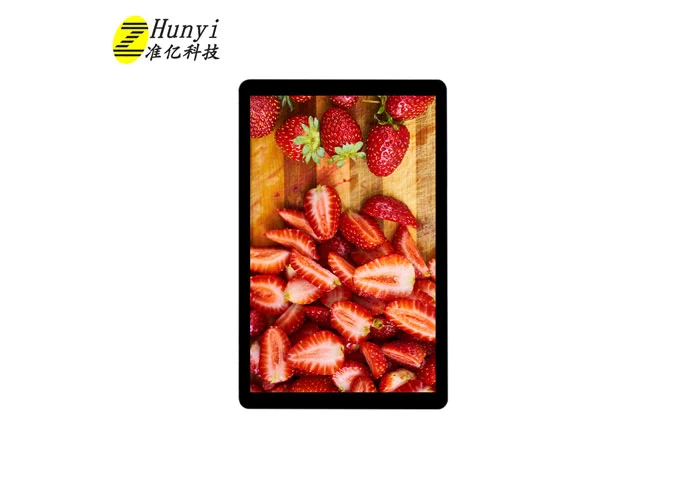

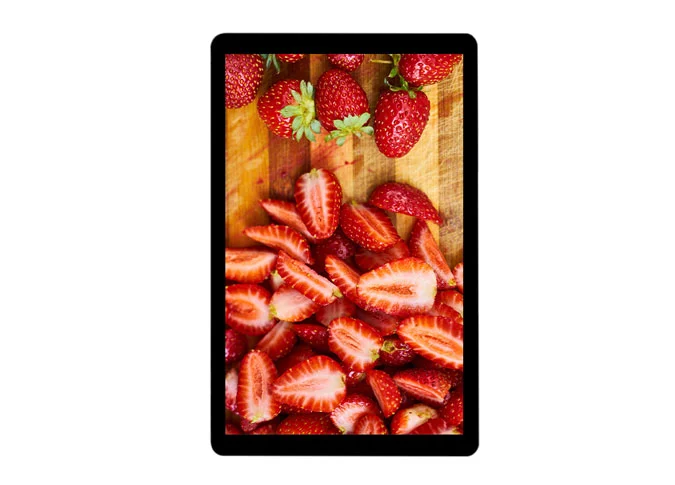

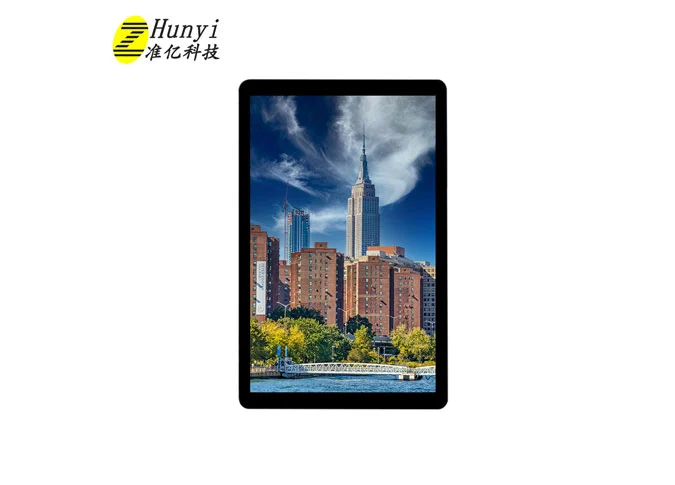

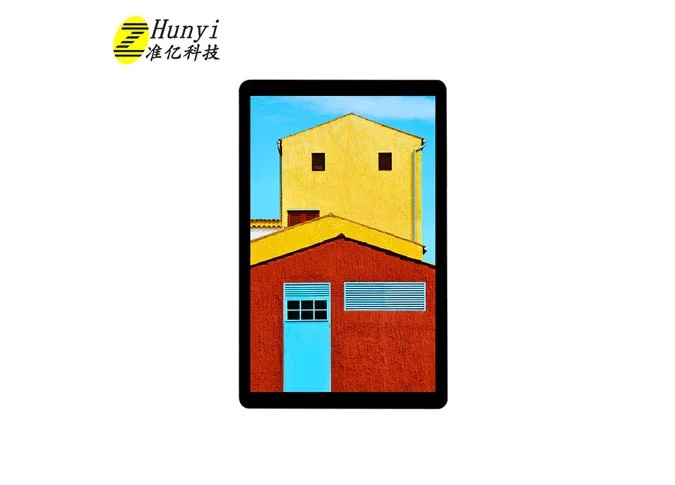

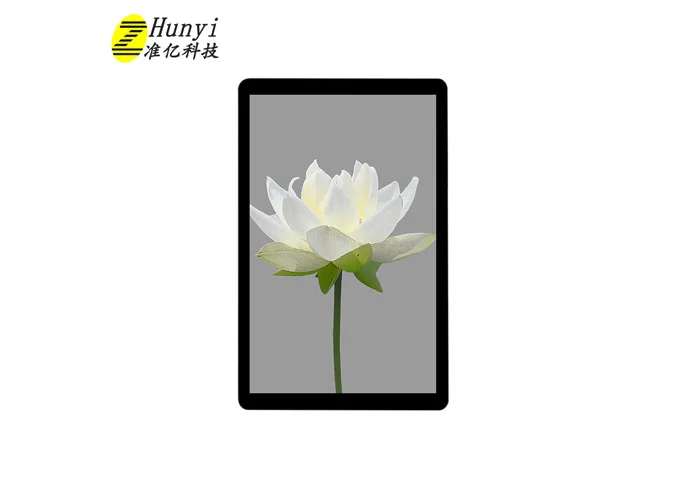

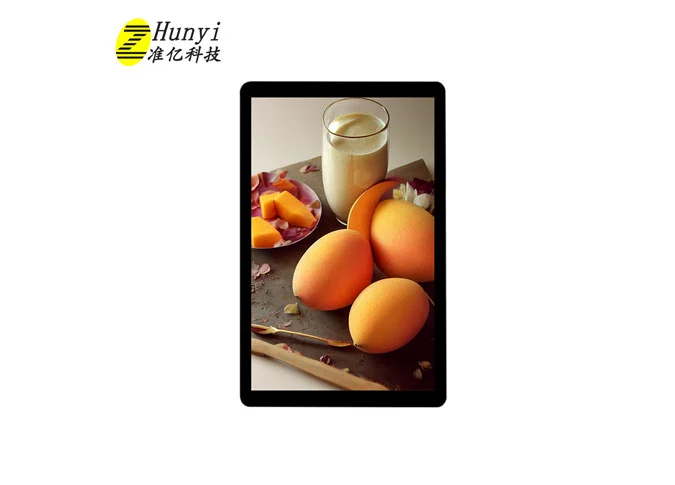

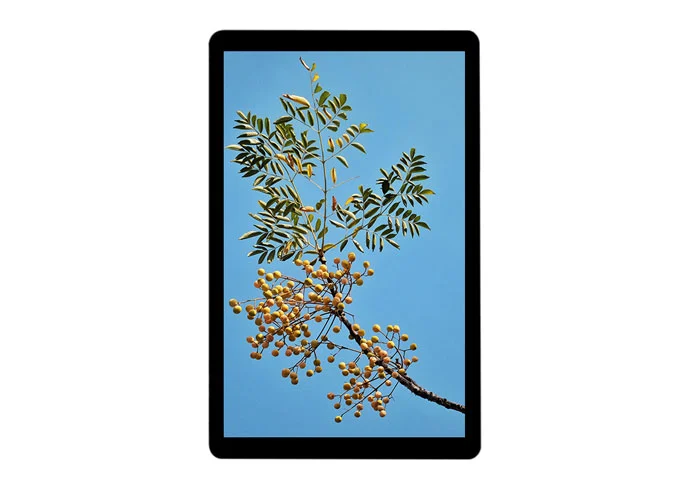

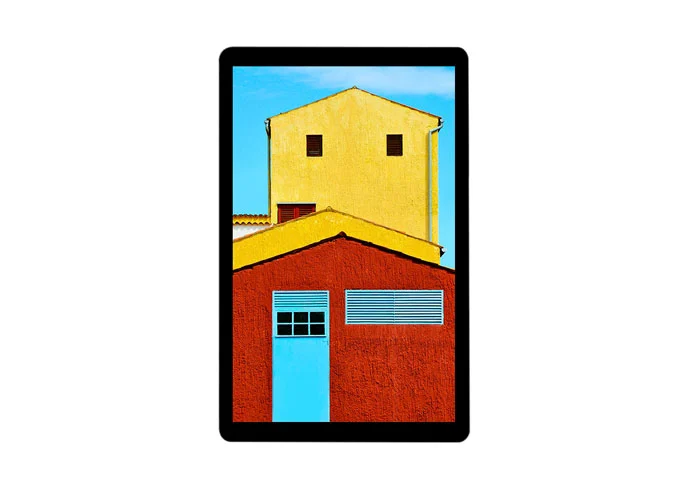

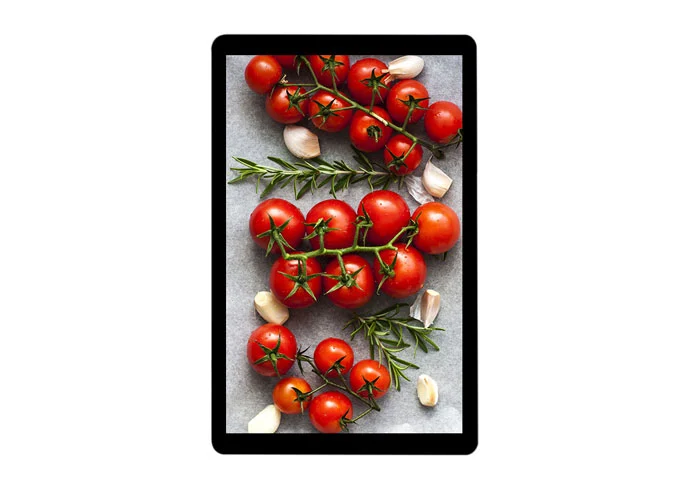

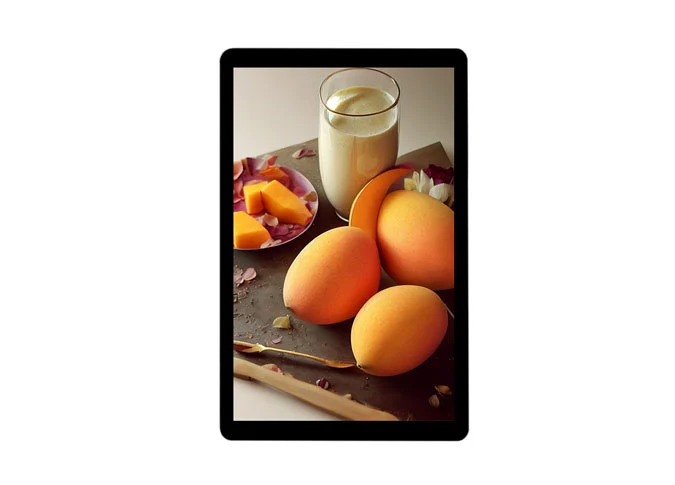

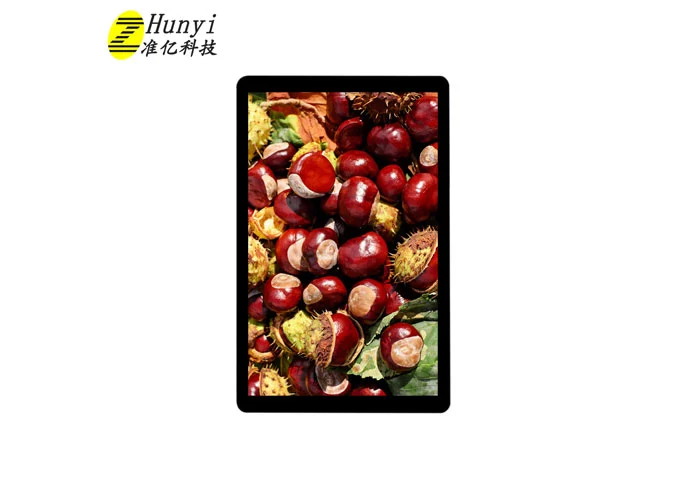

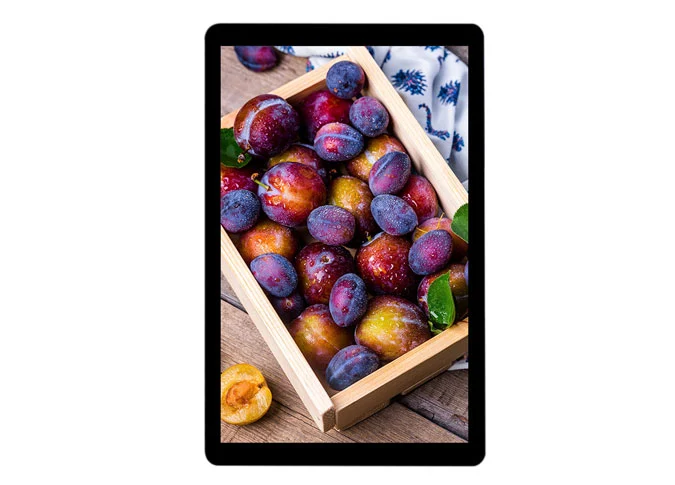

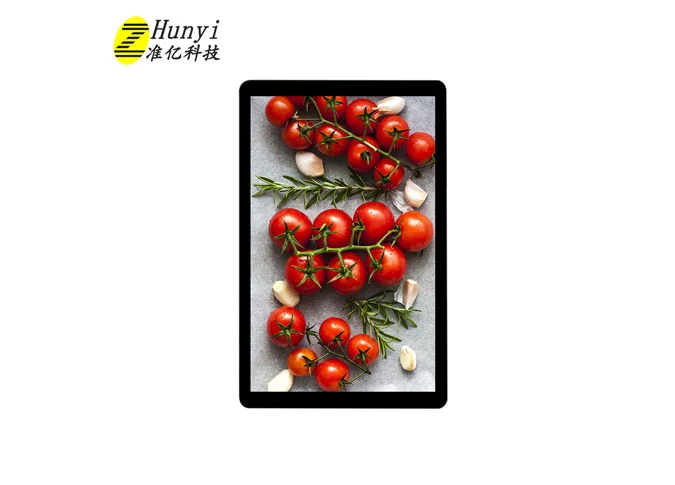

Z101029-ZC2 es una pantalla de cristal líquido (LCD) de transistor de película delgada (TFT) de matriz activa de color con panel táctil capacitivo, QVGA 800*1280. Esta pantalla táctil TFT está incorporada JD9365DA LCD controlador IC y GT9271 controlador táctil. Este a-Si TFT LCD táctilChina Módulo LCDVienen con interfaz MIPI e I2C. Multi-punto táctil.
Si usted tiene un requisito especial, como la unidad IC, interfaz, FPC, panel táctil, luz de fondo, brillo, color, etc, podemos proporcionarChina LCD personalizadoPara ti.
Como unMódulo LCD fábrica, Nuestra fábrica lleva a cabo 9001 ISO: 2015 e IATF16949: 2016 sistema estándar de calidad estrictamente, pasó toda la pantalla LCD ROHS, certificación REACH.
Esta pantalla táctil LCD de 10,1 pulgadas es ampliamente utilizada en el timbre médico, visual, expendedora, mechine de aprendizaje, ventilador, osciloscopio, cocina, electrodomésticos, hogar inteligente, industria, portátil, al aire libre, e-bike, vehículo, proyector, impresora 3D, dispositivo de audio, robot, báscula eléctrica, navegación, salpicadero, Publicidad ascensor, ordenador portátil, HMI, educación, etc.
No. | Item | Specification | Unit |
1 | Display Size (Diagonal) | 10.1 | inch |
2 | Display Resolution | 800 (H) × RGB × 1280 (V） | pixels |
3 | Pixel Pitch | 56.4 (H) × 169.2 (V） | um |
4 | LCM Outline Dimension (Without FPC） | 143.05 (W) × 228.55 (H) × 2.60 (T) | mm |
5 | LCD Outline Dimension | 139.36 (W) × 225.58 (H) × 0.8 (T) | mm |
6 | TLCM Outline Dimension (Without FPC） | 153.85 (W) × 243.85 (H) × 4.33 (T) | mm |
7 | LCD Active Area | 135.36 (W) × 216.58 (H) | mm |
8 | View Direction (Gray Inversion) | FULL VIEW | - |
9 | Driver IC | JD9365DA-H3 | - |
10 | Pixel Arrangement | RGB-Stripe | - |
11 | Display Mode | Normal Black | - |
12 | Pixel driving Element | a-Si TFT | - |
13 | LCD Transmittance | Typ.: 5.41% Min: 4.65% | - |
14 | LCD Contrast Ratio | Typ.: 1000 Min: 800 | - |
15 | FPC Version | Z101029-PR03H V1 | - |
16 | Interface | MIPI | - |
17 | TP Interface | I2C | |
18 | Operating Temperature | -20°C~ 70°C | - |
19 | Storage Temperature | -30°C~ 80°C | - |
20 | Backlight Arrangement | LED/9 Series 4 Parallel (36 lights in total) | - |
21 | Luminance | Typ.: 500 | nit |
22 | Weight | 0.306 | kg |
PIN NO. | PIN DEF. | FUNCTION DESC. |
1 | NC | No Connection |
2-3 | VDDIN | POWER SUPPLY (3.3V） |
4 | NC | No Connection |
5 | NC(LCD-RST) | No Connection (LCM RESET PIN) |
6 | NC | No Connection |
7 | GND | Ground |
8 | MIPI_0N | Negative MIPI differential data input |
9 | MIPI_0P | Positive MIPI differential data input |
10 | GND | Ground |
11 | MIPI_1N | Negative MIPI differential data input |
12 | MIPI_1P | Positive MIPI differential data input |
13 | GND | Ground |
14 | MIPI_CKN | Negative MIPI differential CLOCK input |
15 | MIPI_CKP | Positive MIPI differential CLOCK input |
16 | GND | Ground |
17 | MIPI_2N | Negative MIPI differential data input |
18 | MIPI_2P | Positive MIPI differential data input |
19 | GND | Ground |
20 | MIPI_3N | Negative MIPI differential data input |
21 | MIPI_3P | Positive MIPI differential data input |
22 | GND | Ground |
23-24 | NC | No Connection |
25 | GND | Ground |
26-27 | NC | No Connection |
28 | ID0 | LCM ID PIN |
29 | ID1 | LCM ID PIN |
30 | GND | Ground |
31-32 | LEDK | POWER SUPPLY- FOR BACKLIGHT CATHODE |
33 | TP-GND | Ground |
34 | TP-SDA | TP I2C data (SDA) data input (MOSI) |
35 | TP-SCL | TP I2C clock (SCL) clock (SCLK) |
36 | TP-INT | TP Interrupt PIN |
37 | TP-RESET | TP Reset PIN |
38 | TP-VDD | TP POWER SUPPLY |
39-40 | LEDA | POWER SUPPLY- FOR BACKLIGHT ANODE |
RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on. | ||
PIN NO. | PIN DEF. | FUNCTION DESC. |
1 | GND | Ground |
2 | SDA(1.8V) | TP I2C data (SDA) data input (MOSI)(1.8V) |
3 | SCL(1.8V) | TP I2C clock (SCL) clock (SCLK)(1.8V) |
4 | INT(1.8V) | TP Interrup PIN (1.8V) |
5 | RST(1.8V) | TP Reset PIN (1.8V) |
6 | VDD(2.8V) | TP POWER SUPPLY (2.8V) |

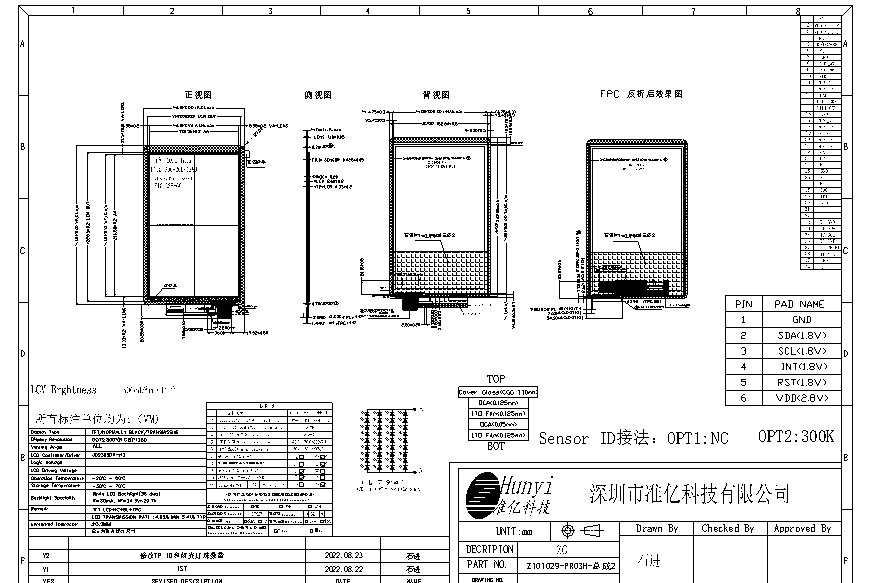

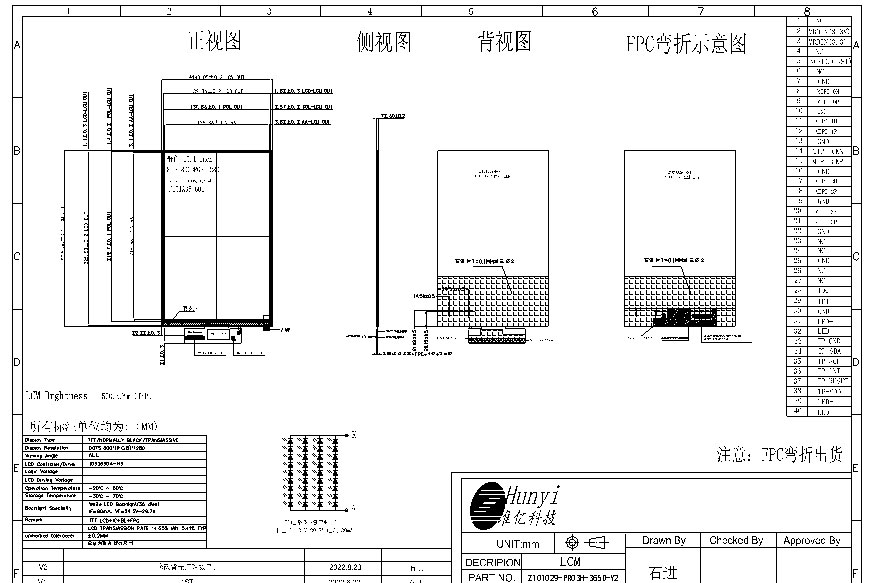

3.1 LCM
3.2 TLCM
