Pantalla horizontal Z101060-P50 10,1 pulgadas TFT LCD 1024*600 QVGA 50PIN RGB interfaz

  • Tamaño: 10,1 pulgadas

  • Resolución: 1024*600

  • Área activa: 222,72*125,28mm

  • Interfaz: RGB

  • Ángulo de visión: IPS

  • Brillo: 450 cd/m²

  • Panel táctil: Soporte CTP/RTP

  • Tipo de suministro: Fábrica/Fabricante

  • Certificación: ISO9001, IATF16949, ROHS, REACH

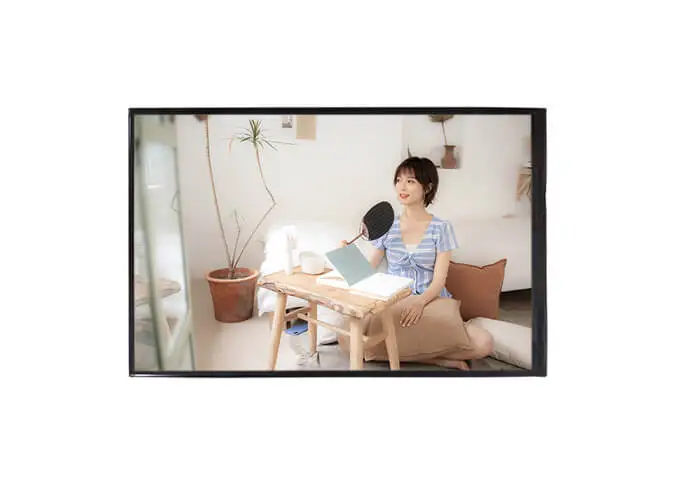

10 1 lcd screen
10 1 lcd screen

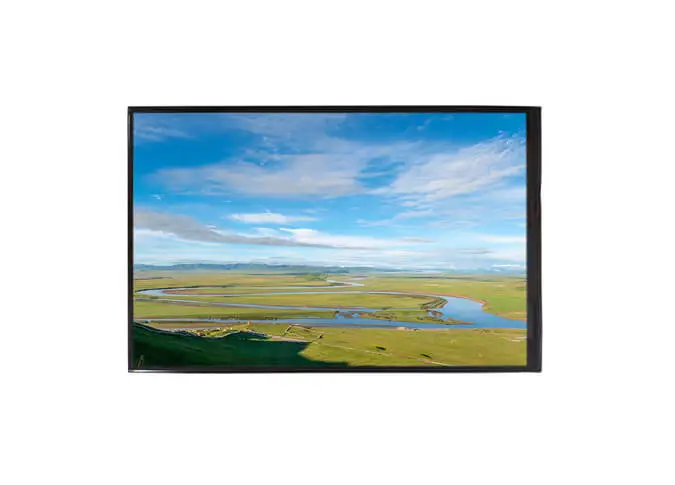

10 1 inch lcd screen
10 1 screen

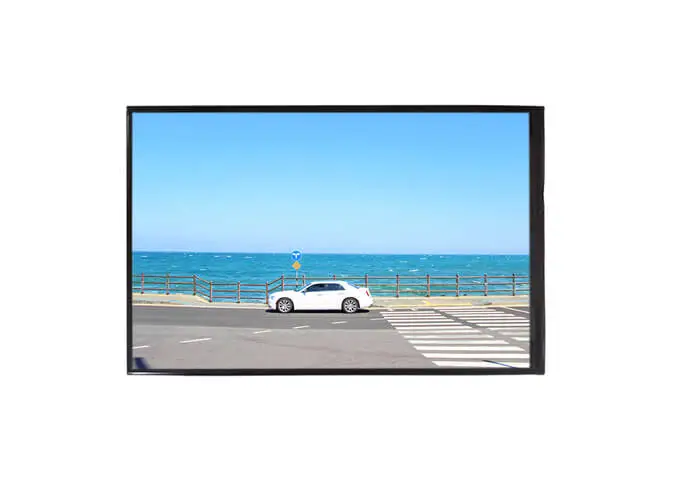

10 1 tft screen

Descripción general de Z101060-P50 pantalla horizontal 10,1 pulgadas TFT LCD 1024*600 QVGA 50PIN RGB interfaz

1

Z101060 es una pantalla de cristal líquido (LCD) de transistor de película delgada (TFT) de matriz activa de color con resolución de 1024*600. La técnica IPS (conmutación en el plano) hace que este módulo LCD de 10,1 tenga un ángulo de visión más amplio. Este módulo a-Si TFT LCD viene con interfaz RGB, brillo 450cd/m².

2

Si usted tiene requisitos especiales, como unidad IC, interfaz, FPC, panel táctil, brillo, color, retroiluminación, panel táctil, etc, podemos proporcionarMódulo de pantalla LCD personalizadoPara ti.

3

Como unPantalla LCD fábricaEn China, nuestra fábrica lleva a cabo 9001 ISO: 2015 e IATF16949: 2016 sistema estándar de calidad estrictamente, pasó toda la pantalla LCD ROHS, certificación REACH.

4

La pantalla LCD de 10,1 pulgadas es ampliamente utilizada en médicos, timbre visual, expendedora, aprendizaje mecánico, ventilador, osciloscopio, cocina, electrodomésticos, hogar inteligente, industria, portátil, al aire libre, e-bike, vehículo, proyector, impresora 3D, dispositivo de audio, robot, báscula eléctrica, navegación, salpicadero, Publicidad ascensor, ordenador portátil, HMI, educación, etc.

General Information of Z101060-P50 Horizontal Display 10.1 Inch TFT LCD 1024*600 QVGA 50PIN RGB Interface


Item

Specification

Unit

Screen Size

10.1 inches

Diagonal

Number of Pixel

1024 RGB (H) x 600 (V)

Pixels

Display Area

222.72 (H) x 125.28 (V)

mm

Pixel Pitch

0.2175 (H) x 0.2088 (V)

mm

Outline Dimension

235x 143x6.6 (Typ)

mm

Pixel Arrangement

RGB Vertical stripe

――

Display Mode

Normally Black/Transmissive

――

Viewing Direction

ALL VIEWING

――

Display Color

16.7M

――

Luminance(cd/m2)

450(TYP)

nit

Contrast Ratio

800

――

Surface Treatmen

Anti-glare

――

Interface

RGB


Back-light

LED Side-light type

――

Drive IC

――


Operation Temperature

-20~70

Storage Temperature

-30~80

Weight

――

g


Pin No.

Symbol

I/O

Function

1-2

VLED+

P

LED back light(Anode)

3-4

VLED-

P

LED back light(Cathode)

5

GND

P

Ground.

6

VCOM

P

Common voltage

7

VDD

P

Power supply

8

MODE

I

DE/YSNC mode select

9

DE

I

Data enable pin

10

VSYNC

I

Frame sync signal

11

HSYNC

I

Line sync signal

12-19

B7~B0

I

Blue data bus

20-27

G7~G0

I

Green data bus

28-35

R7~R0

I

Red data bus

36

GND


Ground.

37

DCLK

I

Data clock

38

GND

P

Ground.

39

L/R

I

Right/Left sequence control of source driver

40

U/D

I

Gate driver Up/Down scan control of gate driver

41

VGH

I

Gate on voltage

42

VGL

P

Gate off voltage

43

AVDD

P

power for analog circuit

44

RESET

I

Chip reset pin

45

NC

-

No connection.

46

VCOM

P

Common voltage

47

DITHB

I

Dithering function

48

GND

P

Ground

49-50

NC

-

No connection.
