Tamaño: 12,3 pulgadas
Resolución: 1920*720
Área activa: 292.032*109.512mm
Interfaz: LVDS
Ángulo de visión: IPS
Brillo: 1000 cd/m²
Panel táctil: Soporte CTP/RTP
Tipo de suministro: Fábrica/Fabricante
Certificación: ISO9001, IATF16949, ROHS, REACH

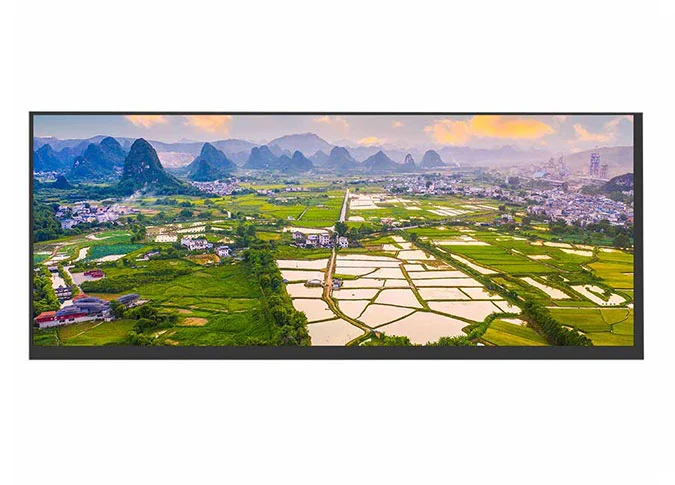

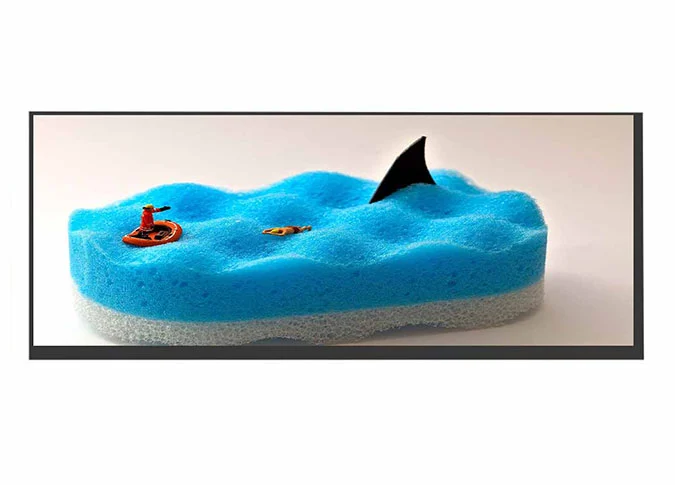

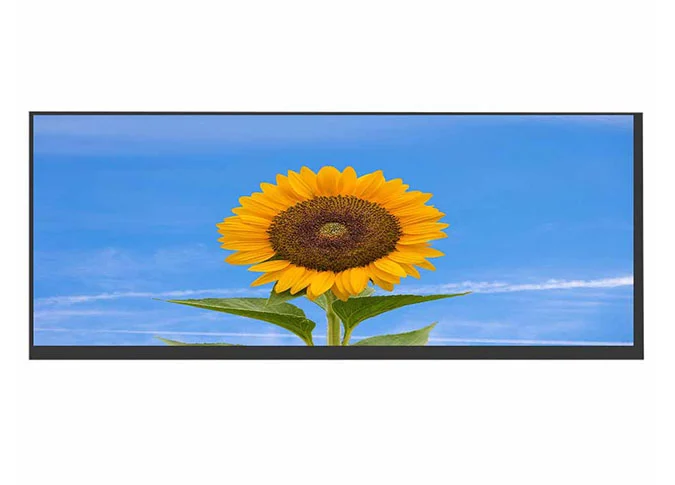

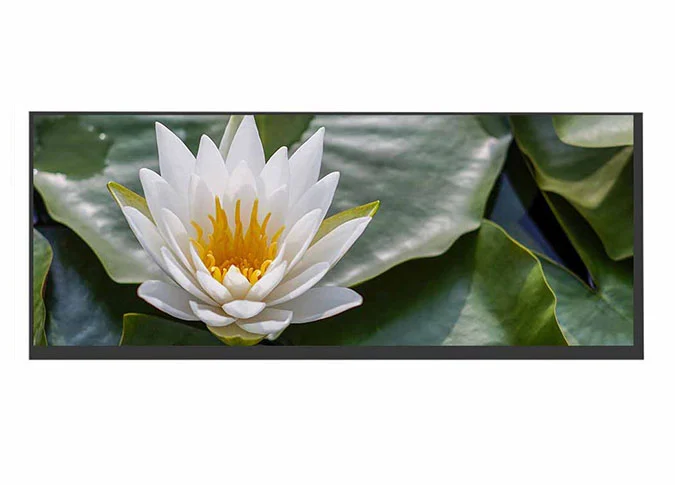

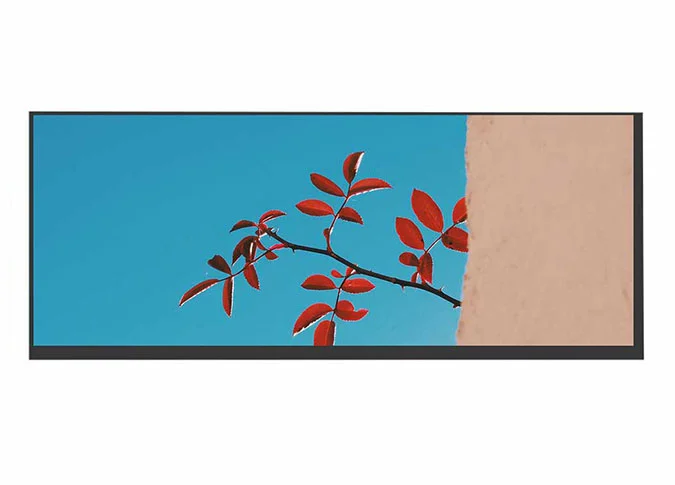

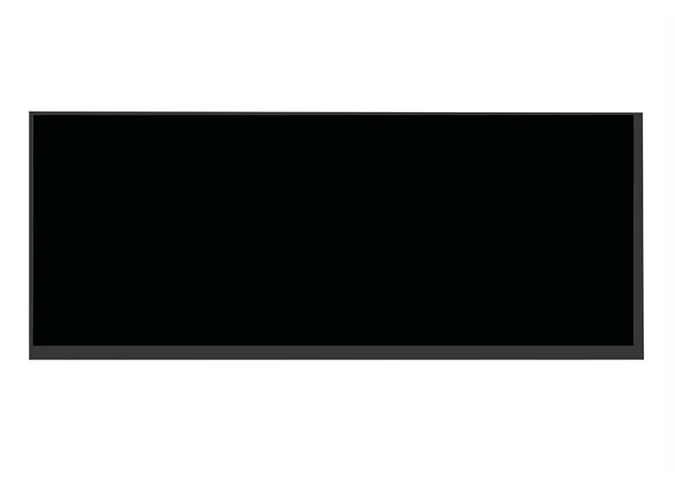

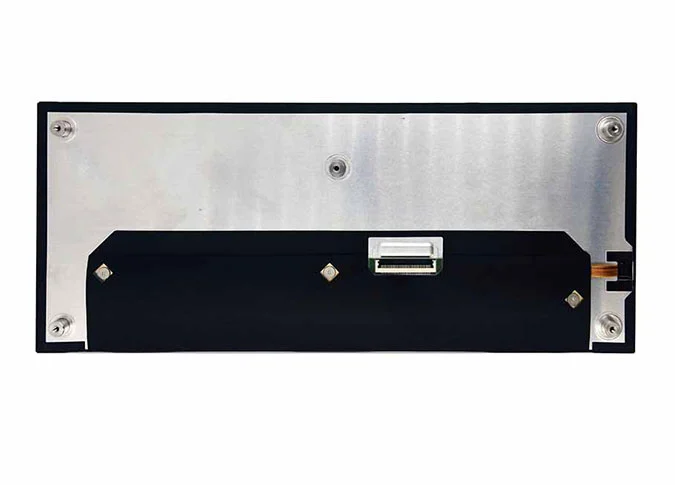

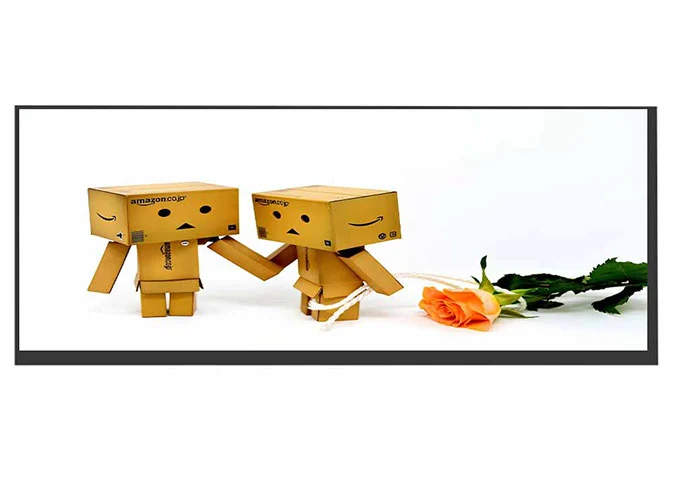

Z123003 es una pantalla de cristal líquido (LCD) de transistor de película delgada (TFT) de matriz activa de color con resolución de 1920*720. La técnica IPS (conmutación en el plano) hace que este módulo LCD de 12,3 tenga un ángulo de visión más amplio. Este módulo a-Si TFT LCD viene con interfaz LVDS, brillo de 1000cd/m².
Si usted tiene requisitos especiales, como unidad IC, interfaz, FPC, panel táctil, brillo, color, retroiluminación, panel táctil, etc, como unPantalla LCD personalizada fabricante China, También podemos personalizar para usted.
Como unProveedor de pantalla LCD de ChinaNuestra fábrica realiza 9001 ISO: 2015 e IATF16949: 2016 sistema estándar de calidad estrictamente, pasó toda la pantalla LCD ROHS, certificación REACH.
La pantalla LCD de 12,3 pulgadas de alto brillo es ampliamente utilizada en médicos, cocina, electrodomésticos, hogar inteligente, industria, portátil, al aire libre, bicicleta eléctrica, vehículo, proyector, navegación, tablero, publicidad del ascensor, máquina de café, etc.
No. | Item | Specification | Unit |
1 | Display Size (Diagonal) | 12.3 | inch |
2 | Display Resolution | 1920 (H) × RGB × 720 (V） | pixels |
3 | Pixel Pitch | 152.1(H)× 152.1 (V） | um |
4 | LCM Outline Dimension (Without FPC） | 321.6 (W) ×138.8 (H) ×6.15 (T) | mm |
5 | LCD Active Area | 292.032 (W) ×109.512 (H） | mm |
6 | View Direction (Gray Inversion) | FULL VIEW | - |
7 | Driver IC | / | - |
8 | Pixel Arrangement | RGB-Stripe | - |
9 | Display Mode | Normal Black | - |
10 | Pixel Driving Element | a-Si TFT | - |
11 | LCD Transmittance | Typ.: TBD | - |
12 | LCD Contrast Ratio | Typ.: 1100; Min:900 | - |
13 | FPC Version | Z123003-P50 V1 | - |
14 | Interface | LVDS | - |
15 | Operating Temperature | -20°C~ 70°C | - |
16 | Storage Temperature | -30°C~ 80°C | - |
17 | Backlight Arrangement | LED/4 Series 11 Parallel (44 lights in total) | - |
18 | Luminance | Typ.: 400 | nit |
19 | Weight | 0.515 | kg |
PIN NO. | PIN DEF. | FUNCTION DESC. |
1 | GND | Ground |
2 | NC | No connect |
3-4 | VCC | Panel Power |
5-6 | GND | Ground |
7-8 | NC | No connect |
9 | GND | Ground |
10 | O_IN0- | Odd pixel negative LVDS differential clock input |
11 | O_N0+ | Odd pixel positive LVDS differential clock input |
12 | O_IN1- | Odd pixel negative LVDS differential clock input |
13 | O_N1+ | Odd pixel positive LVDS differential clock input |
14 | O_IN2- | Odd pixel negative LVDS differential clock input |
15 | O_N2+ | Odd pixel positive LVDS differential clock input |
16 | O_CK- | Odd pixel negative LVDS differential clock input |
17 | O_CK+ | Odd pixel positive LVDS differential clock input |
18 | O_IN3- | Odd pixel negative LVDS differential clock input |
19 | O_N3+ | Odd pixel positive LVDS differential clock input |
20 | E_IN0- | Even pixel negative LVDS differential clock input |
21 | E_N0+ | Even pixel positive LVDS differential clock input |
22 | E_IN1- | Even pixel negative LVDS differential clock input |
23 | E_N1+ | Even pixel positive LVDS differential clock input |
24 | E_IN2- | Even pixel negative LVDS differential clock input |
25 | E_N2+ | Even pixel positive LVDS differential clock input |
26 | E_CK- | Even pixel negative LVDS differential clock input |
27 | E_CK+ | Even pixel positive LVDS differential clock input |
28 | E_IN3- | Even pixel negative LVDS differential clock input |
29 | E_N3+ | Even pixel positive LVDS differential clock input |
30 | GND | Ground |
31 | NC | No connect |
32 | RESET | Global reset pin, active low. |
33 | STBYB | Standby mode, active low. |
34 | CA3 | Output signal to indicate self protection mode, when DE, HS, VS, DCLK, any of these signals is missing, it will become High. If using this pin, CA3 need to pulled low by an resistor, else, let it floating. |
35 | SCL | Serial interface clock input. (User folating) |
36 | SDA | Serial interface data input/output. (User folating) |
37 | CSB | Serial interface chip enable. (User folating) |
38-39 | GND | Ground |
40 | NC | No connect |
41-43 | LEDA | BL Anode |
44 | NC | No connect |
45-48 | LEDK | BL Cathode |
49 | NTC_A | NTC_Anode |
50 | NTC_K | NTC_Cathode |
RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on. | ||
La tecnología Zhunyi presta atención a la calidad y el servicio. Bienvenido a visitarnos y unirse para un futuro próspero.
