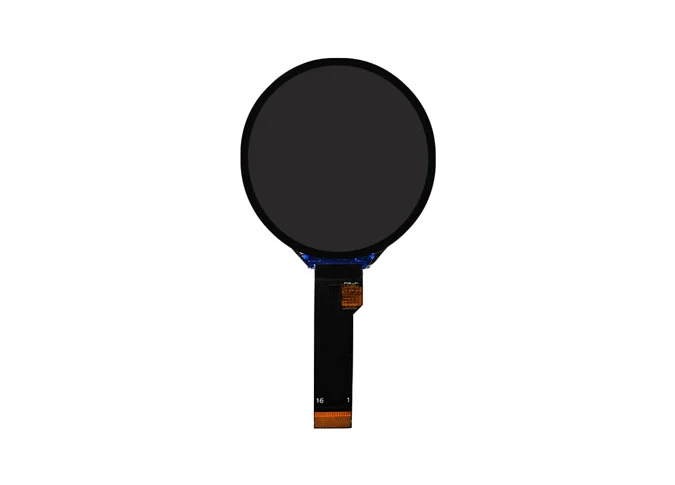

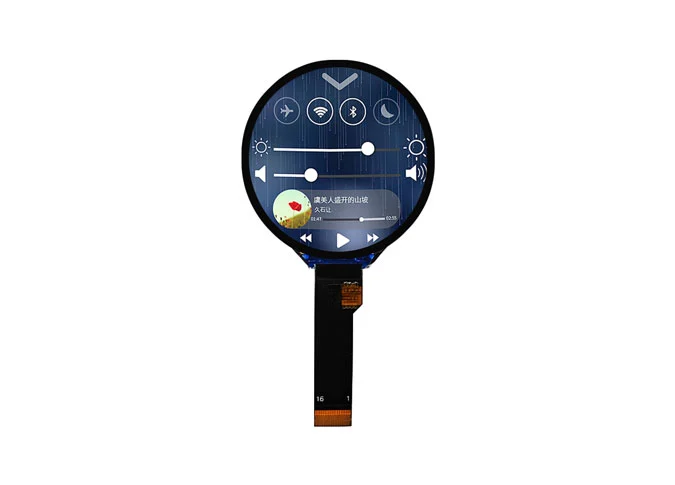

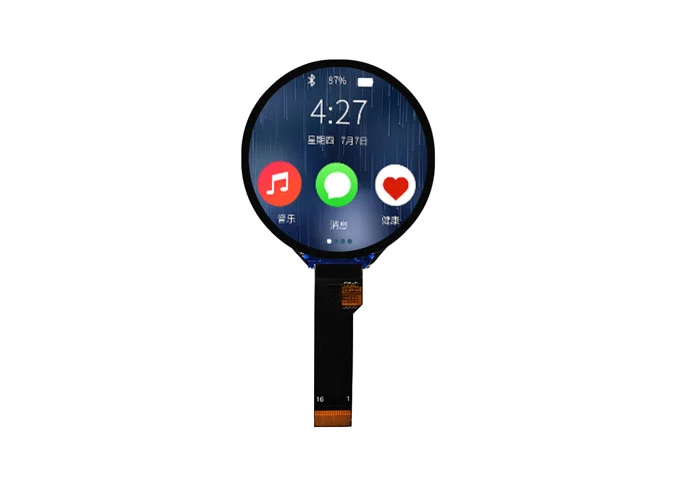

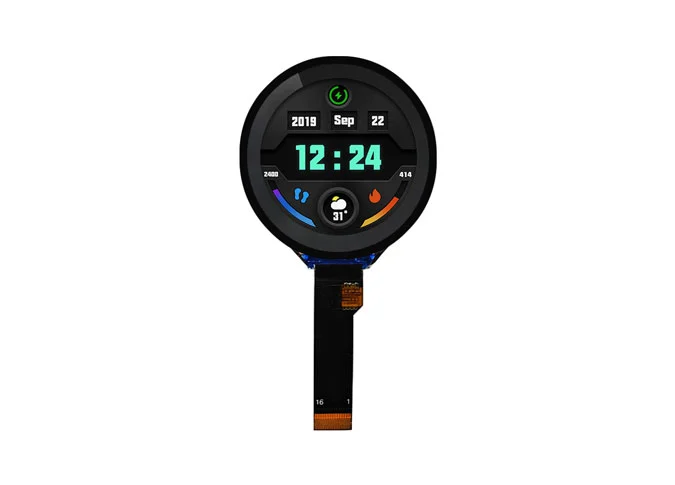

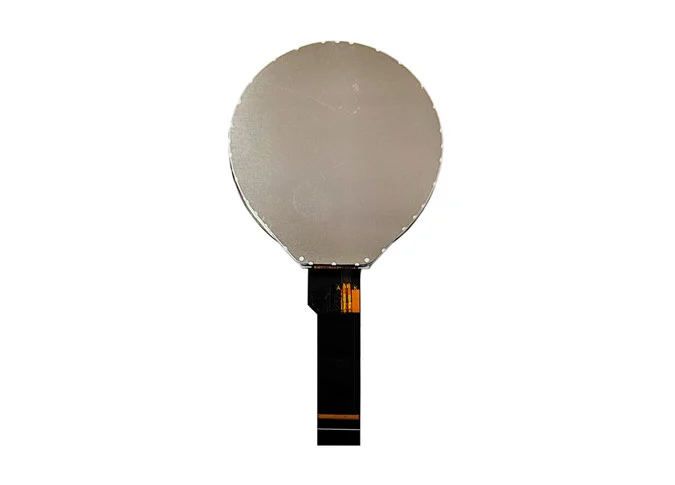

Z16003 pequeña pantalla LCD TFT circular de 1,6 pulgadas ST77903 controlador IC 16PIN SPI interfaz

1

Display Size (Diagonal)

1.6

inch

2

Display Resolution

400(H)  × RGB × 400  (V)

pixels

3

Pixel Pitch

99.6(H) × 99.6  (V)

um

4

LCM Outline Dimension (Without FPC)

42.9 (W) ×45.89 (H) ×1.60 (T)

mm

5

LCD Active Area

39.84  (W)  ×39.84  (H)

mm

6

View Direction (Gray Inversion)

FULL VIEW

-

7

Driver IC

ST77903

-

8

Pixel Arrangement

RGB-Stripe

-

9

Display Mode

Normal Black

-

10

Pixel driving Element

a-Si TFT

-

11

LCD Transmittance

Typ:3.67%    Min:3.3%

-

12

LCD Contrast Ratio

Typ:1000    Min:800

-

13

FPC Version

Z16001-P16X V1

-

14

Interface

SPI

-

15

Operating Temperature

-20°C~ 70°C

-

16

Storage Temperature

-30°C~ 80°C

-

17

Backlight Arrangement

LED/ 1 Series 2 Parallel (2 lights in total)

-

18

Luminance

/

nit

19

Weight

/

kg

1

IM1/NC

Interface    Select    Pin/No Connection

2

IM0/NC

Interface    Select    Pin/No Connection

3

IO2

I/O    PIN

4

IO3

I/O    PIN

5

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

6

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

7

GND

Ground

8

IO1

I/O    PIN

9

SCL

LCM    SPI clock (SCL) clock (SCLK)

10

RESET

LCM    RESET    PIN

11

GND

Ground

12

SDA/IO0

LCM    SPI data (SDA) data input (MOSI)    /    I/O    PIN

13

CS

Chip    Select    PIN

14

TE

Tearing    Effect    PIN

15

VCC

POWER SUPPLY

16

GND

Ground

RESET voltage should be consistent with VDDIO voltage, or there probably is black screen fault when power on.
