Pantalla de monitor de 21,5 pulgadas Z215001 1920x1080 LVDS interfaz TFT LCD de alta velocidad

  • Tamaño: 21,5"

  • Resolución: 1920*1080

  • Interfaz: LVDS

  • Ángulo de visión: IPS

  • Tipo de suministro: Fábrica/Fabricante

  • Certificación: ISO9001,IATF16949,ROHS,REACH

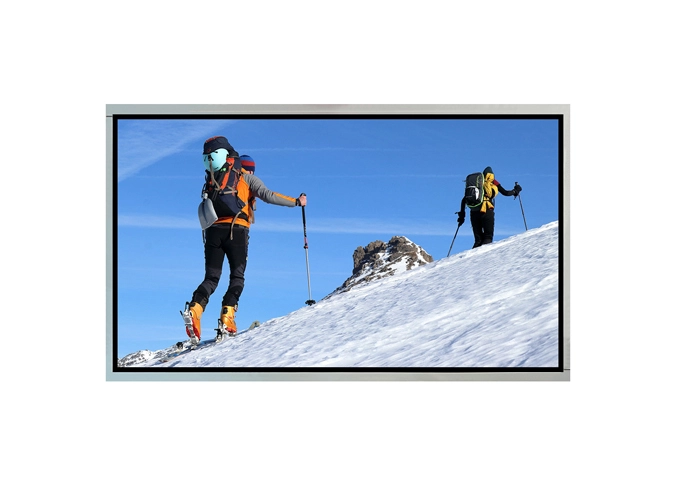

lcd panel tft

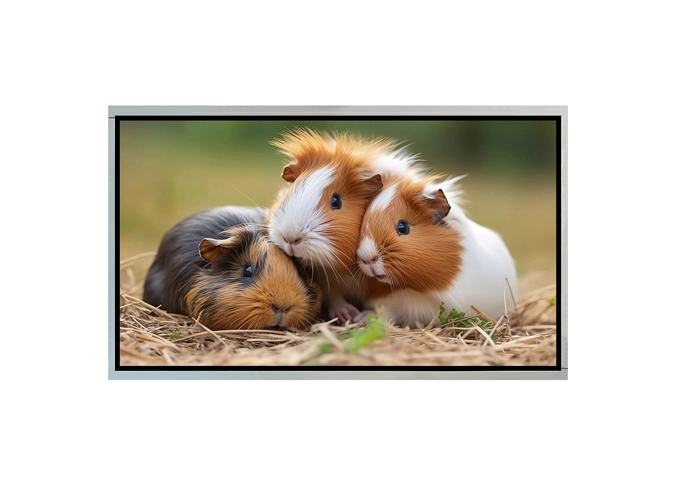

lcd panel tft

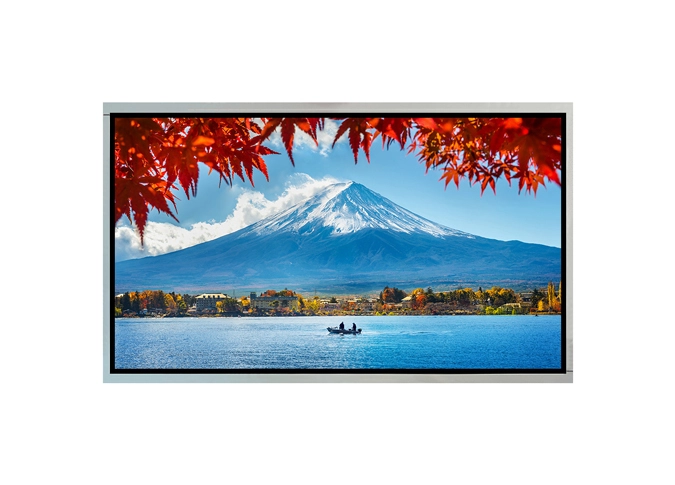

lcd tft display panel
tft lcd display panel

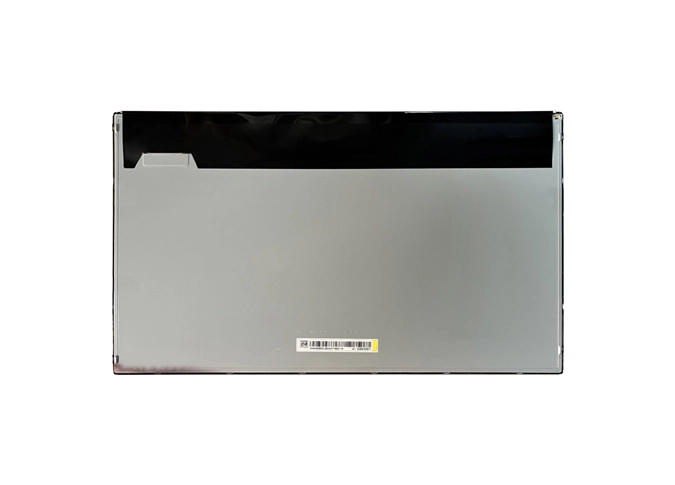

tft and lcd

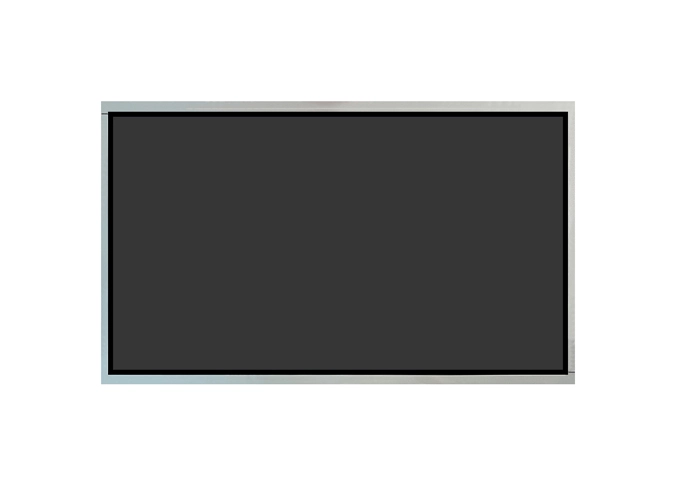

tft lcd screen panel

Vista general de la pantalla del monitor de 21,5 pulgadas Z215001 1920x1080 LVDS interfaz TFT LCD de alta velocidad

1

Z215001 es una pantalla de cristal líquido (LCD) de transistor de película delgada (TFT) de matriz activa de color con resolución de 1920*1080. La técnica IPS(In-plane Switching) hace que este módulo LCD de 21,5 "tenga un ángulo de visión más amplio. Este a-Si TFT LCD viene con interfaz LVDS.

2

Si tiene un requisito especial, como el controlador IC, interfaz, FPC, panel táctil, retroiluminación, etc., también podemos personalizar para usted.

3

Nuestra fábrica lleva a cabo ISO 9001:2015 e IATF16949: 2016 sistema estándar de calidad estrictamente, toda la pantalla LCD pasó ROHS, REACH Certificación.

4

La 21,5 "Pantalla LCD es ampliamente utilizada en el ordenador, moinitor, ordenador portátil, industrial, dispositivo comercial, supermercado, monitor, tableta, código QR, hogar inteligente, quioscos al por menor, electrónica de consumo, publicidad, expending, educación, aviación y aeroespacial, aviso ECT.

General Specifications Z215001 21.5 Inch Monitor Screen 1920x1080 LVDS Interface High Speed TFT LCD


Parameter

Specification

Unit

Remarks

Active area

476.064(H) × 267.786(V)

mm


Number of pixels

1920(H) ×1080(V)

pixels


Pixel pitch

0.24795(H) x 0.24795(V)

mm


Pixel arrangement

RGB Vertical stripe

-


Display colors

16.7M

colors


Display mode

Normally Black

-


Dimensional outline

495.6(H) × 292.2(V) × 10.7(D) typ.

mm

Detail refer to drawing

Weight

1.97

Kg


Bezel width (L/R/U/D)

7.9/7.9/10.5/10.5

mm


Surface Treatment

Anti-glare, 3H

-


Back-light

Lower side 1-LED Light bar Type

-




Pin Definition Description Z215001 21.5 Inch Monitor Screen 1920x1080 LVDS Interface High Speed TFT LCD


Pin No

Symbol

Function

Remark

1

RXO0-

Negative Transmission data of Pixel 0 (ODD)


2

RXO0+

Positive Transmission data of Pixel 0 (ODD)


3

RXO1-

Negative Transmission data of Pixel 1 (ODD)


4

RXO1+

Positive Transmission data of Pixel 1 (ODD)


5

RXO2-

Negative Transmission data of Pixel 2 (ODD)


6

RXO2+

Positive Transmission data of Pixel 2 (ODD)


7

BIST

Bist function

Note1

8

RXOC-

Negative Transmission Clock (ODD)


9

RXOC+

Positive Transmission Clock (ODD)


10

RXO3-

Negative Transmission data of Pixel 3 (ODD)


11

RXO3+

Positive Transmission data of Pixel 3 (ODD)


12

RXE0-

Negative Transmission data of Pixel 0 (EVEN)


13

RXE0+

Positive Transmission data of Pixel 0 (EVEN)


14

GND

Power Ground


15

RXE1-

Negative Transmission data of Pixel 1 (EVEN)


16

RXE1+

Positive Transmission data of Pixel 1 (EVEN)


17

GND

Power Ground


18

RXE2-

Negative Transmission data of Pixel 2 (EVEN)


19

RXE2+

Positive Transmission data of Pixel 2 (EVEN)


20

RXEC-

Negative Transmission Clock (EVEN)


21

RXEC+

Positive Transmission Clock (EVEN)


22

RXE3-

Negative Transmission data of Pixel 3 (EVEN)


23

RXE3+

Positive Transmission data of Pixel 3 (EVEN)


24

GND

Power Ground

Note 2

25

CTL

*Reserved for LCD manufacturer’s(CTL_DVR)


26

CE

*Reserved for LCD manufacturer’s(CE_DVR)


27

NC



28

VDD


Power Supply: +5V


29

VDD


30

VDD
