Tamaño: 3 pulgadas
Resolución: 480*854
Interfaz: SPI RGB/MIPI
Ángulo de visión: IPS
Brillo: 500 cd/m²
Panel táctil: Soporte CTP/RTP
Tipo de suministro: Fábrica/Fabricante
Certificación: ISO9001, IATF16949, ROHS, REACH

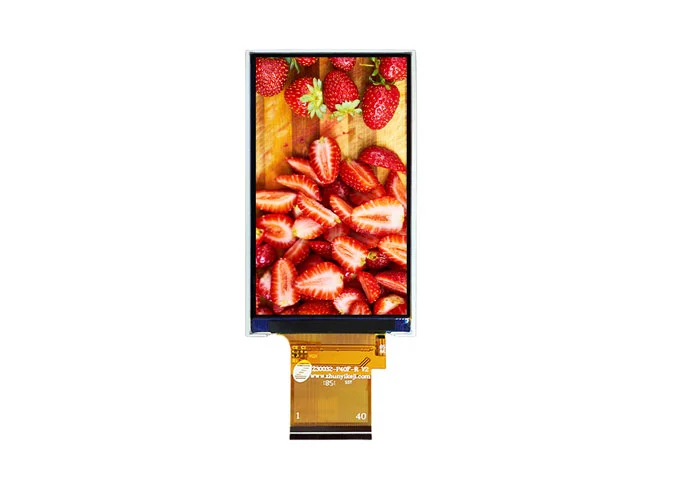

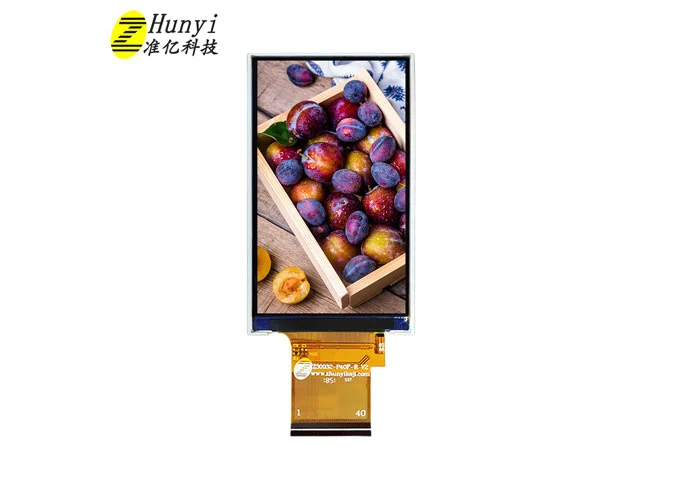

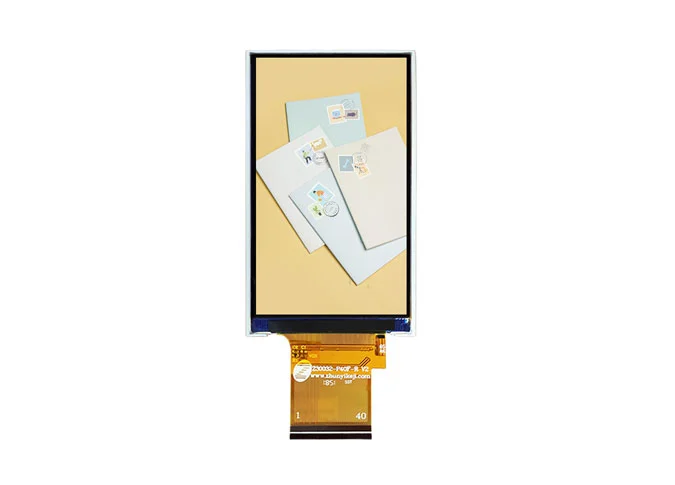

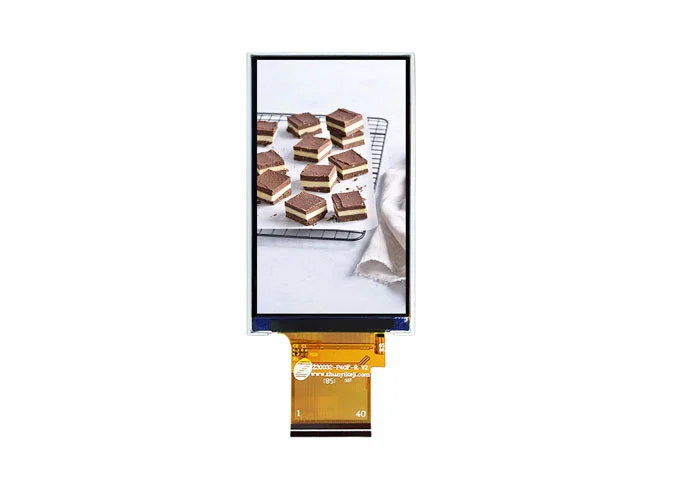

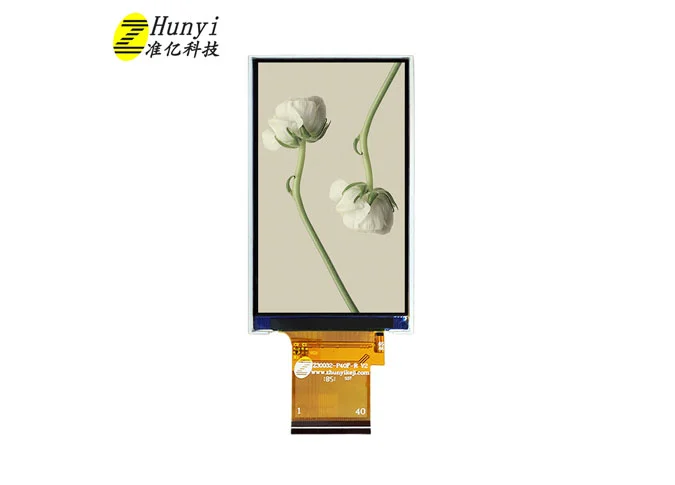

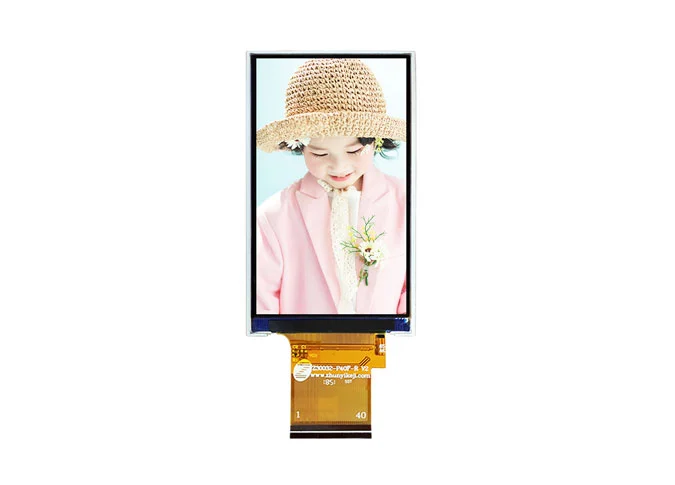

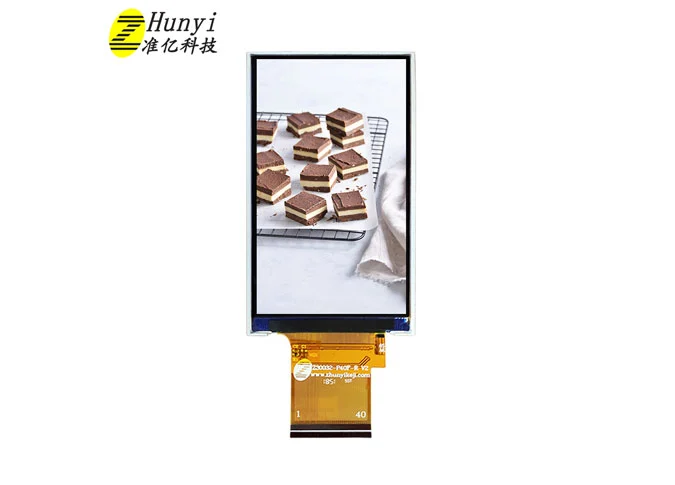

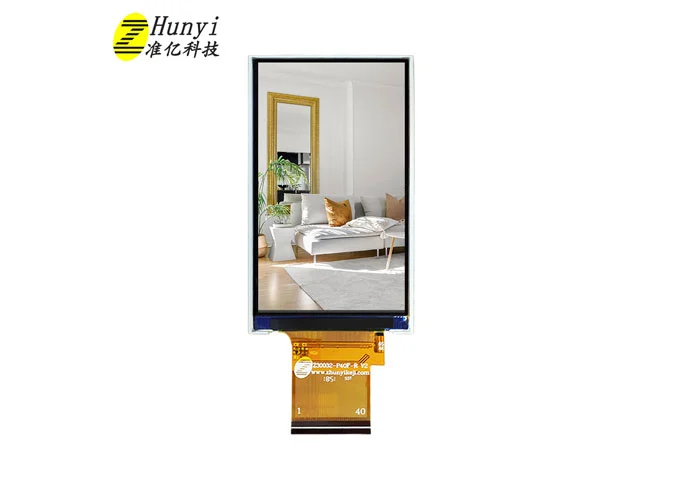

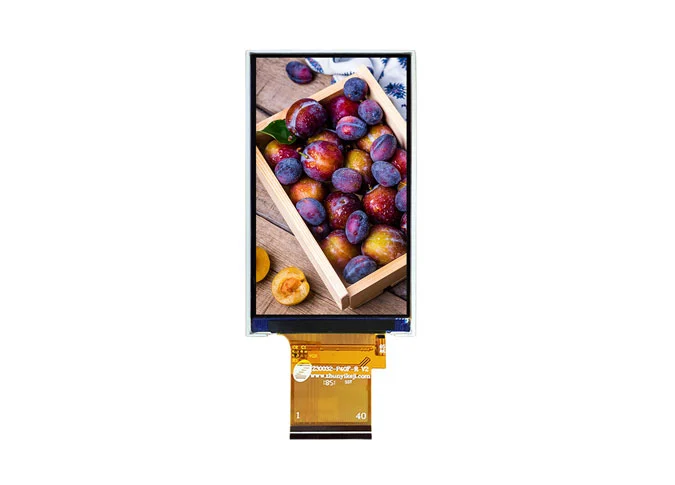

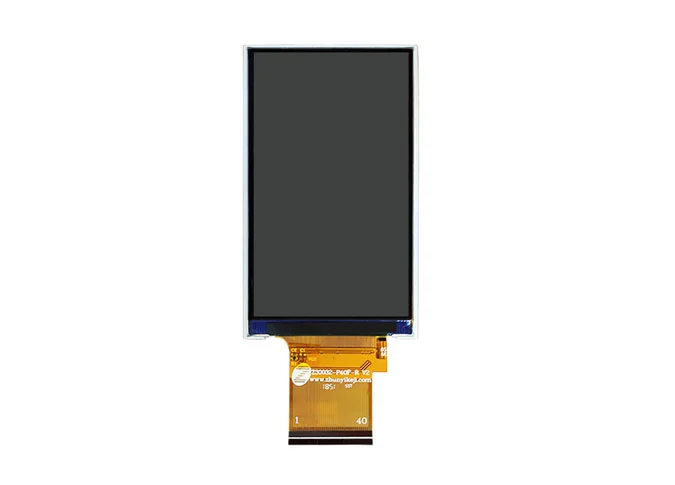

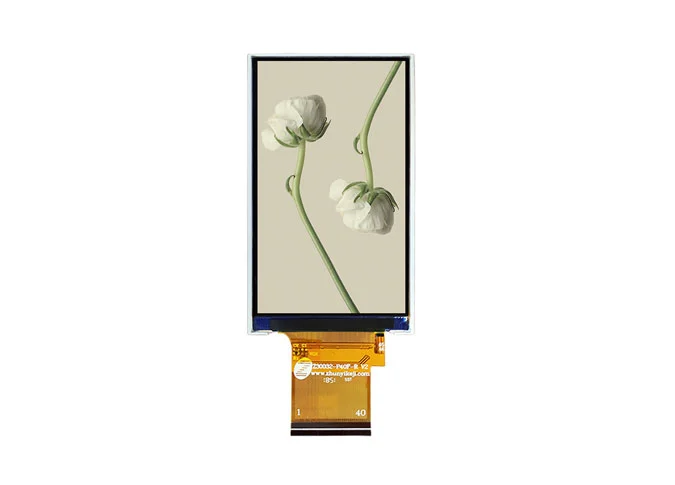

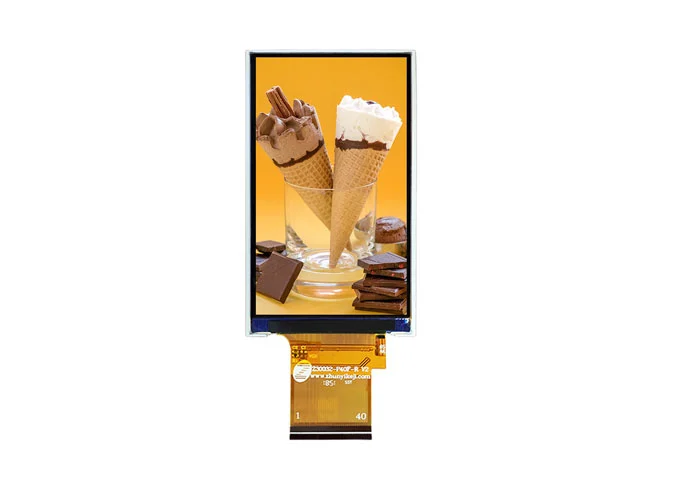

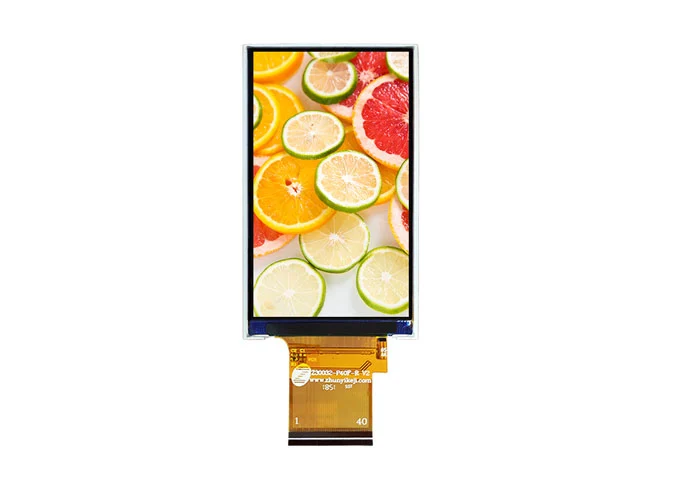

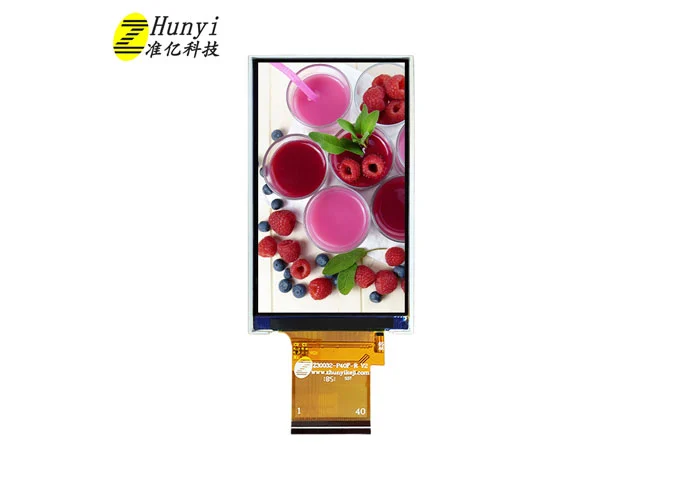

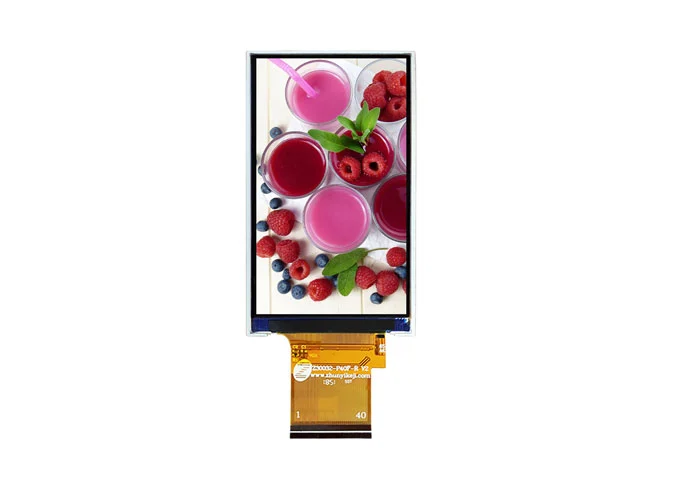

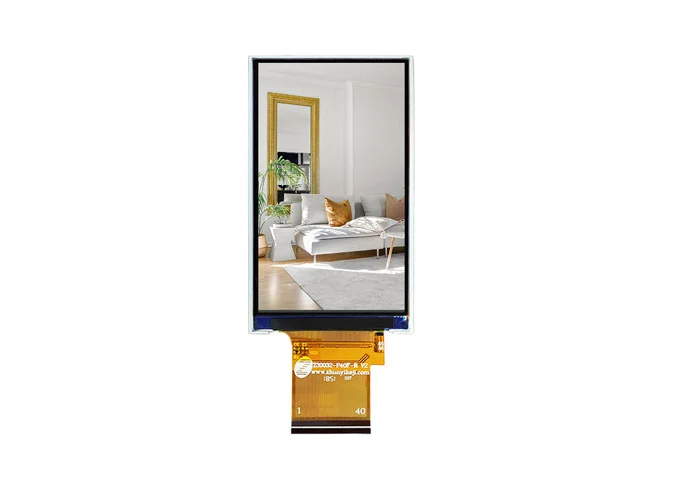

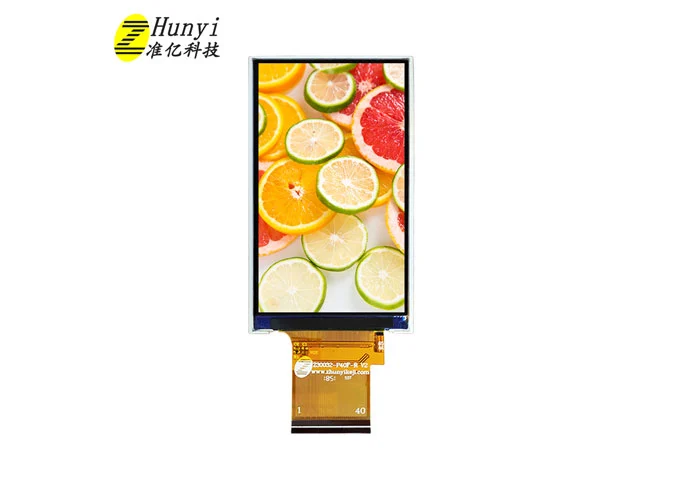

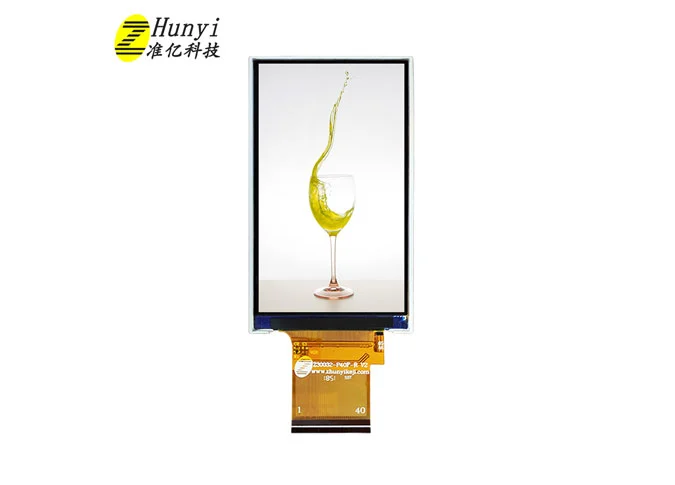

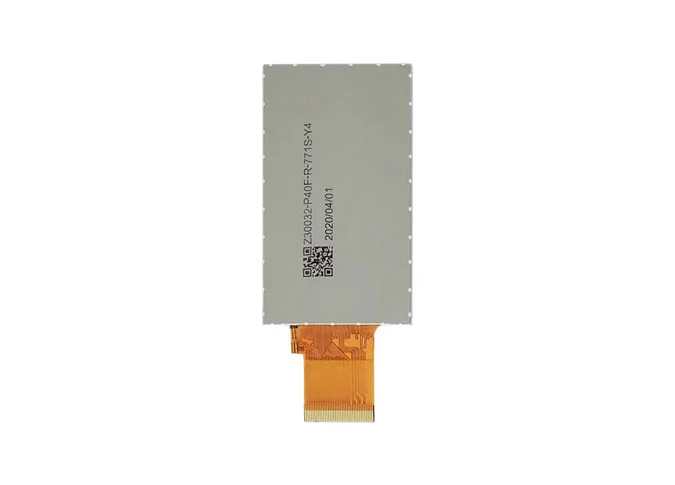

Z30032 es una pantalla de cristal líquido (LCD) de transistor de película delgada (TFT) de matriz activa de color con resolución de 480*854. La técnica IPS (In-plane Switching) hace que este módulo LCD de 3 "tenga un ángulo de visión más amplio. Este LCDPantalla TFT cuadradaEstá integrado ST7701S controlador IC. Este módulo a-Si TFT LCD viene con interfaz SPI RGB/MIPI, brillo 500 cd/m².
Si tiene un requisito especial, como la interfaz de unidad IC, FPC, panel táctil, retroiluminación, etc., podemos proporcionarPantalla TFT personalizadaPara ti.
Nuestra fábrica realiza 9001 ISO: 2015 e IATF16949: 2016 sistema estándar de calidad estrictamente, todo el LCDPantalla TFT cuadradaPasó ROHS, REACH Certificación.
La pantalla LCD de 3 pulgadas es oxímetro médico, instrumento cosmético, electrodoméstico, traductor, reproductor de música, hogar inteligente, industria, etc.
No. | Item | Specification | Unit |
1 | Display Size (Diagonal) | 3.0 | inch |
2 | Display Resolution | 480 (H）× RGB × 854 (V） | pixels |
3 | Pixel Pitch | 26 (H) × 78 (V） | um |

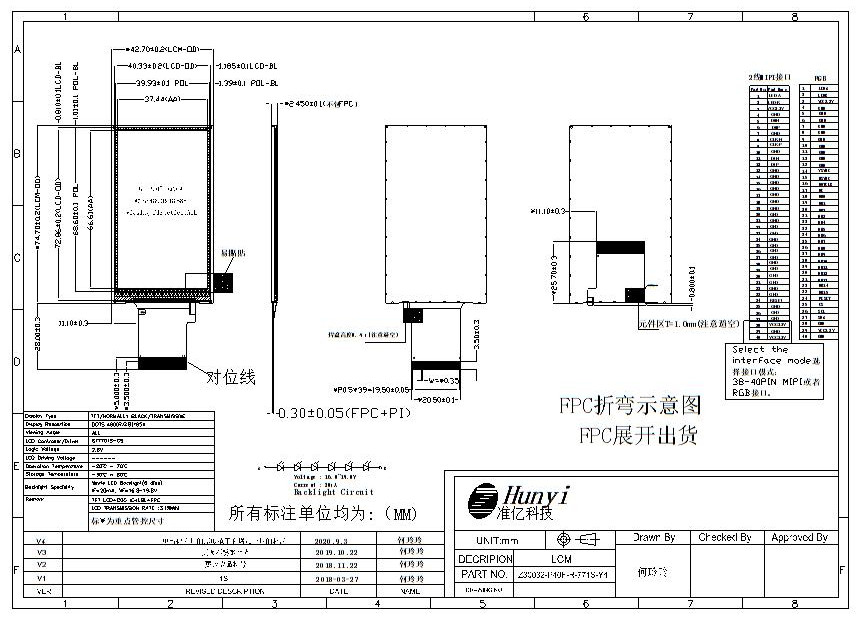

4 | LCM Outline Dimension (Without FPC） | 42.70 (W) × 74.70 (H) ×2.45 (T) | mm |
5 | LCD Outline Dimension | 40.33 (W) × 72.86 (H) × 1.0 (T) | mm |
6 | LCD Active Area | 37.44 (W) × 66.61 (H） | mm |
7 | View Direction (Gray Inversion) | FULL VIEW | - |
8 | Driver IC | ST7701S-G5 | - |
9 | Pixel Arrangement | RGB-Stripe | - |
10 | Display Mode | Normal Black | - |
11 | Pixel driving Element | a-Si TFT | - |
12 | LCD Transmittance | Typ.: 3.5% Min: 3.1% | - |
13 | LCD Contrast Ratio | Typ.: 1000 Min: 800 | - |
14 | FPC Version | Z30032-P40F-R V2 | - |
15 | Interface | MIPI/RGB+SPI | - |
16 | Operating Temperature | -20°C~ 70°C | - |
17 | Storage Temperature | -30°C~ 80°C | - |
18 | Backlight Arrangement | LED/6 Series 1 Parallel (6 lights in total) | - |
19 | Luminance | 500 | nit |
20 | Weight | 0.017 | kg |
PIN NO. | PIN DEF. | FUNCTION DESC. |
1 | LEDA | POWER SUPPLY- FOR BACKLIGHT ANODE |
2 | LEDK | POWER SUPPLY- FOR BACKLIGHT CATHODE |
3 | VCC | POWER SUPPLY (3.3V） |
5-13 | GND | Ground |
14 | VSYNC | Vertical sync. Signal in RGB I/F. |
15 | HSYNC | Horizontal sync. Signal in RGB I/F. |
16 | DOTCLK | Pixel clock signal in RGB I/F |
17 | DE | Data enable signal in RGB I/F DE mode. |
18-33 | DB0-DB15 | DATA BUS |
34 | RESET | LCM RESET PIN |
35 | CS | Chip Select input PIN |
36 | SCL | LCM SPI clock (SCL) clock (SCLK) |
37 | SDA | LCM SPI data (SDA) data input (MOSI) |
38 | GND | Ground |
39 | VCC | POWER SUPPLY（3.3V） |
40 | GND | Ground |
RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on. | ||
PIN NO. | PIN DEF. | FUNCTION DESC. |
1 | LEDA | POWER SUPPLY- FOR BACKLIGHT ANODE |
2 | LEDK | POWER SUPPLY- FOR BACKLIGHT CATHODE |
3 | VCC | POWER SUPPLY (3.3V） |
4 | GND | Ground |
5 | D0N | Negative MIPI differential data input |
6 | D0P | Positive MIPI differential data input |
7 | GND | Ground |
8 | CLKN | Negative MIPI differential CLOCK input |
9 | CLKP | Positive MIPI differential CLOCK input |
10 | GND | Ground |
11 | D1N | Negative MIPI differential data input |
12 | D1P | Positive MIPI differential data input |
13-37 | GND | Ground |
38 | VCC | POWER SUPPLY (3.3V） |
39 | GND | Ground |
40 | VCC | POWER SUPPLY (3.3V） |
