Tamaño: 3,5"
Resolución: 480*800
Interfaz LCD: SPI RGB
Interfaz táctil: IIC
Panel táctil: capacitivo
Controlador IC: ST7701S
Ángulo de visión: IPS
Tipo de suministro: Fábrica/Fabricante
Certificación: ISO9001,IATF16949,ROHS,REACH

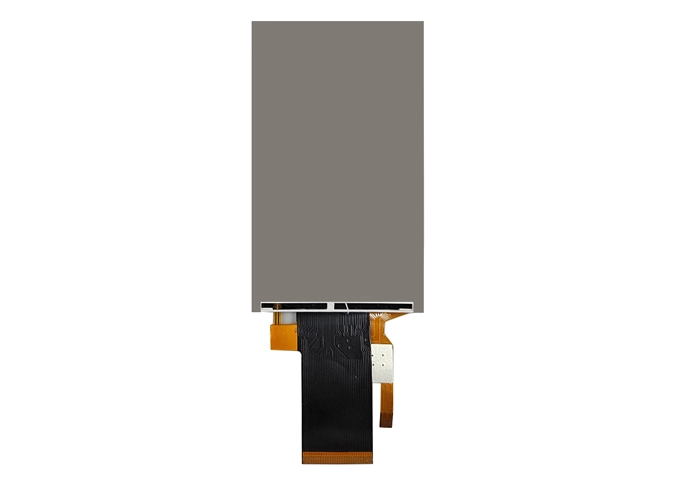

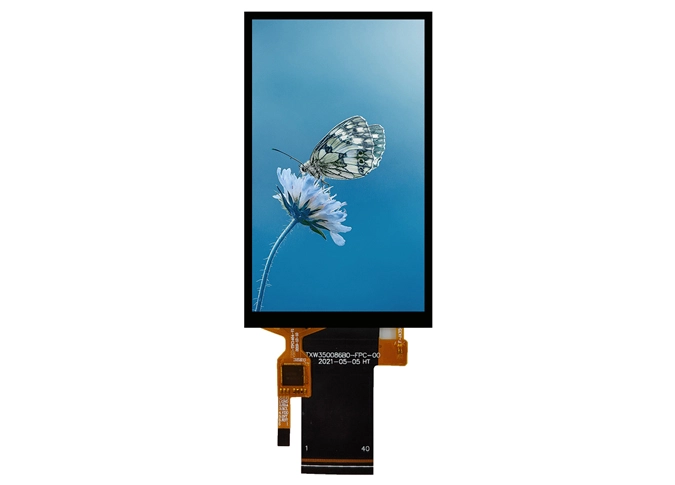

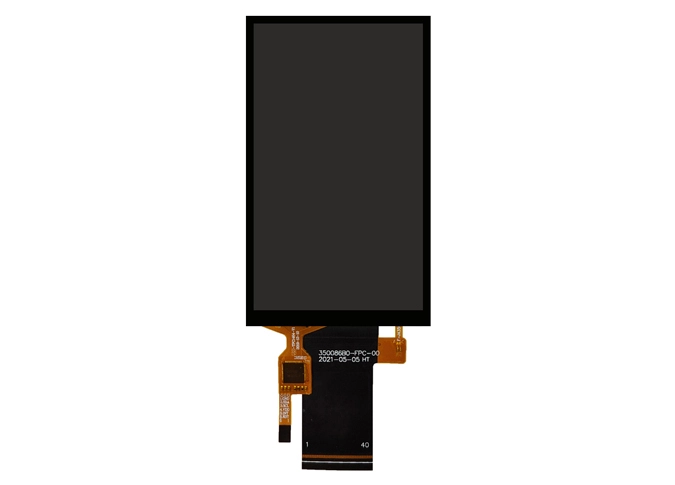

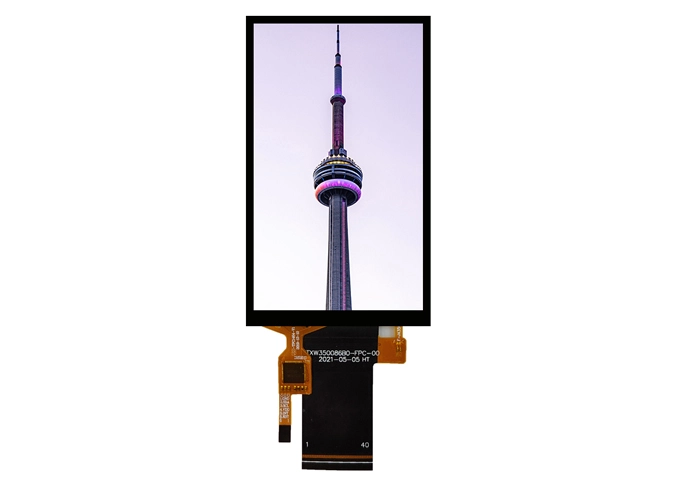

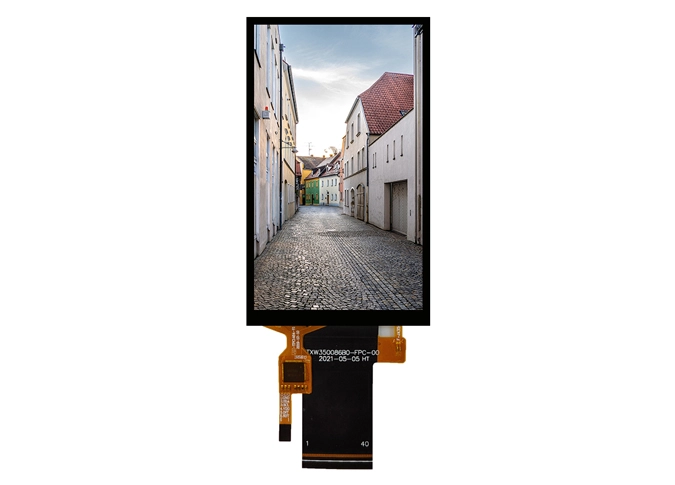

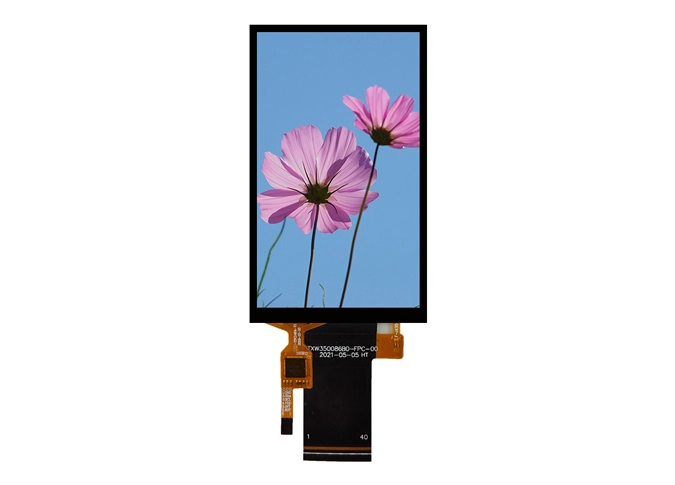

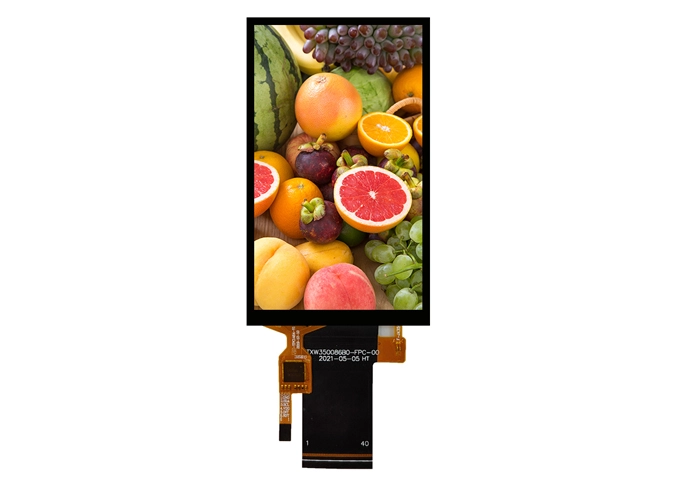

Z35032-ZC es una pantalla de cristal líquido (LCD) de transistor de película delgada (TFT) de matriz activa de color con panel táctil capacitivo, QVGA 480*800. Esta pantalla táctil TFT está incorporada ST7701S LCD controlador IC. Este a-Si TFT LCDChina Módulo de panel táctilVienen con interfaz SPI RGB e I2C.
Si tiene un requisito especial, como el controlador IC, interfaz, FPC, panel táctil, retroiluminación, brillo, color, etc., podemos proporcionarMódulo de pantalla LCD personalizadoPara ti.
Como unChina Módulo LCD fabricante, Nuestra fábrica lleva a cabo 9001 ISO: 2015 e IATF16949: 2016 sistema estándar de calidad estrictamente, toda la pantalla LCD pasó ROHS, certificación REACH
No. | Item | Specification | Unit |
1 | Display Size (Diagonal) | 3.5 | inch |
2 | Display Resolution | 480(H) × RGB × 800 (V) | pixels |
3 | Pixel Pitch | 94.5(H) × 94.5 (V) | um |
4 | LCM Outline Dimension (Without FPC) | 50. 1(W) ×85.8 (H) ×2. 1 (T) | mm |
5 | LCD Outline Dimension | 48.96 (W) × 83.20 (H) × 1.0 (T) | mm |
6 | LCD Active Area | 45.36 (W) ×75.60 (H) | mm |
7 | View Direction (Gray Inversion) | FULL VIEW | - |
8 | Driver IC | ST7701S-G5 | - |
9 | Pixel Arrangement | RGB-Stripe | - |
10 | Display Mode | Normal Black | - |
11 | Pixel driving Element | a-Si TFT | - |
12 | LCD Transmittance | Typ.: 4.5% Min:4.05% | - |
13 | LCD Contrast Ratio | Typ.: 1000 Min:800 | - |
14 | FPC Version | - | - |
15 | Interface | RGB+SPI | - |
16 | Operating Temperature | -20°C~ 70°C | - |
17 | Storage Temperature | -30°C~ 80°C | - |
18 | Backlight Arrangement | LED/7 Series 1 Parallel (7lights in total) | - |
19 | Luminance | - | nit |
20 | Weight | 0.017 |
|
PIN NO. | PIN DEF. | FUNCTION DESC. |
1 | LEDK | POWER SUPPLY- FOR BACKLIGHT CATHODE |
2 | LEDA | POWER SUPPLY- FOR BACKLIGHT ANODE |
3 | GNG | Ground |
4 | VCC | POWER SUPPLY (2.8V/3.3V) |
5- 13 | GND | Ground |
14 | VS (VSYNC) | Vertical sync. Signal in RGB I/F. |
15 | HS(HSYNC) | Horizontal sync. Signal in RGB I/F. |
16 | DCLK | Dot clock signal for RGB interface operation. |
17 | DE | Data enable signal for RGB interface operation. |
18-22 | DB0-DB4 | BLUE DATA |
23-28 | DB5-DB10 | GREEN DATA |
29-33 | DB11-DB15 | RED DATA |
34 | RST | LCM RESET PIN |
35 | CS | Chip Select input PIN |
36 | SCL | LCM SPI clock (SCL) clock (SCLK) |
37 | SDA | LCM SPI data (SDA) data input (MOSI) |
38 | IOVCC | I/O POWER SUPPLY |
39 | GND | Ground |
40 | IOVCC | I/O POWER SUPPLY |
RST voltage should be consistent with IOVCC voltage, or there probably is black screen fault when power on. | ||
PIN NO. | PIN DEF. | FUNCTION DESC. |
1 | CTP-GND | Ground(3.3V) |
2 | SDA(3.3V) | TP I2C data (SDA) data input (MOSI)(3.3V) |
3 | SCL(3.3V) | TP I2C clock (SCL) clock (SCLK)(3.3V) |
4 | VDD(3.3V) | TP Input Power voltage(3.3V) |
5 | INT(3 3V) | TP Interrupt PIN(3 3V) |
6 | RESET(3.3V) | TP RESET PIN(3.3V) |
