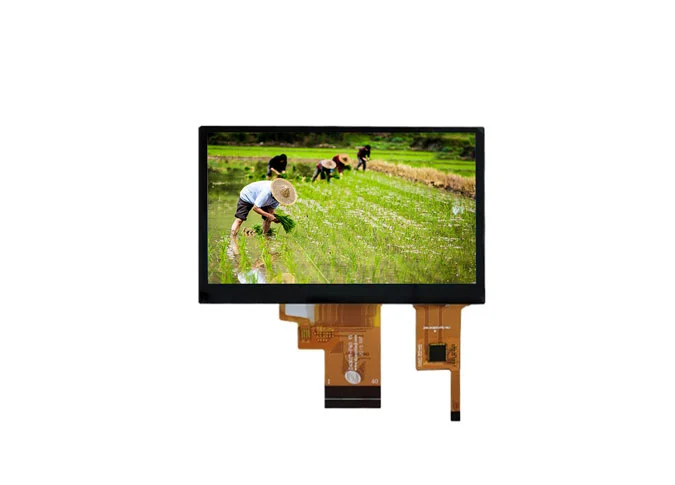

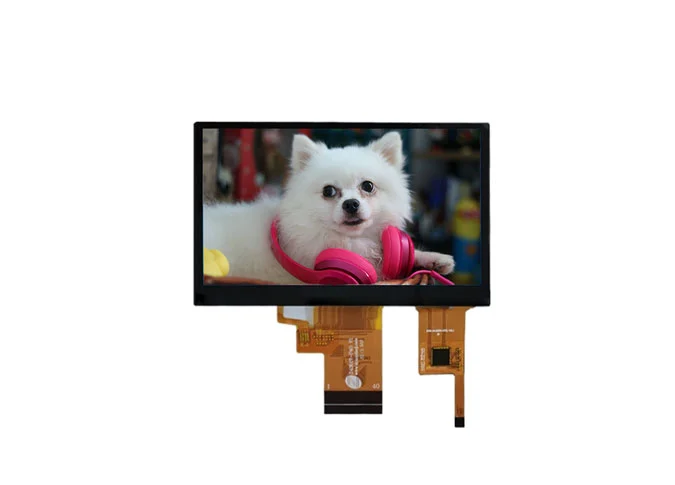

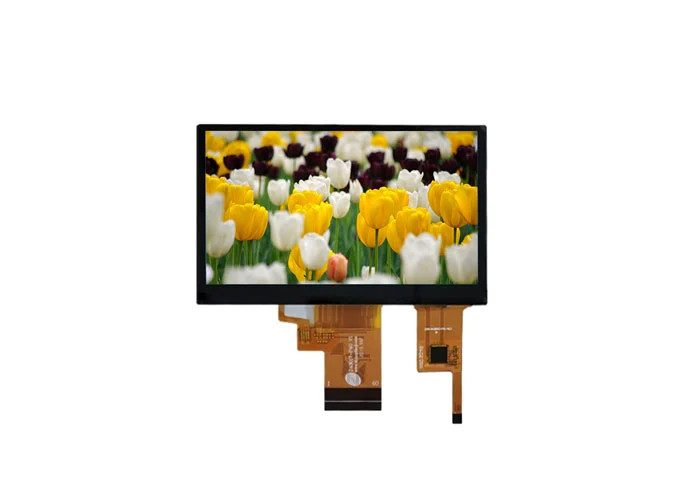

Z43016-ZC1 4,3 pulgadas 480*272 RGB interfaz IIC LCD Módulo de pantalla táctil ST7283 controlador 40PIN

  • Tamaño: 4,3 pulgadas

  • Resolución: 480*272

  • Interfaz LCD: RGB

  • Interfaz táctil: IIC

  • Panel táctil: capacitivo

  • Controlador IC: ST7283

  • Controlador táctil: GT911

  • Ángulo de visión: IPS

  • Tipo de suministro: Fábrica/Fabricante

  • Certificación: ISO9001, IATF16949, ROHS, REACH

capacitive tft panel
capacitive tft panel
capacitive tft module
capacitive screen

Descripción general de Z43016-ZC1 4,3 pulgadas 480*272 RGB interfaz IIC LCD Módulo de pantalla táctil ST7283 controlador 40PIN

1

Z43016-ZC1 es una pantalla de cristal líquido (LCD) de transistor de película delgada (TFT) de matriz activa de color con panel táctil capacitivo, QVGA 480*272. Este toquePantalla LCD TFT redondaEstá integrado ST7283 controlador LCD IC y GT911 controlador táctil. Este módulo táctil a-Si TFT LCD viene con interfaz RGB e I2C. Multi-punto táctil. G estructurador.

2

Si usted tiene un requisito especial, como la unidad IC, interfaz, FPC, panel táctil, luz de fondo, brillo, color, etc, como uno de losFábricas del módulo de pantalla LCD TFT, También podemos personalizar para usted.

3

Como unChina pantalla LCD fábricaNuestra fábrica realiza 9001 ISO: 2015 e IATF16949: 2016 sistema estándar de calidad estrictamente, pasó toda la pantalla LCD ROHS, certificación REACH.

4

Esta pantalla táctil LCD de 4,3 pulgadas es ampliamente utilizada en Timbre visual, billetera electrónica, POS, jugador de juegos, instrumento cosmético, electrodomésticos, escáner QRcode, casa inteligente, industria de mano, al aire libre, HMI, E-bike, vehículo eléctrico, salpicadero, velocímetro, etc.

General Specifications 4.3 Inch 480*272 RGB Interface IIC LCD Module Touch Screen ST7283 Controller 40PIN


No.

Item

Specification

Unit

1

Display Size (Diagonal)

4.3

inch

2

Display Resolution

480 (H) × RGB × 272 (V)

pixels

3

Pixel Pitch

198 (H) × 198 (V)

um

4

LCM Outline Dimension

(Without FPC)

105.46 (W) × 67.16 (H) × 2.75 (T)

mm

5

LCD Outline Dimension

100.16 (W) × 61.86 (H) × 0.8 (T)

mm

6

CG Outline Dimension

(Without FPC)

105.50 (W) × 67.20 (H) × 0.70 (T)

mm

7

LCD Active Area

95.04 (W) × 53.86 (H)

mm

8

View Direction (Gray Inversion)

FULL VIEW

-

9

Driver IC

ST7283-G4-1-E

-

10

Pixel Arrangement

RGB-Stripe

-

11

Display Mode

Normal Black

-

12

Pixel driving Element

a-Si TFT

-

13

LCD Transmittance

Typ.: 5.8% Min: 5.2%

-

14

LCD Contrast Ratio

Typ.: 1000 Min: 800

-

15

FPC Version

Z43016-P40 V3

-

16

Interface

RGB

-

17

TP Interface

I2C


18

Operating Temperature

-30°C~ 85°C

-

19

Storage Temperature

-30°C~ 85°C

-

20

Backlight Arrangement

LED/5 Series 2 Parallel (10 lights in total)

-

21

Luminance(LCM)

450(TYP)

nit

22

Weight

0.040

kg


Interface Definition Description 4.3 Inch 480*272 RGB Interface IIC LCD Module Touch Screen ST7283 Controller 40PIN


2.1 LCM PIN

PIN NO.

PIN DEF.

FUNCTION DESC.

1

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

2

LEDA

POWER SUPPLY+ FOR BACKLIGHT ANODE

3

GND

Ground

4

VDD

POWER SUPPLY (3.3V)

5-12

R0-R7

DATA BUS

13-20

G0-G7

DATA BUS

21-28

B0-B7

DATA BUS

29

GND

Ground

30

CLK

Pixel clock signal in RGB I/F

31

DISP

Display on/off

32

HSYNC

Horizontal sync. Signal in RGB I/F.

33

VSYNC

Vertical sync. Signal in RGB I/F.

34

DEN

Data enable

35

NC

No Connection

36

GND

Ground

37

XR/NC

LCM XR PIN/No Connection

38

YD/NC

LCM YD PIN/No Connection

39

XL/NC

LCM XL PIN/No Connection

40

YU/NC

LCM YU PIN/No Connection

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.


2.2 TP PIN

PIN NO.

PIN DEF.

FUNCTION DESC.

1

RST3.3V

TP RESET PIN (3.3V)

2

VDD3.3V

TP Input Power voltage (3.3V)

3

GND

Ground

4

INT3.3V

TP Interrupt PIN (3.3V)

5

SCL3.3V

TP I2C clock (SCL) clock (SCLK)(3.3V)

6

SDA3.3V

TP I2C data (SDA) data input (MOSI)(3.3V)


Mechanical Drawing 4.3 Inch 480*272 RGB Interface IIC LCD Module Touch Screen ST7283 Controller 40PIN
