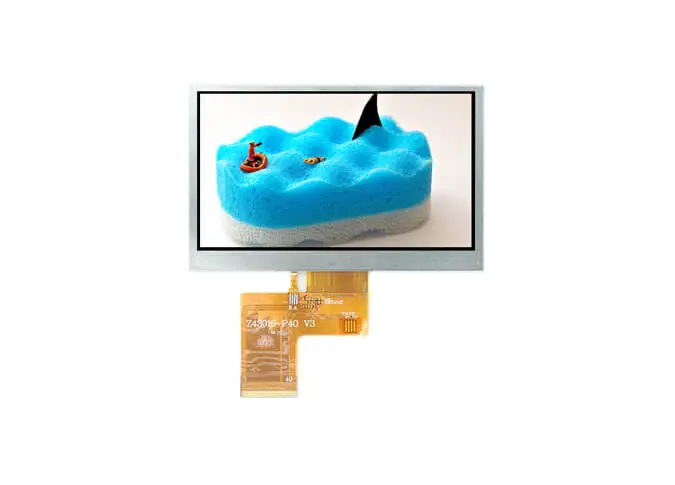

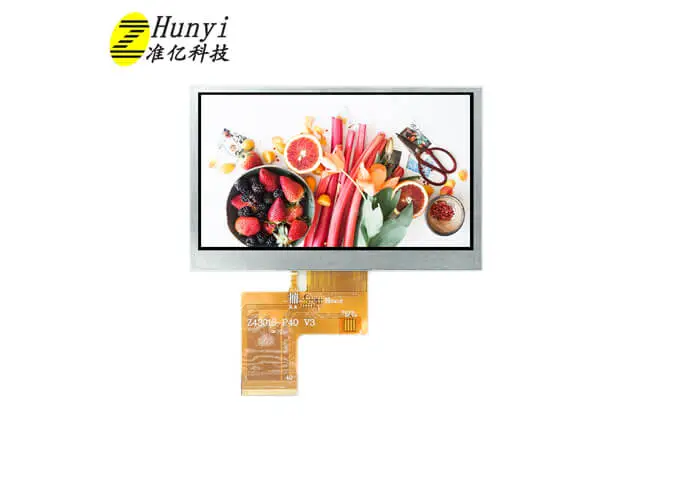

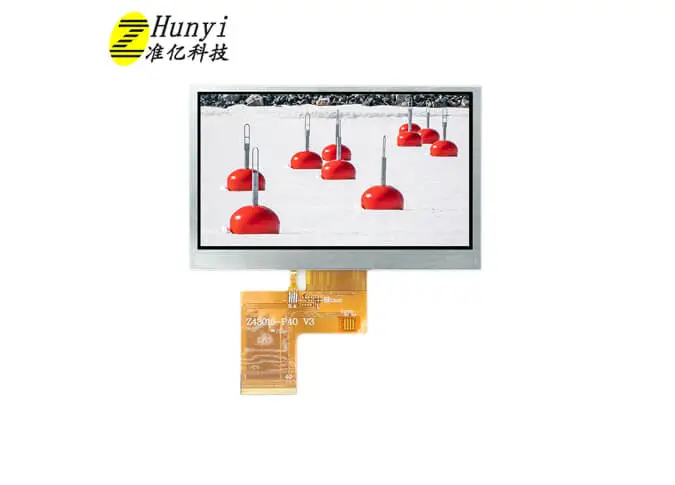

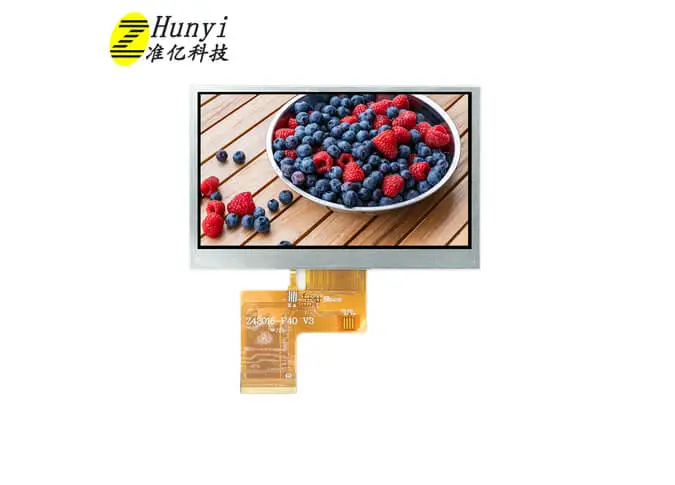

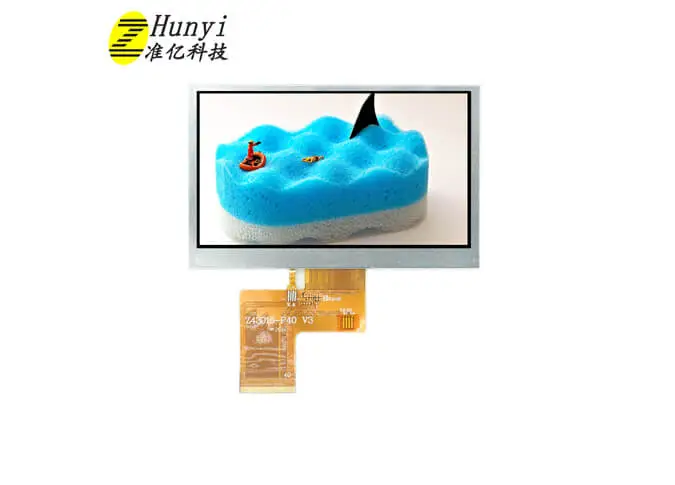

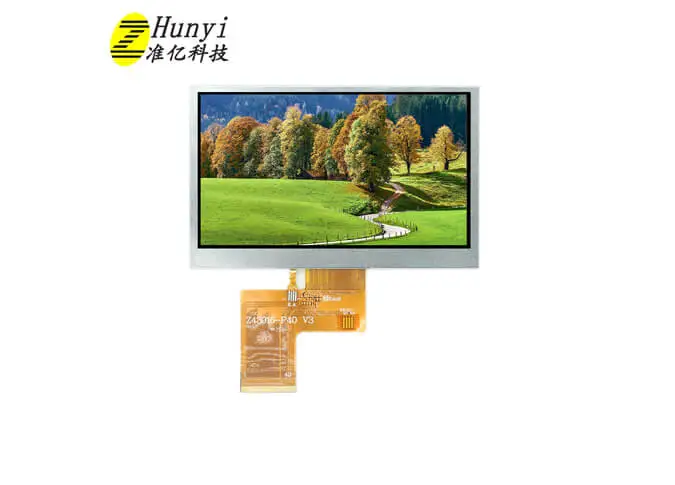

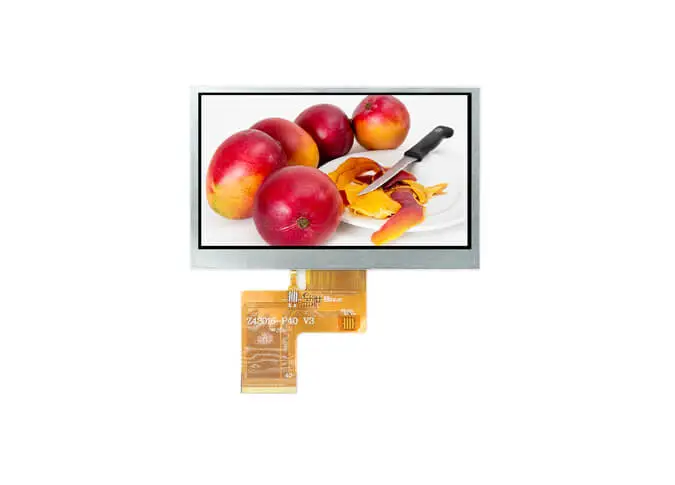

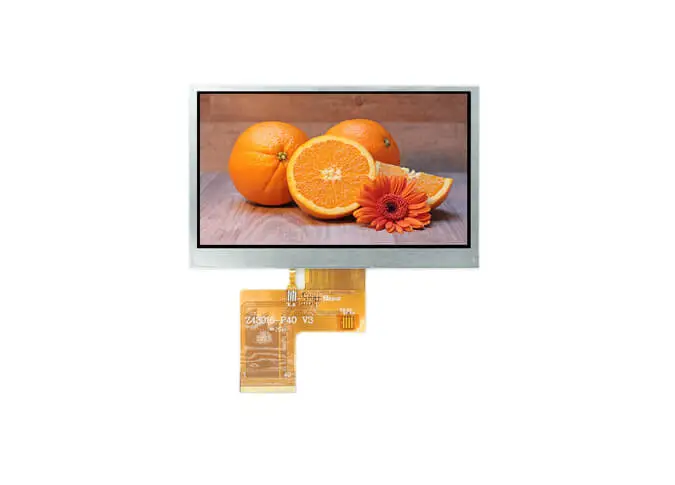

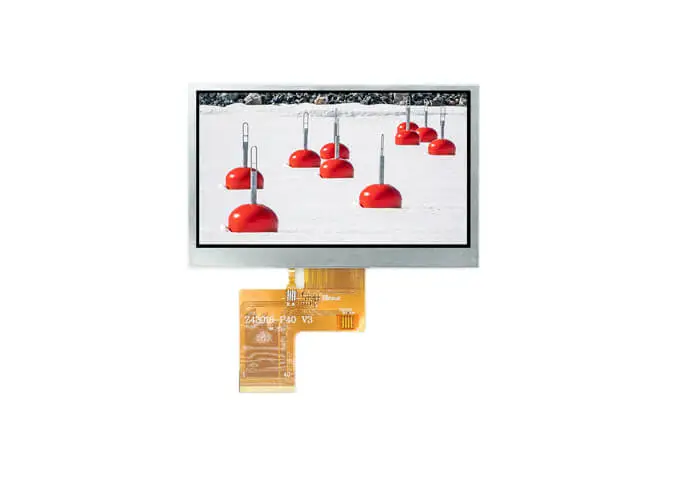

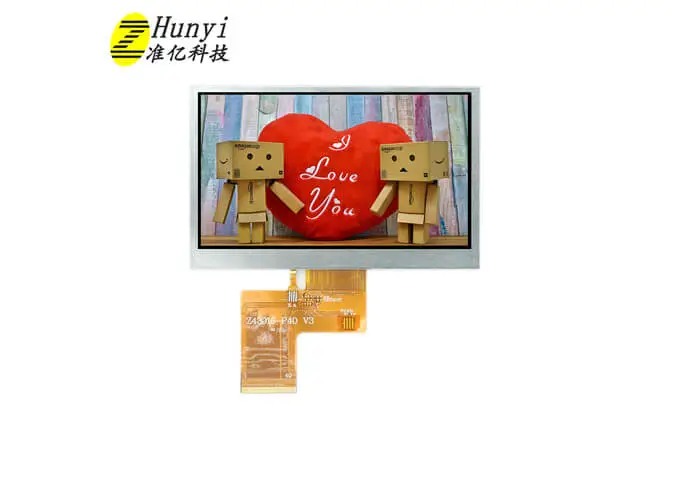

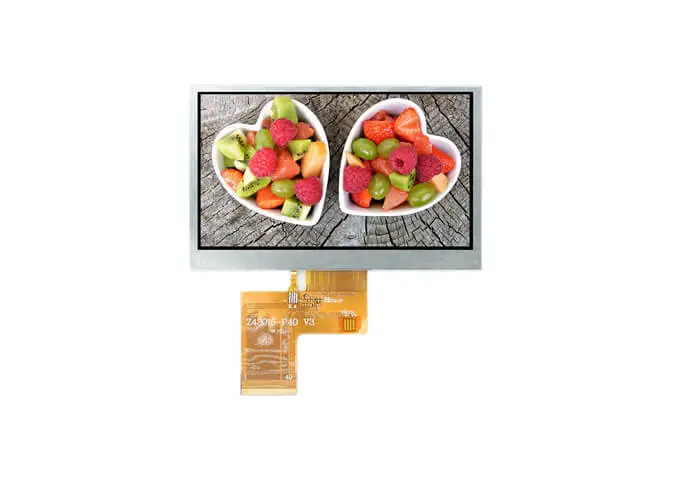

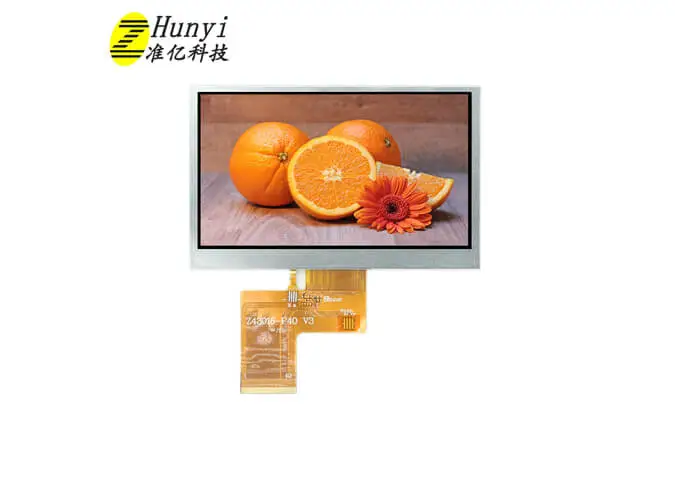

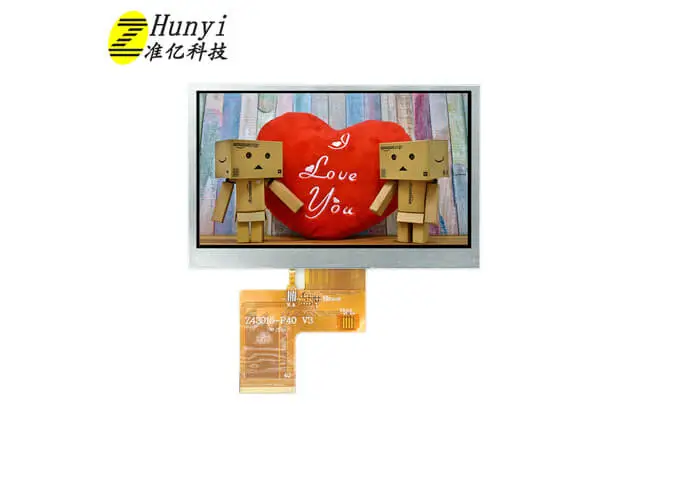

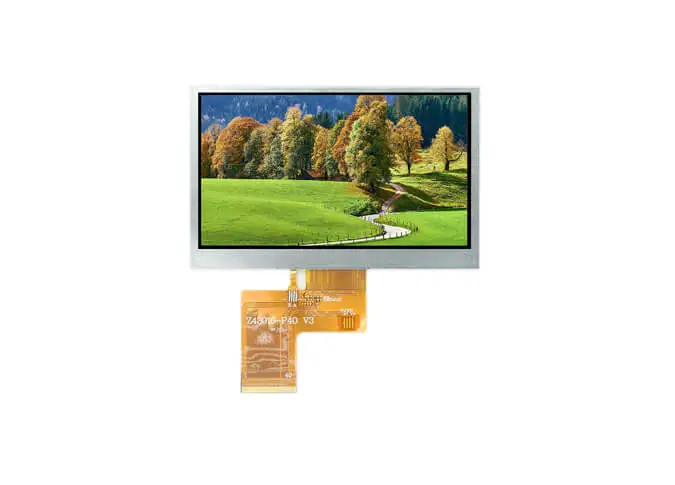

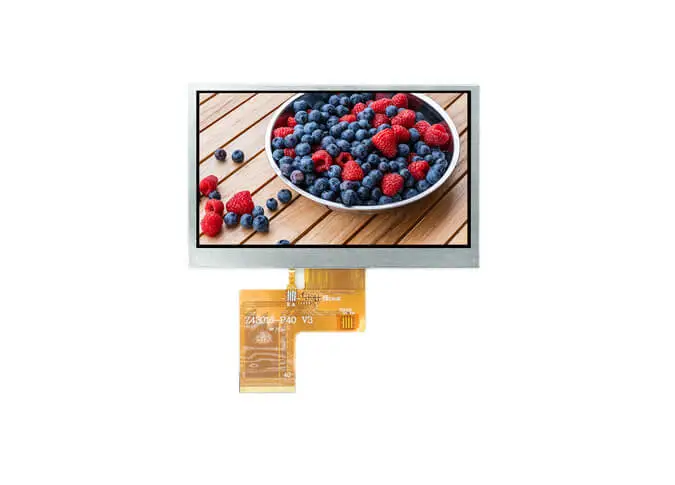

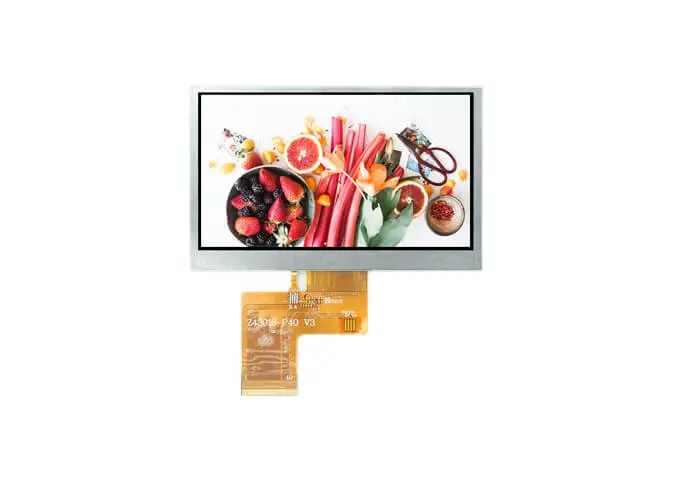

Z43080 4,3 pulgadas TFT LCD pantalla 800*480 resolución 1000NITs RGB interfaz

  • Tamaño: 4,3 pulgadas

  • Resolución: 800*480

  • Área activa: 95,04*53,86mm

  • Interfaz: RGB

  • Ángulo de visión: IPS

  • Brillo: 1000 cd/m²

  • Panel táctil: Soporte CTP/RTP

  • Tipo de suministro: Fábrica/Fabricante

  • Certificación: ISO9001, IATF16949, ROHS, REACH

4.3 inch tft display
4.3 inch tft display
4.3 inch tft lcd display
4.3 tft display
4.3 tft lcd display
4.3 inch tft display wholesale
4.3 inch tft lcd display wholesale
4.3 tft display wholesale
4.3 tft lcd display wholesale
4.3 inch tft display manufacturer
4.3 inch tft lcd display manufacturer
4.3 tft display manufacturer
4.3 tft lcd display manufacturer
4.3 inch tft display bulk
4.3 inch tft lcd display bulk
4.3 tft display bulk
4.3 tft lcd display bulk
4.3 inch tft display company
4.3 inch tft lcd display company
4.3 tft display company
4.3 tft lcd display company
4.3 inch tft is display

Descripción general de Z43080 4,3 pulgadas TFT LCD 800*480 resolución 1000NITs RGB interfaz

1

Z43080 es una pantalla de cristal líquido (LCD) de transistor de película delgada (TFT) de matriz activa de color con resolución de 800*480. La técnica IPS (conmutación en el plano) hace que este módulo LCD de 4,3 tenga un ángulo de visión más amplio. Esta pantalla LCD está integrada en el controlador IC ST7262E43. Este a-Si TFT LCDMódulo AMOLEDVienen con interfaz RGB, 1000 brillo CD/m².

2

Si tiene requisitos especiales, como la interfaz de unidad IC, FPC, panel táctil, retroiluminación, etc, podemos proporcionarMódulo LCD personalizadoPara ti.

3

Como unChina Módulo LCD fabricante, Nuestra fábrica lleva a cabo 9001 ISO: 2015 e IATF16949: 2016 sistema estándar de calidad estrictamente, pasó toda la pantalla LCD ROHS, certificación REACH.

4

La pantalla LCD horizontal de 4,3 pulgadas es ampliamente utilizada en Timbre visual, billetera electrónica, POS, jugador de juegos, instrumento cosmético, electrodomésticos, escáner QRcode, hogar inteligente, portátil industrial, al aire libre, HMI, E-bike, vehículo eléctrico, salpicadero, velocímetro, etc.

Specifications of 4.3 Inch TFT LCD Display 800*480 Resolution 1000nits RGB Interface


No.

Item

Specification

Unit

1

Display Size (Diagonal)

4.3

inch

2

Display Resolution

800 (H) × RGB × 480 (V)

pixels

3

Pixel Pitch

198 (H) × 198 (V)

um

4

LCM Outline Dimension

(Without FPC)

105.40 (W) × 67.10 (H) ×3.0 (T)

mm

6

LCD Active Area

95.04 (W) × 53.86 (H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

ST7262E43

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

14

FPC Version

-

-

15

Interface

RGB

-

16

Operating Temperature

-30°C~ 80°C

-

17

Storage Temperature

-30°C~ 85°C

-

18

Backlight Arrangement

LED/5 Series 3 Parallel (15 lights in total)

-

19

Luminance

Typ.: 1000

nit

20

Weight

TBD

kg


Interface Definition Description of 4.3 Inch TFT LCD Display 800*480 Resolution 1000nits RGB Interface


PIN NO.

PIN DEF.

FUNCTION DESC.

1

LEDK

Cathode of LED backlight

2

LEDA

Anode of LED backlight

3

GND

Power ground

4

VCC

Power voltage

5-12

R0-R7

RED DATA BUS

13-20

G0-G7

GREEN DATA BUS

21-28

B0-B7

BLUE DATA BUS

29

GND

Power ground

30

CLK

Pixel clock

31

DISP

Display on/off

32

HSYNC

Horizontal sync signal

33

VSYNC

Vertical sync signal

34

DEN

Data enable

35

HDIR

UP/Down sequence control of source driver.

36

VDIR

Right/Left sequence control of source driver.

37-40

NC

NO connect

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.

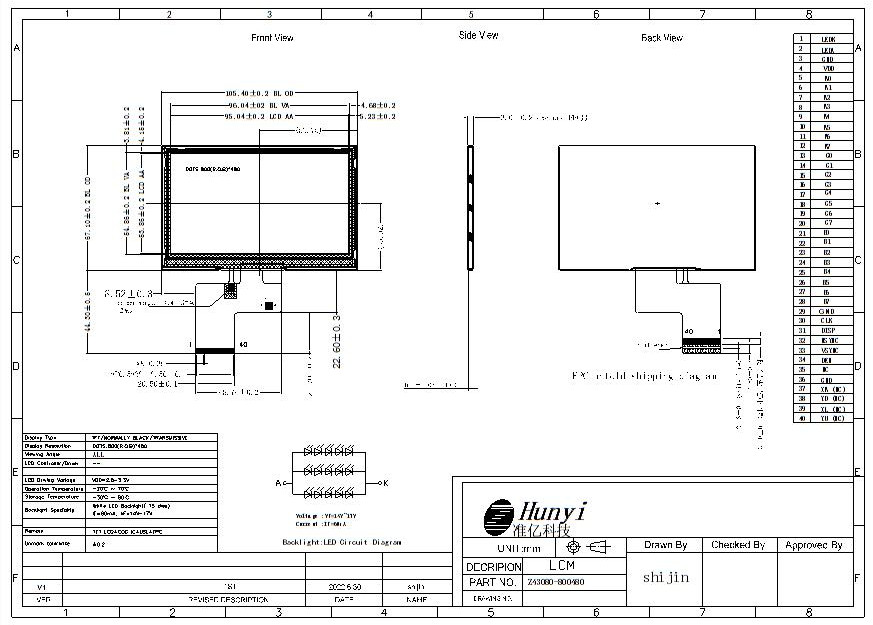

Mechanical Drawing of 4.3 Inch TFT LCD Display 800*480 Resolution 1000nits RGB Interface


Mechanical Drawing of 4.3 Inch TFT LCD Display 800*480 Resolution 1000nits RGB Interface
