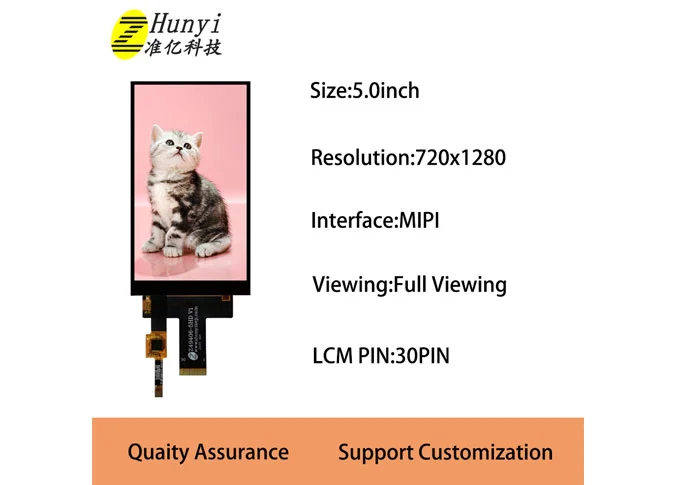

Tamaño: 4,9 pulgadas
Resolución: 720*1280
Interfaz LCD: MIPI
Interfaz táctil: IIC
Panel táctil: capacitivo
Driver IC: NT35521SH
Controlador táctil: GT911
Ángulo de visión: IPS
Tipo de suministro: Fábrica/Fabricante
Certificación: ISO9001, IATF16949, ROHS, REACH

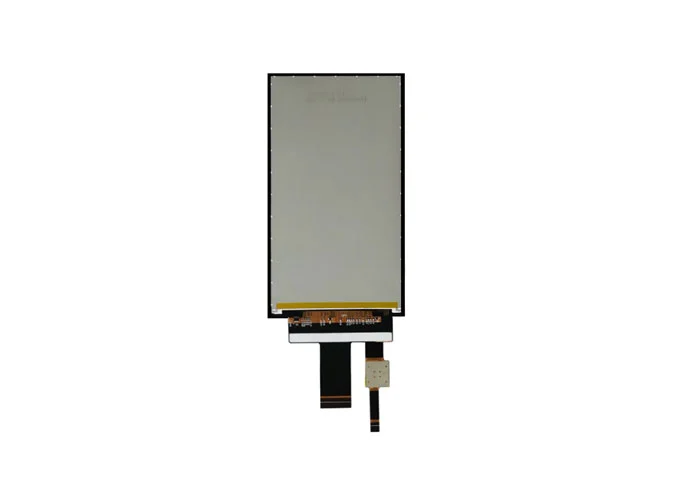

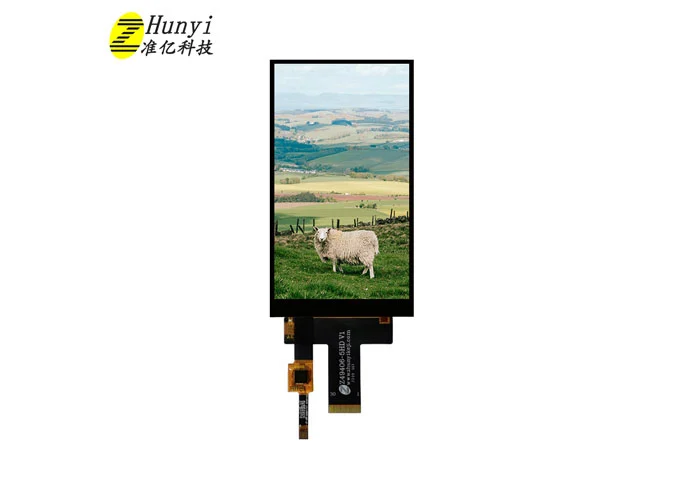

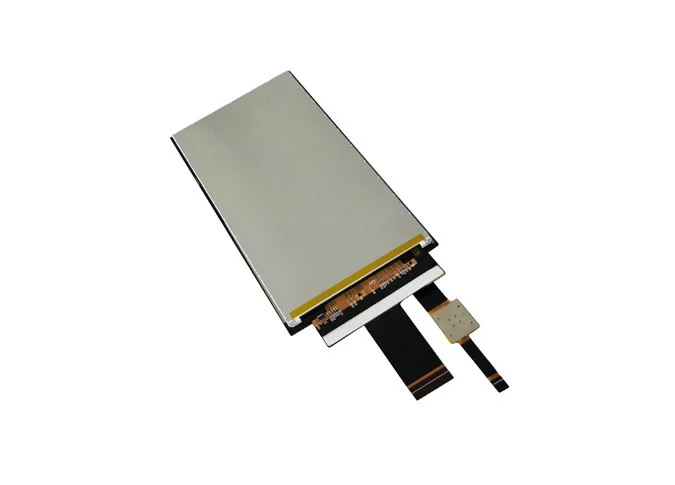

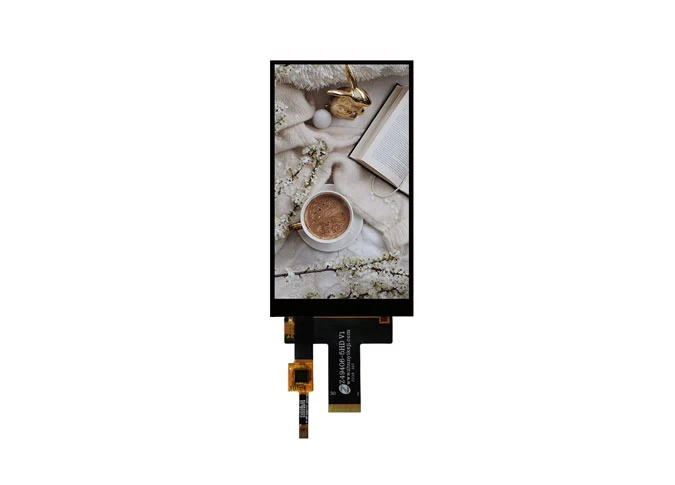

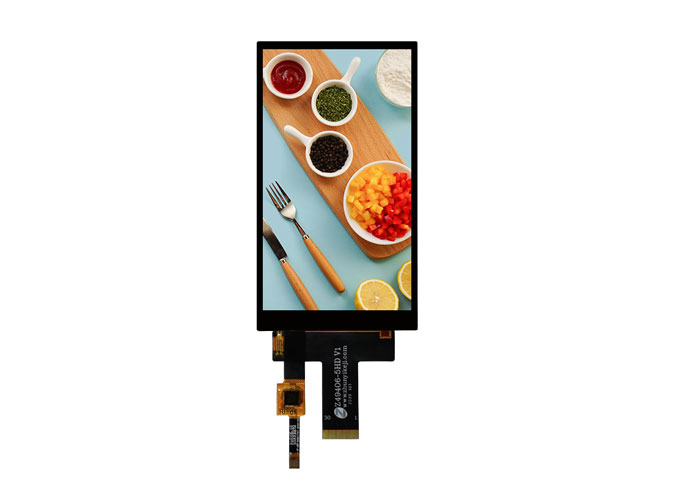

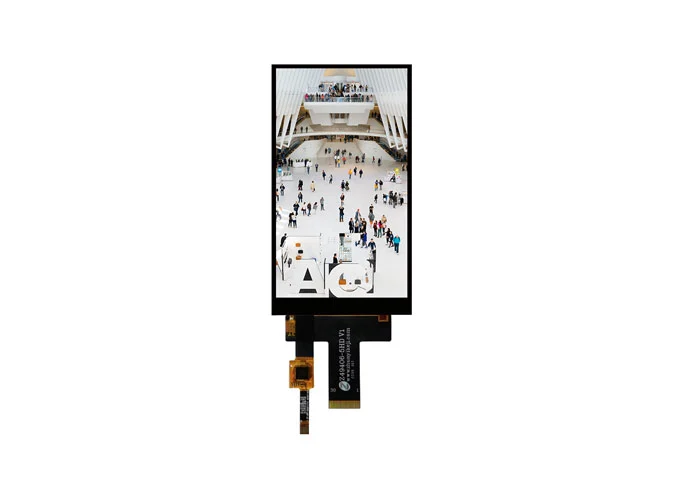

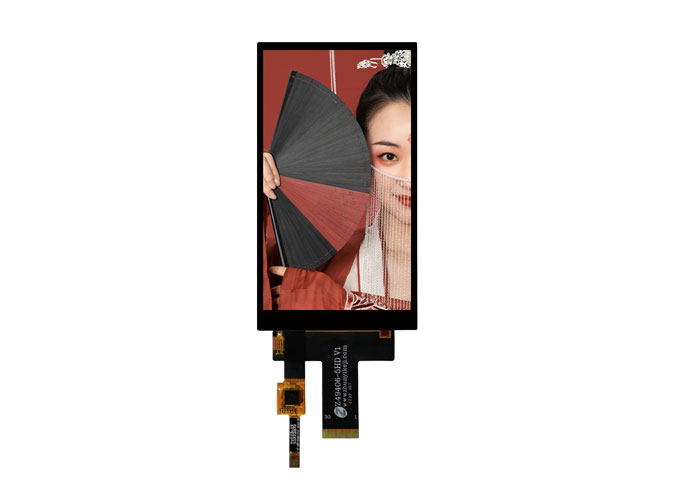

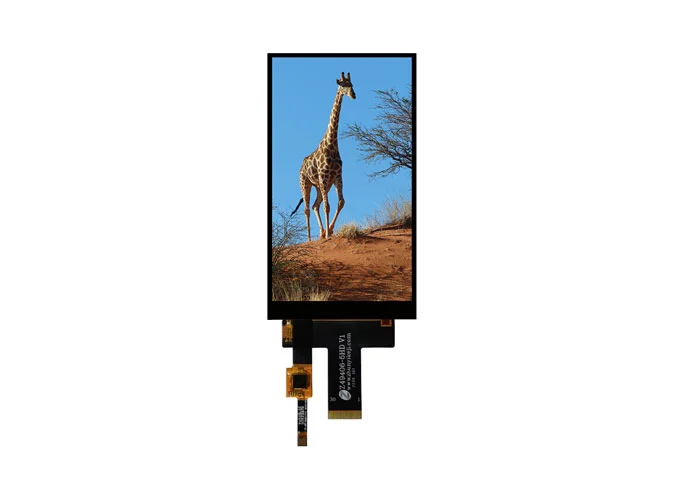

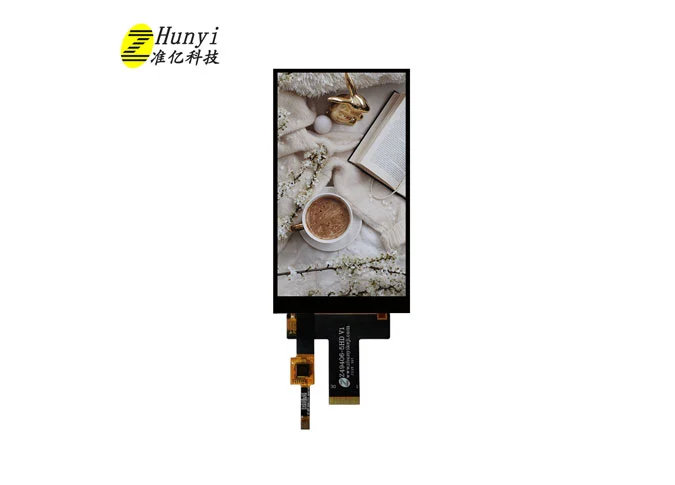

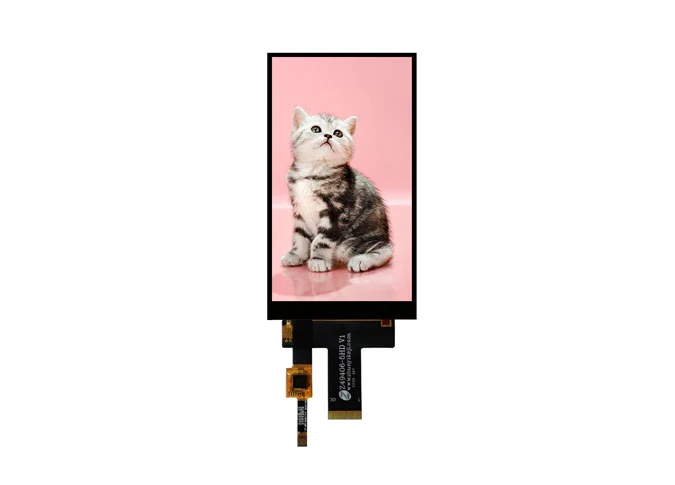

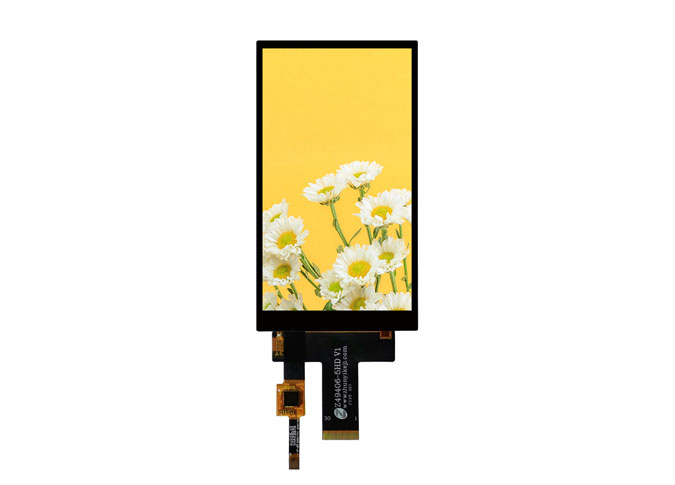

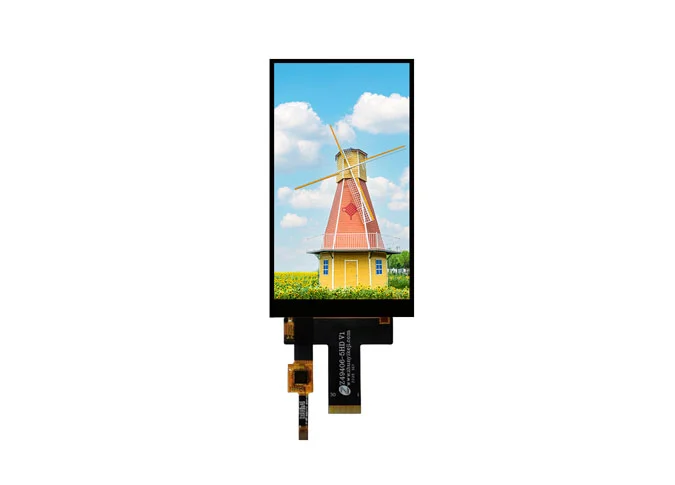

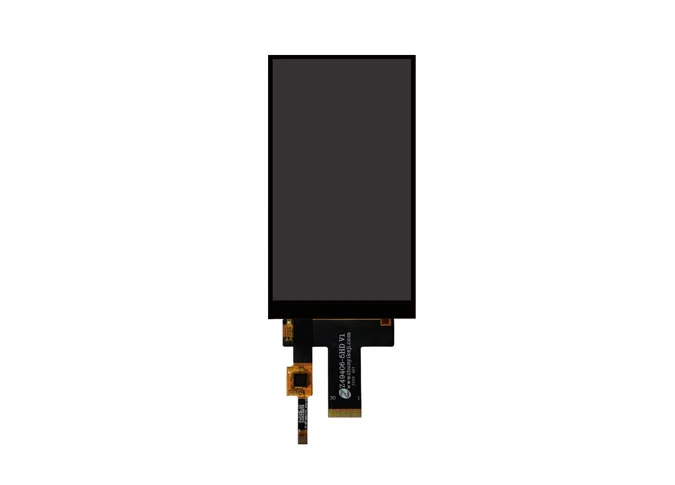

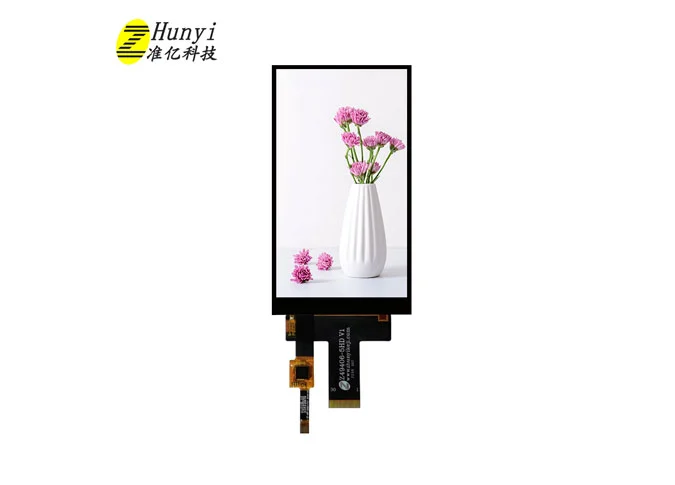

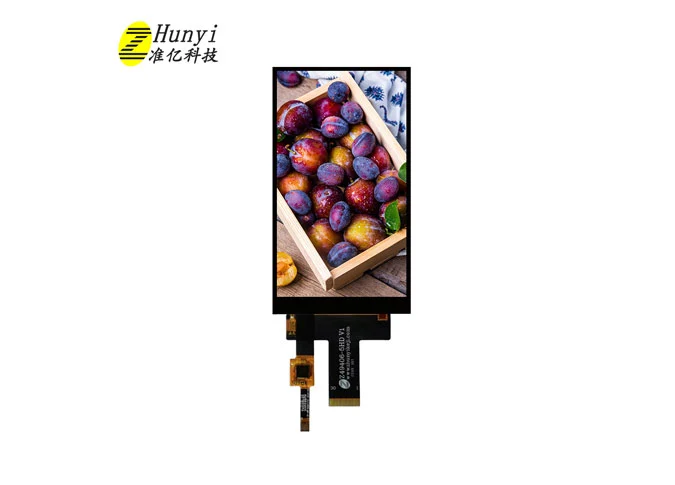

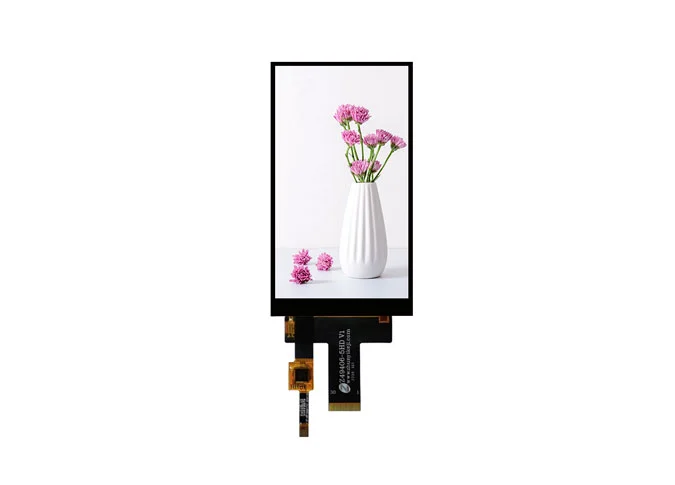

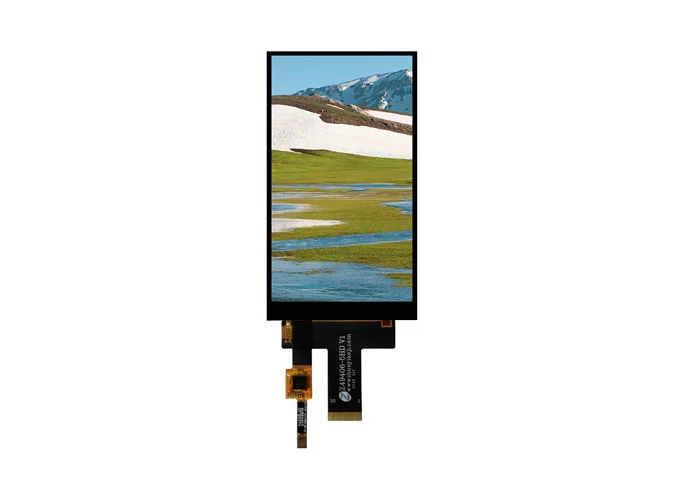

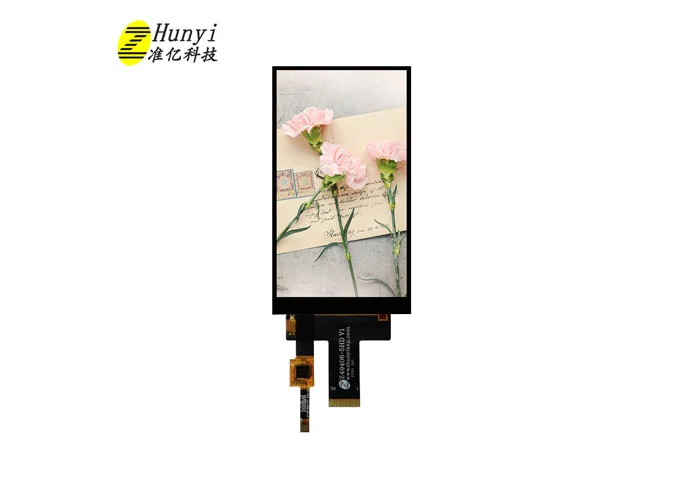

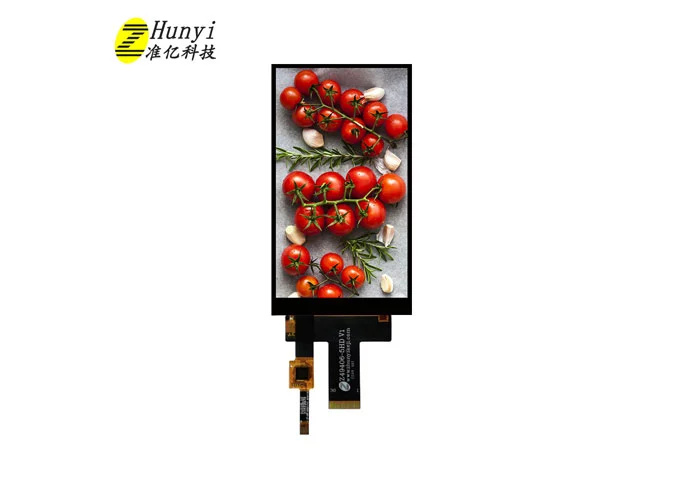

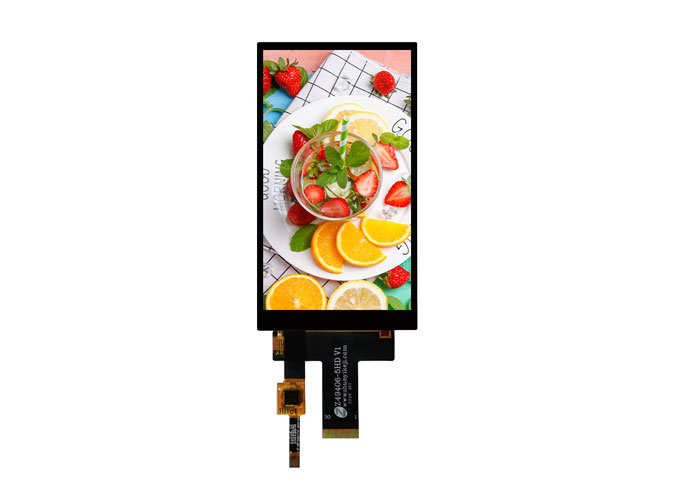

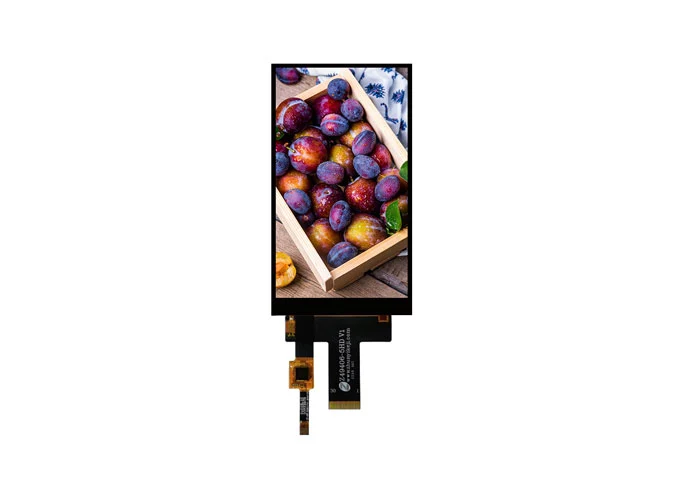

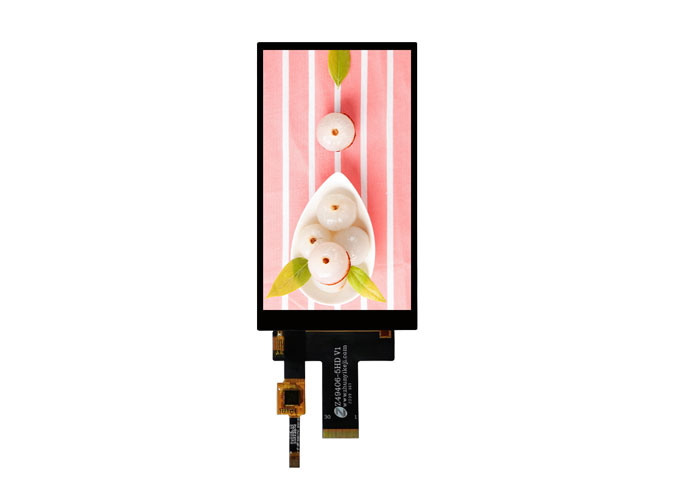

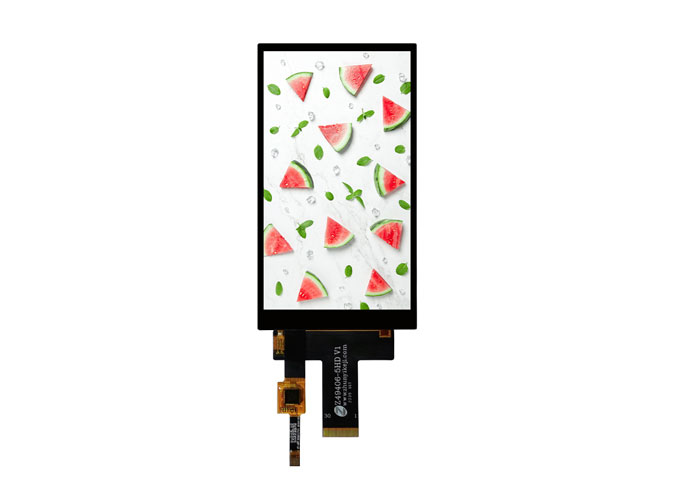

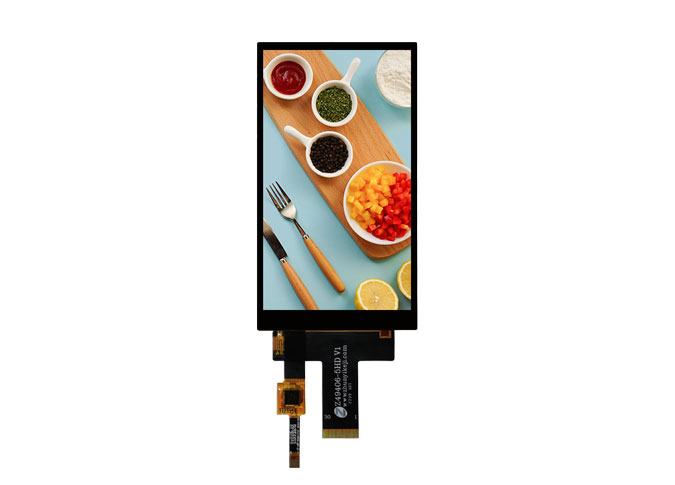

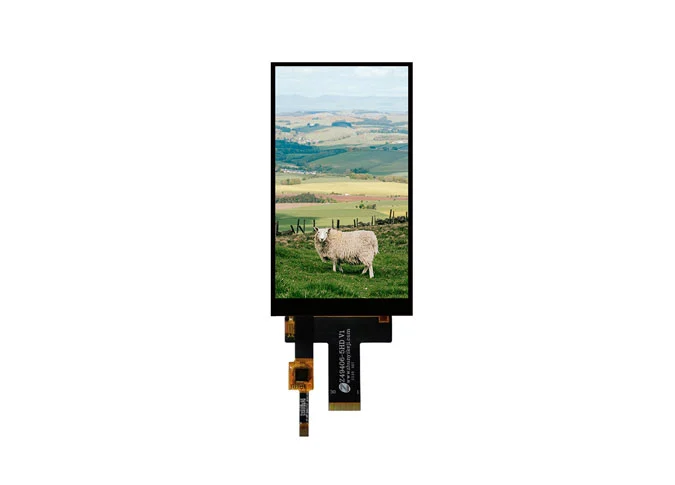

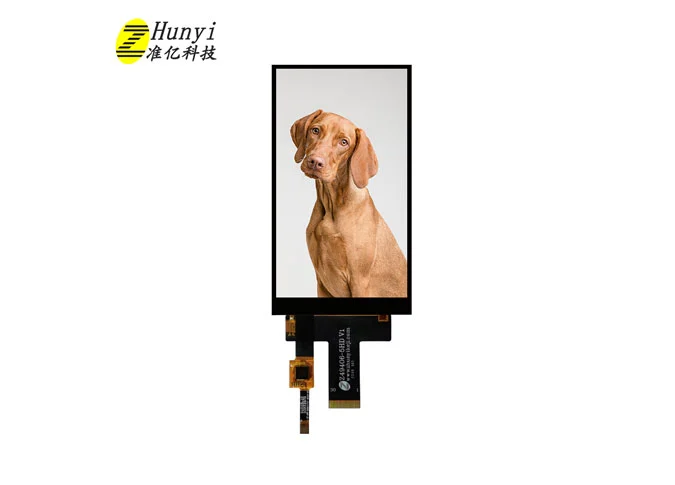

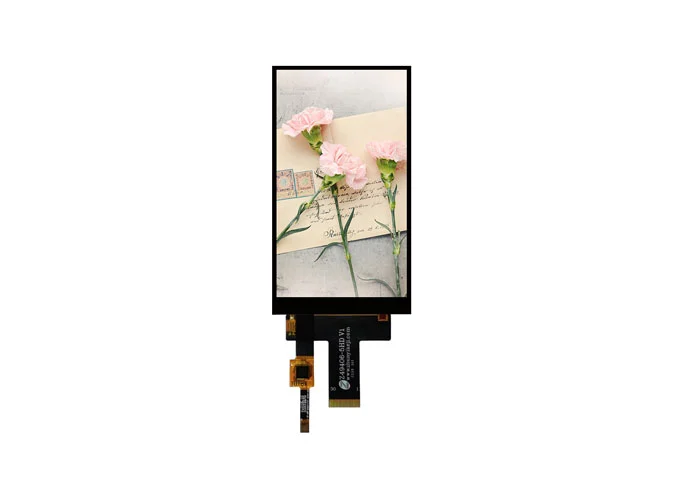

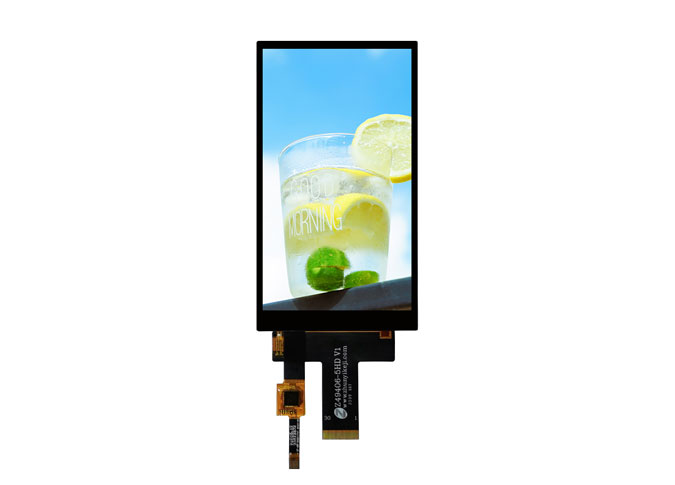

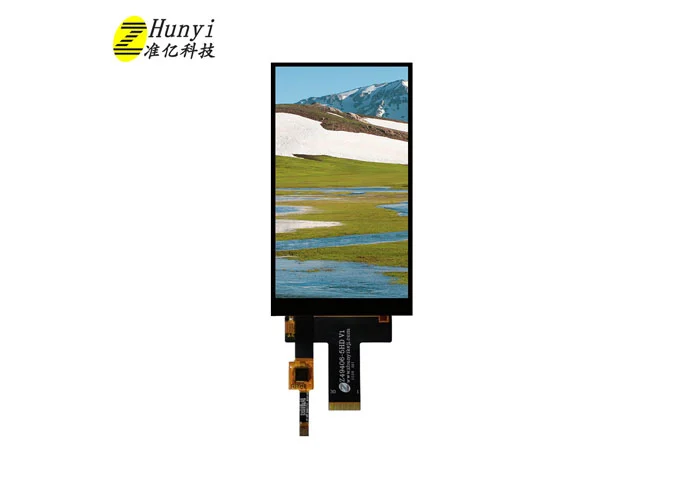

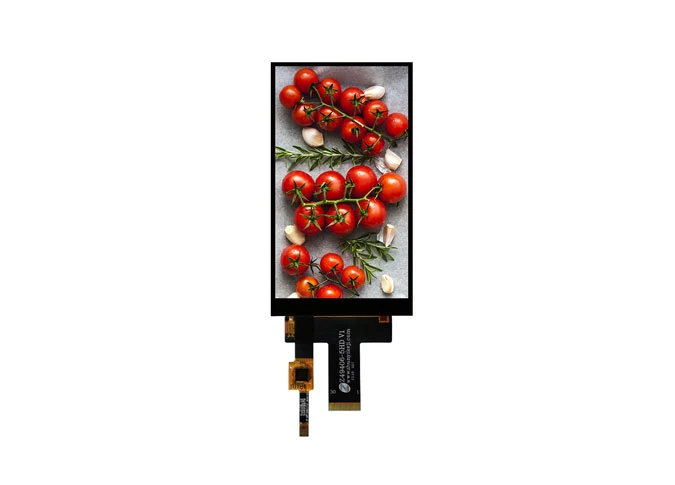

Z49406-ZC es una pantalla de cristal líquido (LCD) de transistor de película delgada (TFT) de matriz activa de color con panel táctil capacitivo, QVGA 720*1280. Este tacto TFTPanel LCD cuadradoEs NT35521SH LCD controlador IC incorporado y GT911 controlador táctil. Este módulo táctil a-Si TFT LCD viene con interfaz MIPI e I2C. Multi-punto táctil.
Si usted tiene un requisito especial, como la unidad IC, interfaz, FPC, panel táctil, luz de fondo, brillo, color, etc, podemos proporcionarPantalla LCD personalizada de ChinaPara ti.
Como uno de losFábricas de pantalla táctil al por mayorNuestra fábrica realiza 9001 ISO: 2015 e IATF16949: 2016 sistema estándar de calidad estrictamente, pasó toda la pantalla LCD ROHS, certificación REACH.
Esta pantalla táctil LCD de 4,9 pulgadas es ampliamente utilizada en Timbre visual, billetera electrónica, POS, jugador de juegos, instrumento cosmético, electrodomésticos, escáner QRcode, casa inteligente, industria de mano, al aire libre, HMI, E-bike, vehículo eléctrico, salpicadero, velocímetro, etc.
No. | Item | Specification | Unit |
1 | Display Size (Diagonal) | 4.9 | inch |
2 | Display Resolution | 720 (H) × RGB × 1280 (V） | pixels |
3 | Pixel Pitch | 86.25 (H) × 86.25 (V） | um |
4 | LCM Outline Dimension (Without FPC） | 64.70 (W) × 118.70 (H) × 1.66 (T) | mm |
5 | LCD Outline Dimension | 64.50 (W) × 117.44 (H) × 0.4 (T) | mm |
6 | TLCM Outline Dimension (Without FPC） | 67.56 (W) × 122.35 (H) × 3.29 (T) | mm |

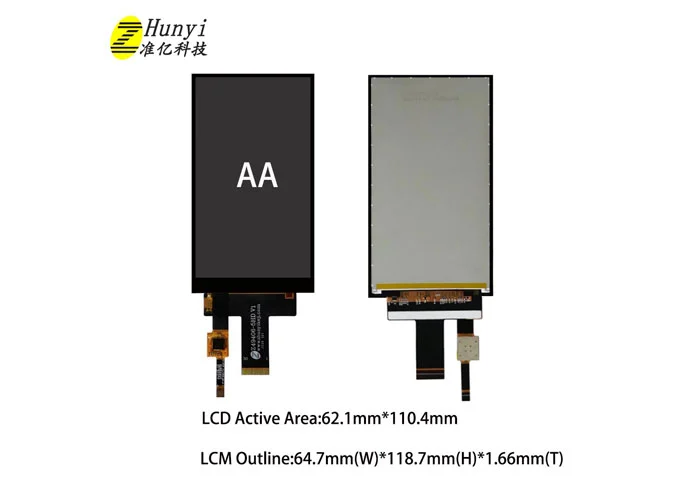

7 | LCD Active Area | 62.10 (W) × 110.40 (H） | mm |
8 | View Direction (Gray Inversion) | FULL VIEW | - |
9 | Driver IC | NT35521SH-DPBSM/3YB | - |
10 | Pixel Arrangement | RGB-Stripe | - |
11 | Display Mode | Normal Black | - |
12 | Pixel driving Element | a-Si TFT | - |
13 | LCD Transmittance | Typ.: 4.6% Min: 4.0% | - |
14 | LCD Contrast Ratio | Typ.: 900 Min: 700 | - |
15 | FPC Version | Z49406-5HD V1 | - |
16 | Interface | MIPI | - |
17 | Operating Temperature | -20°C~ 70°C | - |
18 | Storage Temperature | -30°C~ 80°C | - |
19 | Backlight Arrangement | LED/6 Series 2 Parallel (12 lights in total) | - |
20 | Luminance | 380 | nit |
21 | Weight | 0.054 | kg |
PIN NO. | PIN DEF. | FUNCTION DESC. |
1 | NC | No Connection |
2 | LCM_LEDK | POWER SUPPLY- FOR BACKLIGHT CATHODE |
3 | NC | No Connection |
4 | LCM_LEDA | POWER SUPPLY- FOR BACKLIGHT ANODE |
5 | NC | No Connection |
6 | GND | Ground |
7 | MIPI_TDN0 | Negative MIPI differential data input |
8 | MIPI_TDP0 | Positive MIPI differential data input |
9 | GND | Ground |
10 | MIPI_TDN1 | Negative MIPI differential data input |
11 | MIPI_TDP1 | Positive MIPI differential data input |
12 | GND | Ground |
13 | MIPI_TCN | Negative MIPI differential CLOCK input |
14 | MIPI_TCP | Positive MIPI differential CLOCK input |
15 | GND | Ground |
16 | MIPI_TDN2 | Negative MIPI differential data input |
17 | MIPI_TDP2 | Positive MIPI differential data input |
18 | GND | Ground |
19 | MIPI_TDN3 | Negative MIPI differential data input |
20 | MIPI_TDP3 | Positive MIPI differential data input |
21-22 | GND | Ground |
23 | NC | No Connection |
24 | GND | Ground |
25 | DSI_TE | Tearing Effect PIN |
26 | LCM_RST | LCM RESET PIN |
27 | IOVCC | I/O POWER SUPPLY |
28 | VCI | No Connection |
29-30 | GND | Ground |
PIN NO. | PIN DEF. | FUNCTION DESC. |
1 | GND | Ground |
2 | NC | No Connection |
3 | VDD | TP POWER SUPPLY |
4 | SCL | TP I2C clock (SCL) clock (SCLK) |
5 | SDA | TP I2C data (SDA) data input (MOSI) |
6 | INT | TP Interrupt PIN |
7 | RST | TP Reset PIN |
8 | GND | Ground |

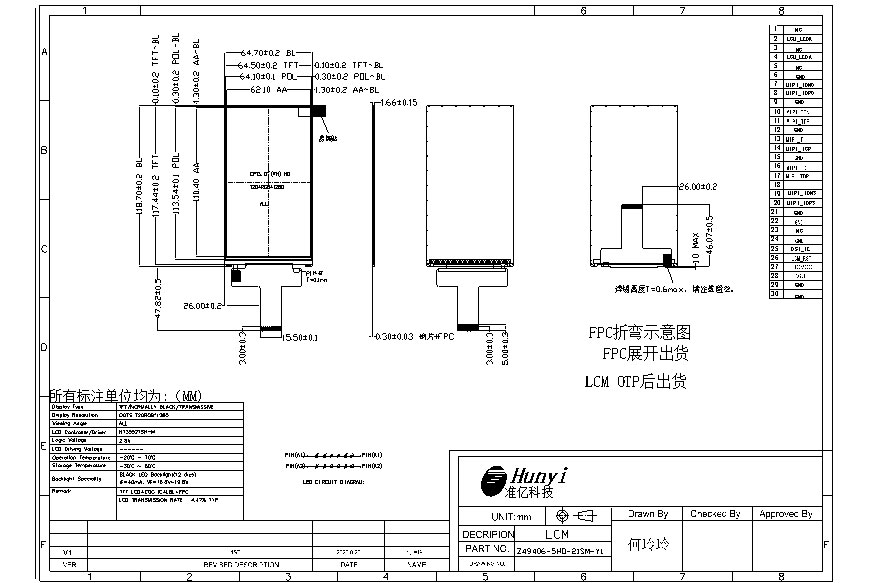

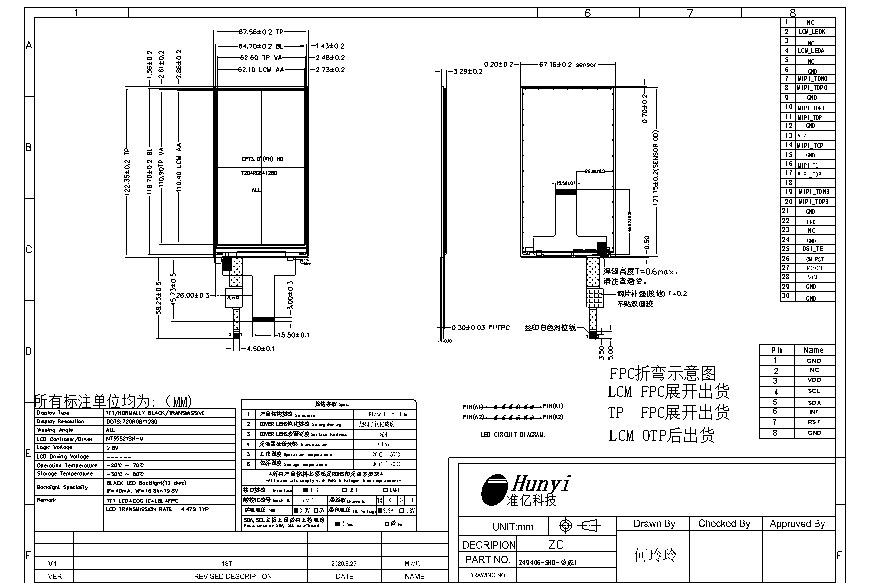

3.1 LCM
TLCM
La tecnología Zhunyi presta atención a la calidad y el servicio. Bienvenido a visitarnos y unirse para un futuro próspero.
