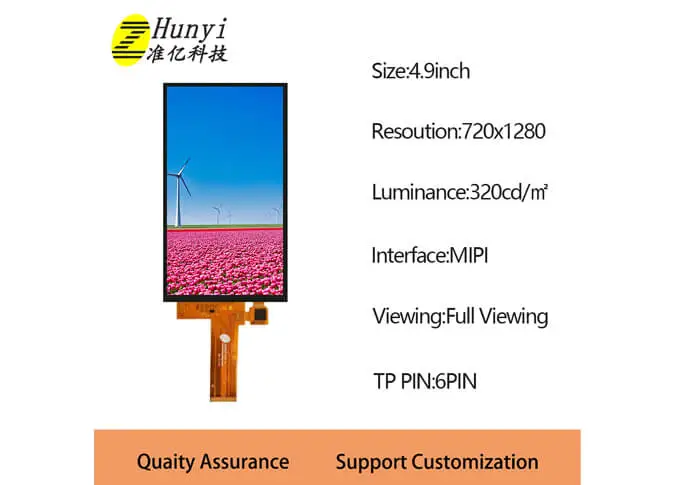

Tamaño: 4,9 pulgadas
Resolución: 720*1280
Interfaz LCD: MIPI
Interfaz táctil: IIC
Panel táctil: capacitivo
Conductor IC: GH1001
Controlador táctil: GT911
Ángulo de visión: IPS
Tipo de suministro: Fábrica/Fabricante
Certificación: ISO9001, IATF16949, ROHS, REACH

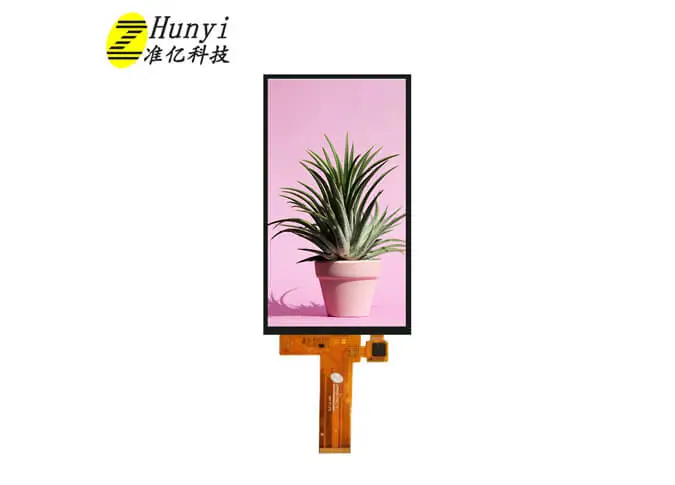

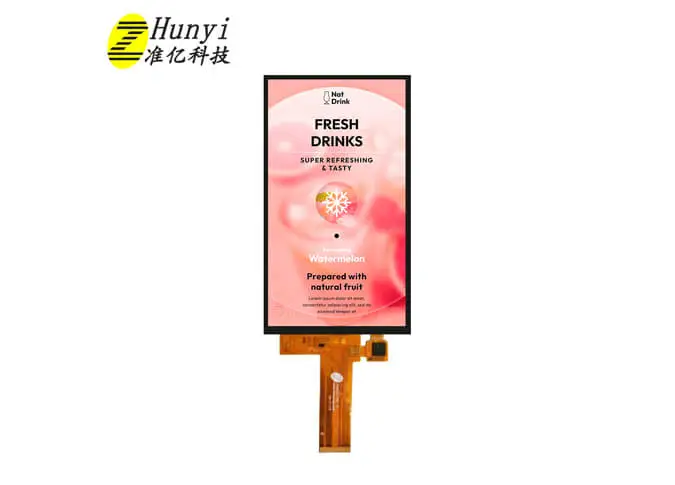

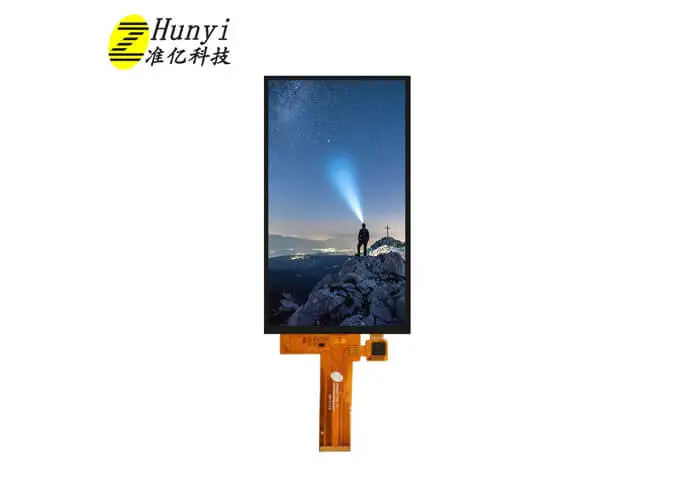

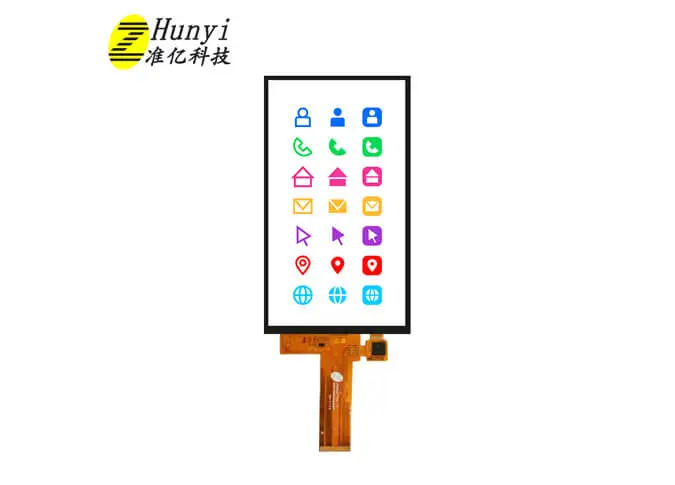

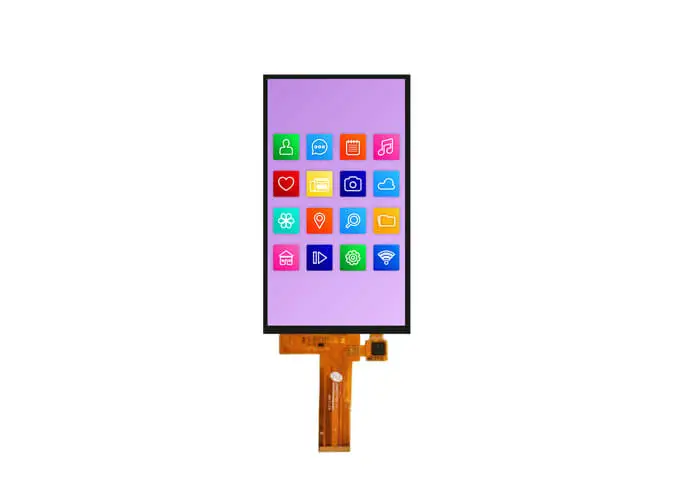

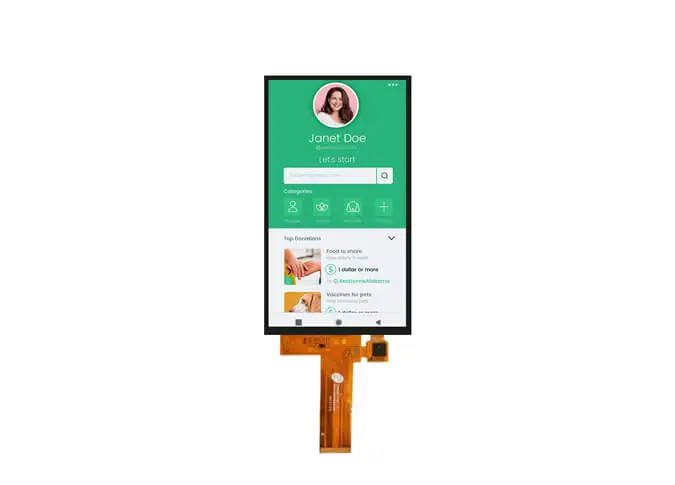

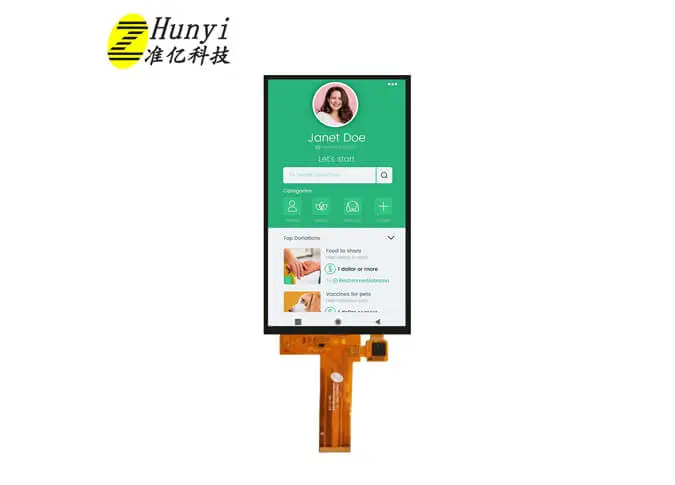

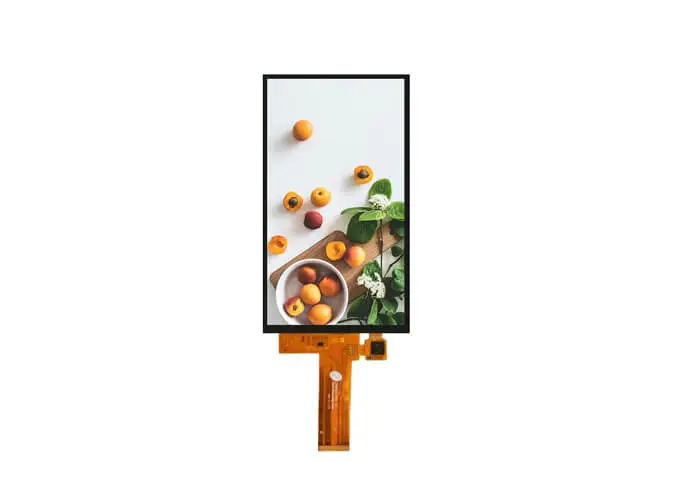

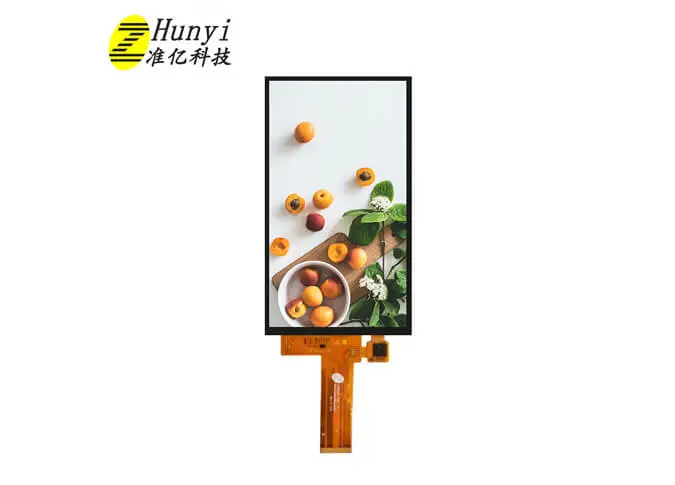

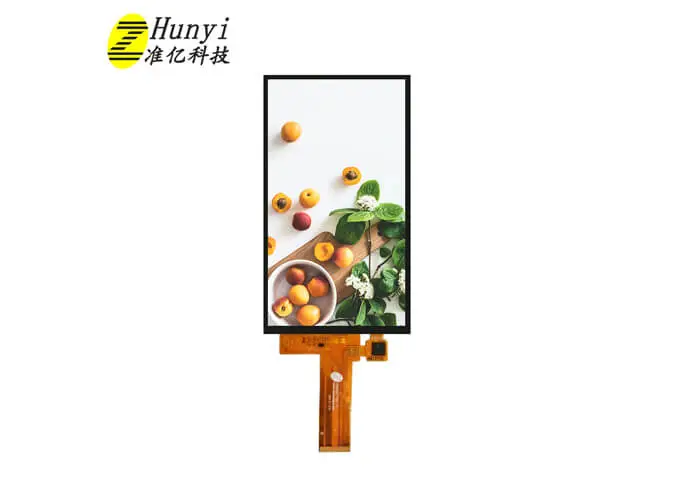

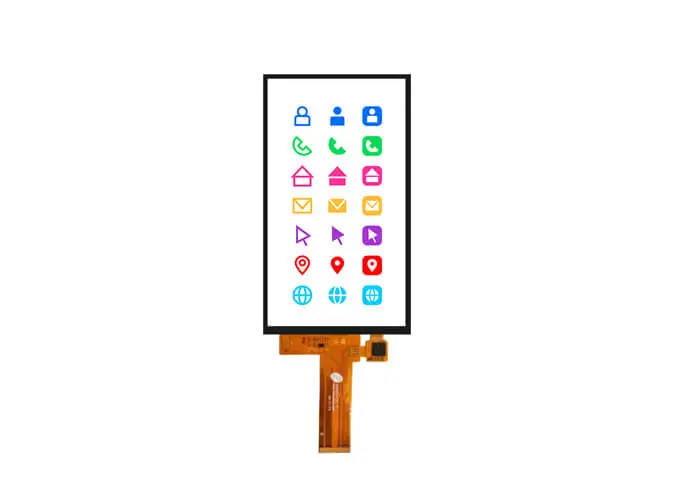

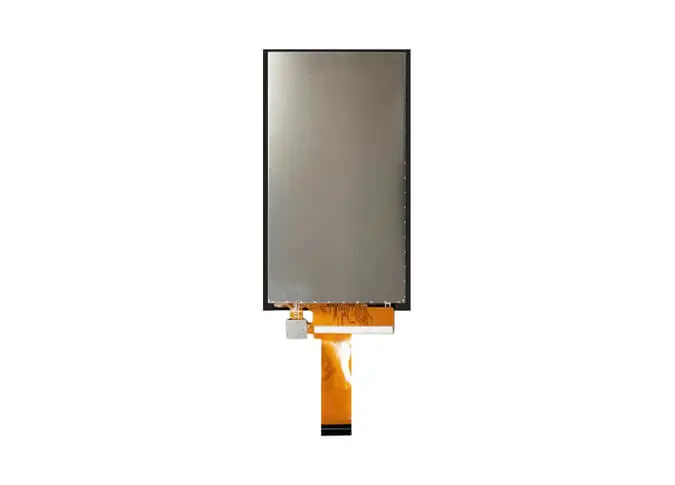

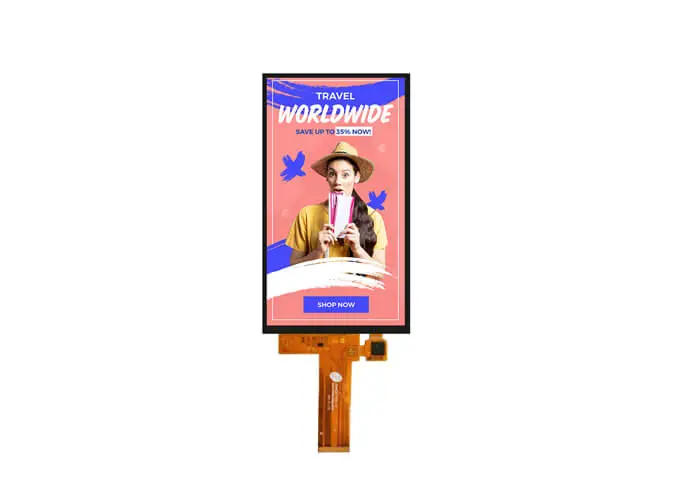

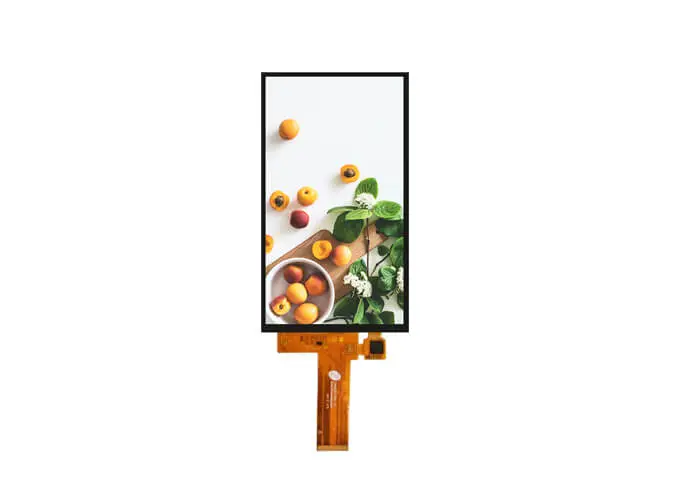

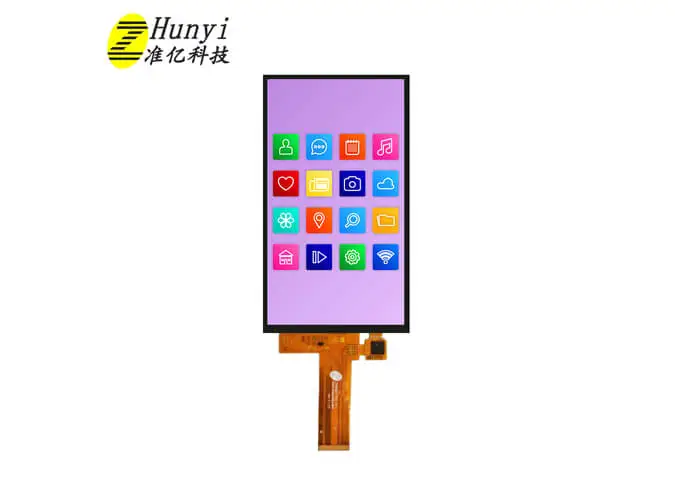

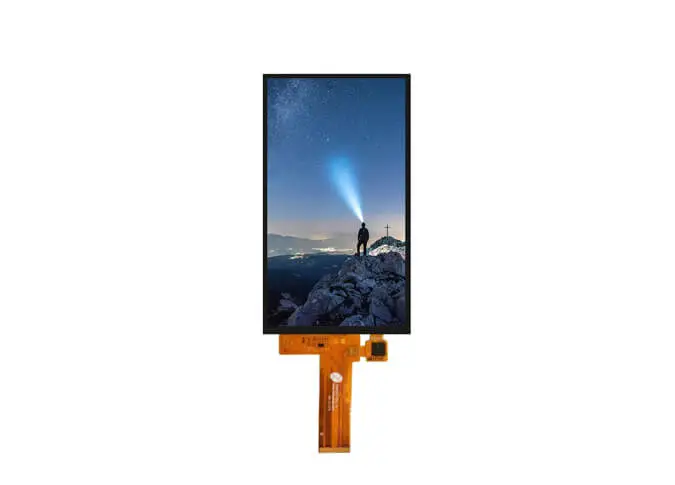

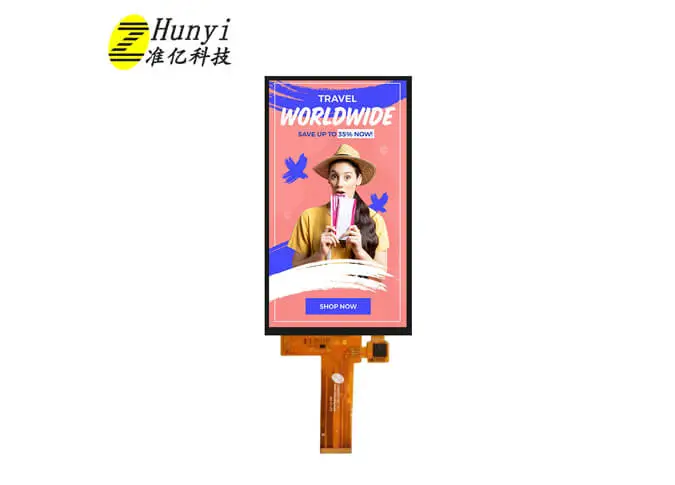

Z49420-ZC es una pantalla de cristal líquido (LCD) de transistor de película delgada (TFT) de matriz activa de color con panel táctil capacitivo, QVGA 720*1280. Este tacto TFTPantalla LCD TFT cuadradaEstá integrado GH1001 LCD controlador IC y GT911 controlador táctil. Este módulo táctil a-Si TFT LCD viene con interfaz MIPI e I2C. Multi-punto táctil.
Si usted tiene un requisito especial, como la unidad IC, interfaz, FPC, panel táctil, luz de fondo, brillo, color, etc, podemos proporcionarTFT LCD personalizadoPara ti.
Como uno de losFábricas de pantalla táctil al por mayor, Nuestra fábrica lleva a cabo 9001 ISO: 2015 e IATF16949: 2016 sistema estándar de calidad estrictamente, toda la pantalla LCD pasó ROHS, REACH Certificación.
Esta pantalla táctil LCD de 4,9 pulgadas es ampliamente utilizada en Timbre visual, billetera electrónica, POS, jugador de juegos, instrumento cosmético, electrodomésticos, escáner QRcode, casa inteligente, industria de mano, al aire libre, HMI, E-bike, vehículo eléctrico, salpicadero, velocímetro, etc.
No. | Item | Specification | Unit |
1 | Display Size (Diagonal) | 4.9 | inch |
2 | Display Resolution | 720 (H) × RGB × 1280 (V) | pixels |
3 | Pixel Pitch | 29.5 (H) × 88.5 (V) | um |
4 | LCM Outline Dimension (Without FPC） | 65.89 (W) × 119.91 (H) × 1.65 (T) | mm |
5 | LCD Outline Dimension | 65.692 (W) × 119.608 (H) × 0.4 (T) | mm |
6 | TLCM Outline Dimension (Without FPC） | 69.74 (W) × 125.53 (H) × 3.18 (T) | mm |
7 | LCD Active Area | 63.72 (W) × 113.28 (H） | mm |
8 | View Direction (Gray Inversion) | FULL VIEW | - |
9 | Driver IC | GH1001 | - |
10 | Pixel Arrangement | RGB-Stripe | - |
11 | Display Mode | Normal Black | - |
12 | Pixel driving Element | a-Si TFT | - |
13 | LCD Transmittance | Typ.: 3.2% Min: 2.72% | - |
14 | LCD Contrast Ratio | Typ.: 1200 Min: 1000 | - |
15 | FPC Version | Z49420-P30H V1 | - |
16 | Interface | MIPI | - |
17 | Operating Temperature | -20°C~ 70°C | - |
18 | Storage Temperature | -30°C~ 80°C | - |
19 | Backlight Arrangement | LED/6 Series 2 Parallel (10 lights in total) | - |
20 | Luminance | 320 | nit |
21 | Weight | 0.053 | kg |
PIN NO. | PIN DEF. | FUNCTION DESC. |
1 | VDD_5V | POWER SUPPLY (5V） |
2 | VDD_LCD | POWER SUPPLY |
3 | LCD_BL_PWM | Connecting with the external BL driver |
4 | LCD_RST | LCM RESET PIN |
5 | LEDK | POWER SUPPLY- FOR BACKLIGHT CATHODE |
6 | LEDA | POWER SUPPLY+ FOR BACKLIGHT ANODE |
7 | TOUCH_RST_L | TP RESET PIN |
8 | TOUCH_INT_H | TP Interrupt PIN |
9 | VCC3V0_TOUCH | TP POWER SUPPLY (3V) |
10 | GND | Ground |
11 | I2C4_SCL | TP I2C clock (SCL) clock (SCLK) |
12 | I2C4_SDA | TP I2C data (SDA) data input (MOSI) |
13-14 | NC | No Connection |
15-17 | GND | Ground |
18 | LCD_EN | LCM Data enable signal |
19 | CLKP | Positive MIPI differential CLOCK input |
20 | CLKN | Negative MIPI differential CLOCK input |
21 | DSI_D0P | Positive MIPI differential data input |
22 | DSI_D0N | Negative MIPI differential data input |
23 | DSI_D1P | Positive MIPI differential data input |
24 | DSI_D1N | Negative MIPI differential data input |
25-26 | NC | No Connection |
27 | DSI_D2P | Positive MIPI differential data input |
28 | DSI_D2N | Negative MIPI differential data input |
29 | DSI_D3P | Positive MIPI differential data input |
30 | DSI_D3N | Negative MIPI differential data input |
RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on. | ||
PIN NO. | PIN DEF. | FUNCTION DESC. |
1 | TOUCH_RST_L | TP RESET PIN |
2 | TOUCH_INT_H | TP Interrupt PIN |
3 | VCC3V0_TOUCH | TP POWER SUPPLY (3V) |
4 | GND | Ground |
5 | I2C4_SCL | TP I2C clock (SCL) clock (SCLK) |
6 | I2C4_SDA | TP I2C data (SDA) data input (MOSI) |

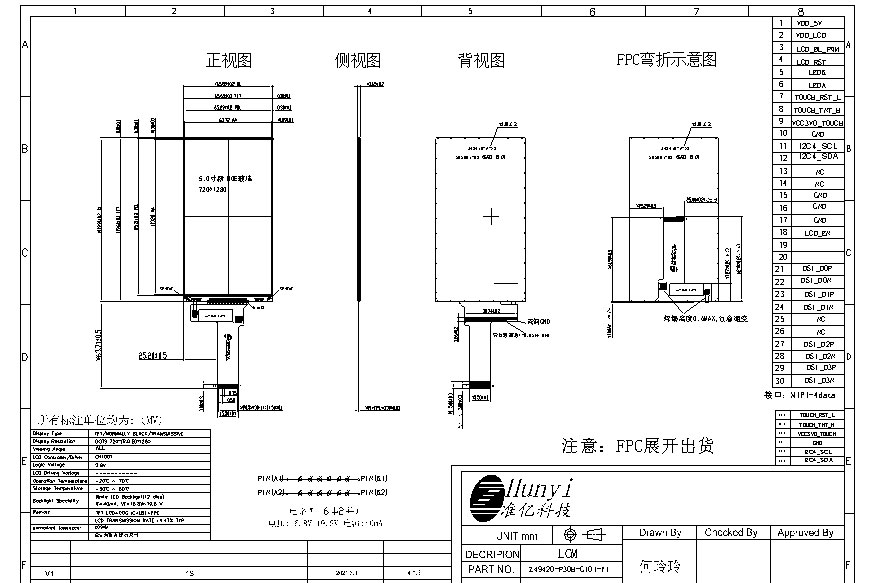

3.1 LCM

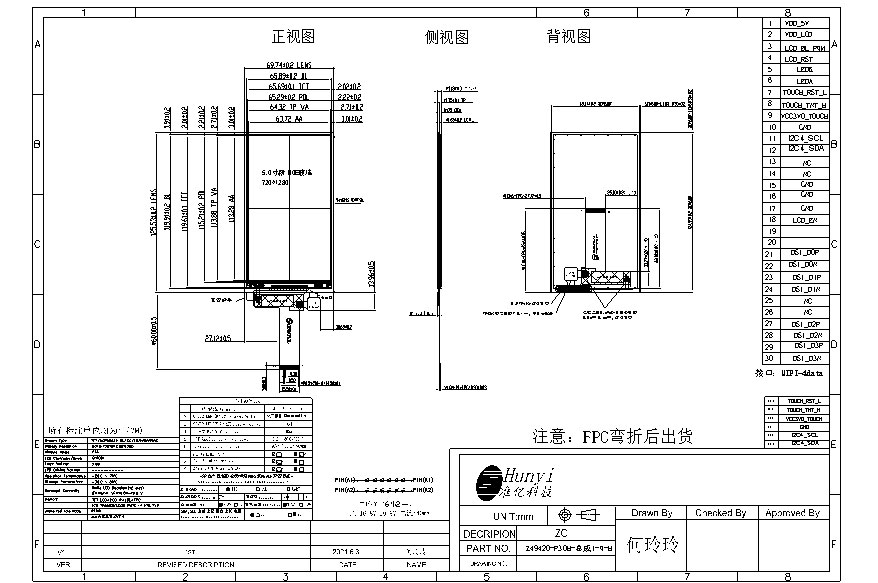

3.2 TLCM
