Tamaño: 4,9 pulgadas
Resolución: 720*1280
Interfaz LCD: MIPI
Interfaz táctil: IIC
Panel táctil: capacitivo
Conductor IC: GH1001
Controlador táctil: GT911
Ángulo de visión: IPS
Tipo de suministro: Fábrica/Fabricante
Certificación: ISO9001, IATF16949, ROHS, REACH

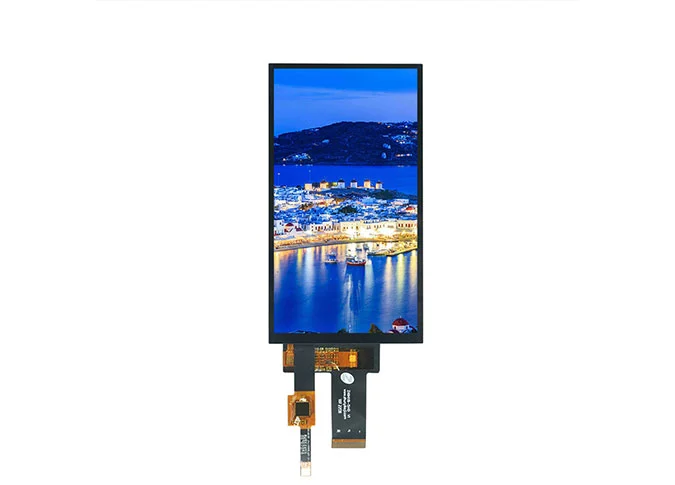

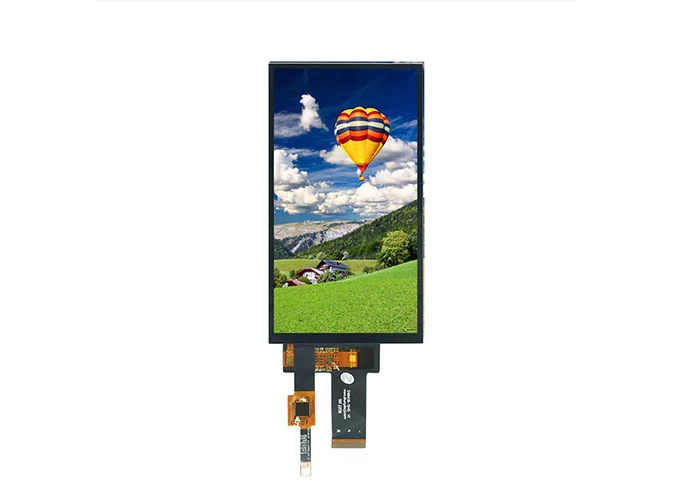

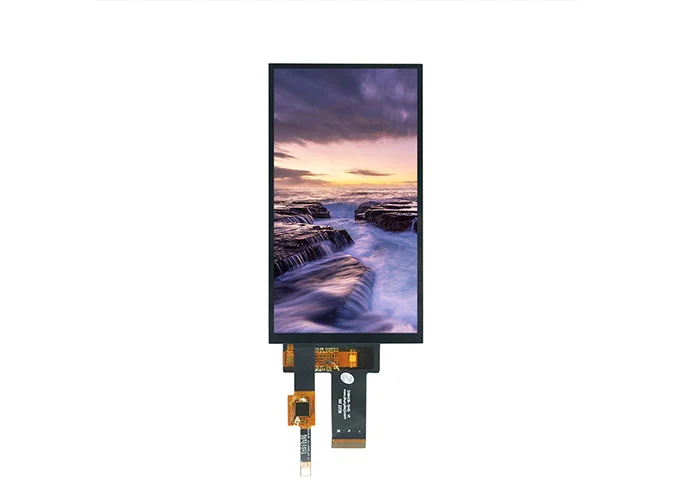

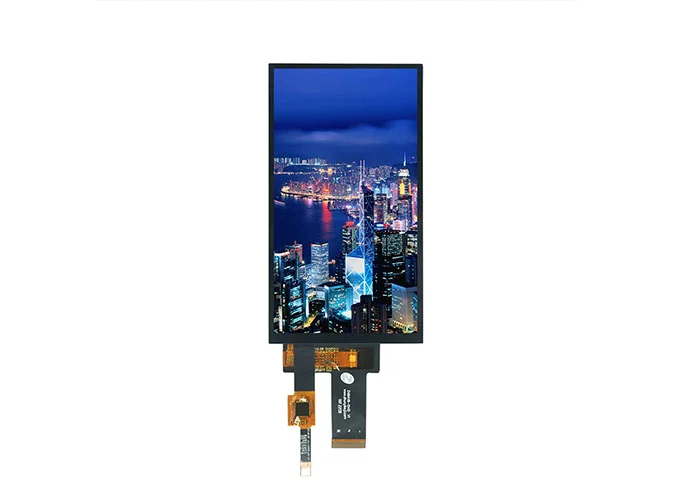

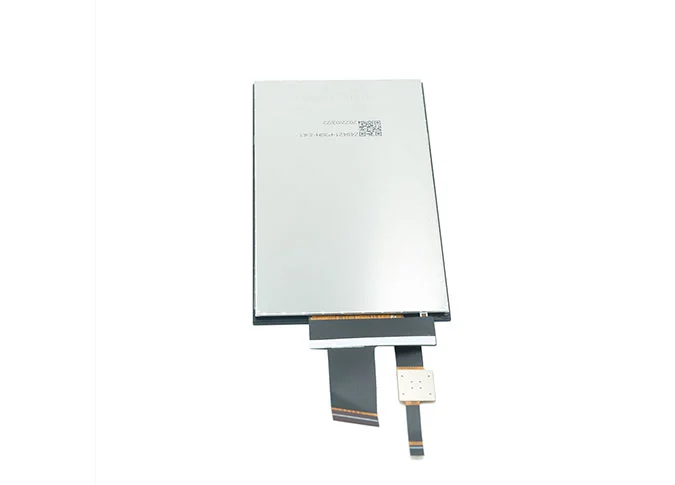

Z49421-ZC es una pantalla de cristal líquido (LCD) de transistor de película delgada (TFT) de matriz activa de color con panel táctil capacitivo, QVGA 720*1280. Esta pantalla táctil TFT es un controlador LCD integrado GH1001 IC y un controlador táctil GT911. Este módulo táctil a-Si TFT LCD viene con interfaz MIPI e I2C. Multi-punto táctil.
Si usted tiene un requisito especial, como la unidad IC, interfaz, FPC, panel táctil, luz de fondo, brillo, color, etc, podemos proporcionarLCD de forma personalizadaPara ti.
Como unProveedor de pantalla LCD cuadrada, Nuestra fábrica lleva a cabo 9001 ISO: 2015 e IATF16949: 2016 sistema estándar de calidad estrictamente, pasó toda la pantalla LCD ROHS, certificación REACH.
Este LCD táctil de 4,9 pulgadasPantalla LCD TFT al por mayorEs ampliamente utilizado en el timbre visual, E-monedero, POS, jugador del juego, instrumento cosmético, electrodoméstico, escáner QRcode, hogar inteligente, industria de mano, al aire libre, HMI, E-bike, vehículo eléctrico, salpicadero, velocímetro, etc.
No. | Item | Specification | Unit |
1 | Display Size (Diagonal) | 4.9 | inch |
2 | Display Resolution | 720 (H) × RGB × 1280 (V) | pixels |
3 | Pixel Pitch | 29.5 (H) × 88.5 (V) | um |
4 | LCM Outline Dimension (Without FPC） | 65.89 (W) × 119.91 (H) × 1.65 (T) | mm |
5 | LCD Outline Dimension | 65.69 (W) × 119.61 (H) × 0.4 (T) | mm |
6 | TLCM Outline Dimension (Without FPC） | 67.56 (W) × 122.35 (H) × 3.28 (T) | mm |
7 | LCD Active Area | 63.72 (W) × 113.28 (H) | mm |
8 | View Direction (Gray Inversion) | FULL VIEW | - |
9 | Driver IC | GH1001 | - |
10 | Pixel Arrangement | RGB-Stripe | - |
11 | Display Mode | Normal Black | - |
12 | Pixel driving Element | a-Si TFT | - |
13 | LCD Transmittance | Typ.: 3.2% Min: 2.72% | - |
14 | LCD Contrast Ratio | Typ.: 1200 Min: 1000 | - |
15 | FPC Version | Z49418-5HD V1 | - |
16 | Interface | MIPI | - |
17 | Operating Temperature | -20°C~ 70°C | - |
18 | Storage Temperature | -30°C~ 80°C | - |
19 | Backlight Arrangement | LED/6 Series 2 Parallel (12 lights in total) | - |
20 | Luminance | 400 | nit |
21 | Weight | 0.054 | kg |
PIN NO. | PIN DEF. | FUNCTION DESC. |
1 | NC | No Connection |
2 | LCM_LEDK | POWER SUPPLY- FOR BACKLIGHT CATHODE |
3 | NC | No Connection |
4 | LCM_LEDA | POWER SUPPLY- FOR BACKLIGHT ANODE |
5 | NC | No Connection |
6 | GND | Ground |
7 | MIPI_TDN0 | Negative MIPI differential data input |
8 | MIPI_TDP0 | Positive MIPI differential data input |
9 | GND | Ground |
10 | MIPI_TDN1 | Negative MIPI differential data input |
11 | MIPI_TDP1 | Positive MIPI differential data input |
12 | GND | Ground |
13 | MIPI_TCN | Negative MIPI differential CLOCK input |
14 | MIPI_TCP | Positive MIPI differential CLOCK input |
15 | GND | Ground |
16 | MIPI_TDN2 | Negative MIPI differential data input |
17 | MIPI_TDP2 | Positive MIPI differential data input |
18 | GND | Ground |
19 | MIPI_TDN3 | Negative MIPI differential data input |
20 | MIPI_TDP3 | Positive MIPI differential data input |
21-22 | GND | Ground |
23 | NC | No Connection |
24 | GND | Ground |
25 | DSI_TE | Tearing Effect PIN |
26 | LCM_RST | LCM RESET PIN |
27 | IOVCC | I/O POWER SUPPLY |
28 | VCI | POWER SUPPLY |
29-30 | GND | Ground |
RESET voltage should be consistent with IOVCC voltage, or there probably is black screen fault when power on. | ||
2.2 TP PIN
PIN NO. | PIN DEF. | FUNCTION DESC. |
1 | GND | Ground |
2 | NC | No Connection |
3 | TP_VDD | TP POWER SUPPLY |
4 | TP_SCL | TP I2C clock (SCL) clock (SCLK) |
5 | TP_SDA | TP I2C data (SDA) data input (MOSI) |
6 | TP_INT | TP Interrupt PIN |
7 | TP_RST | TP Reset PIN |
8 | GND | Ground |

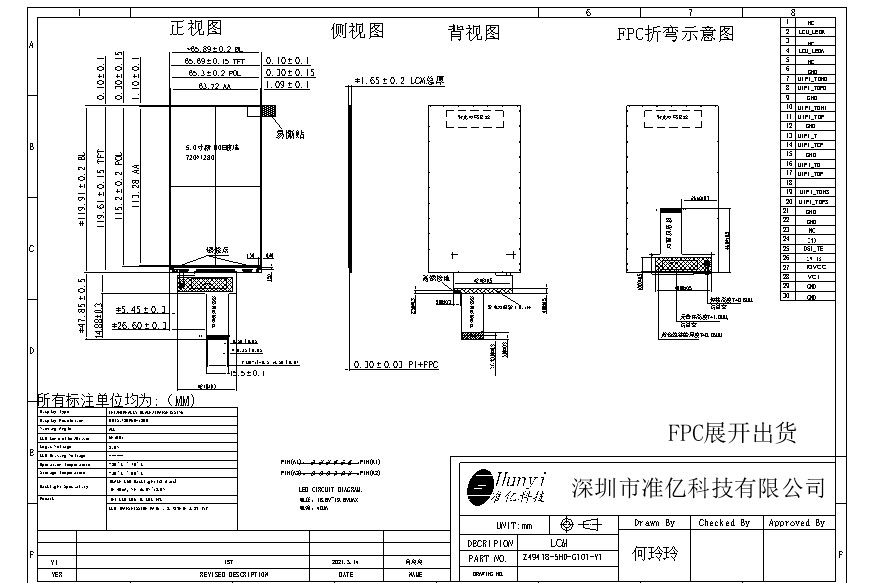

3.1 LCM

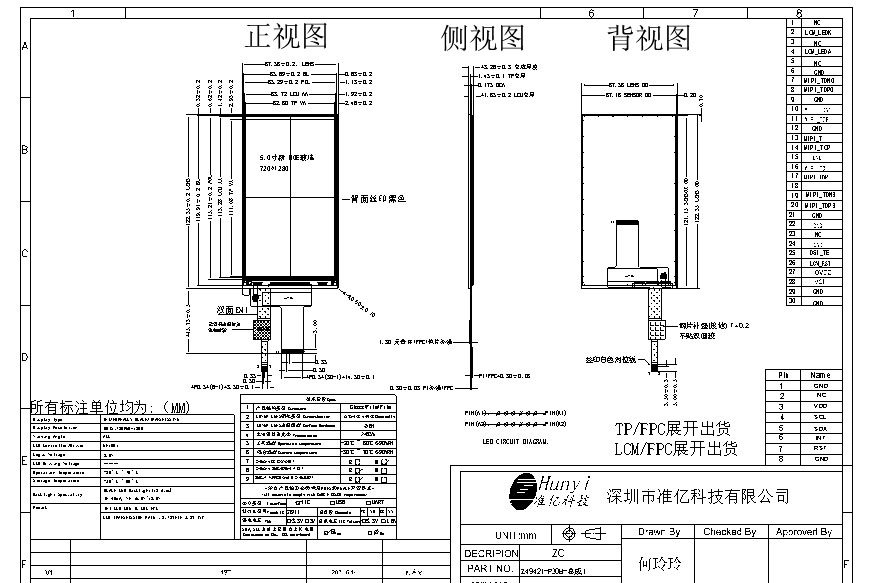

3.2 TLCM
