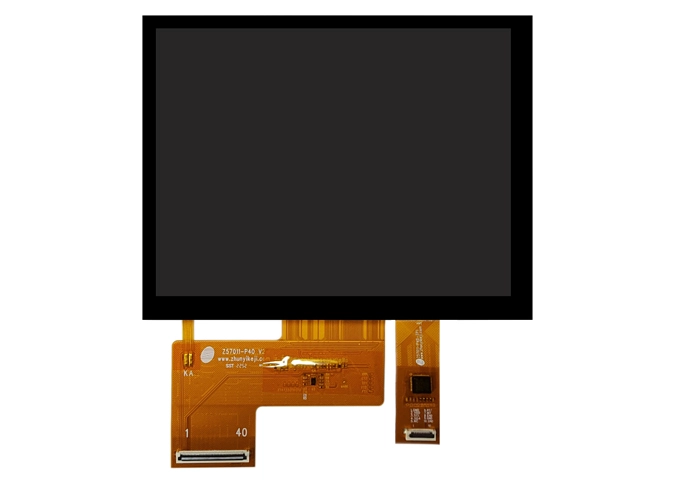

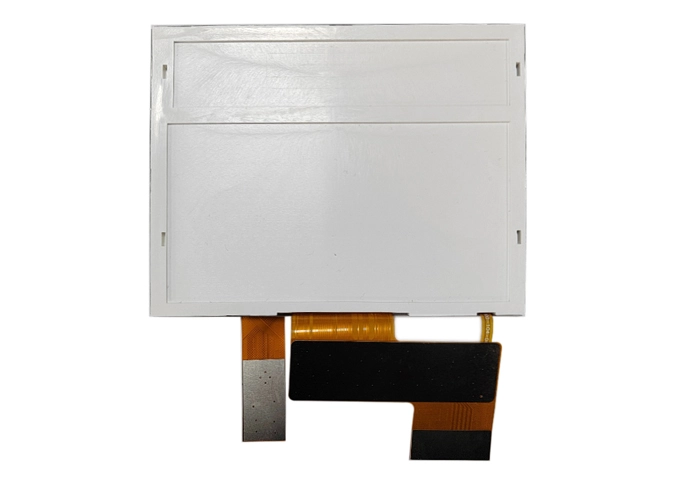

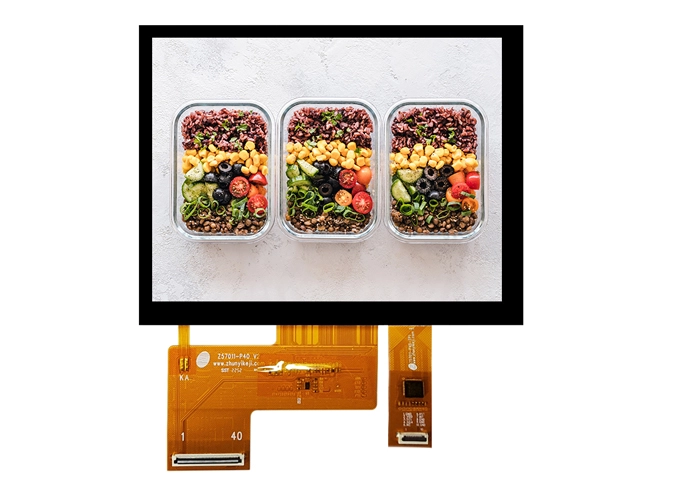

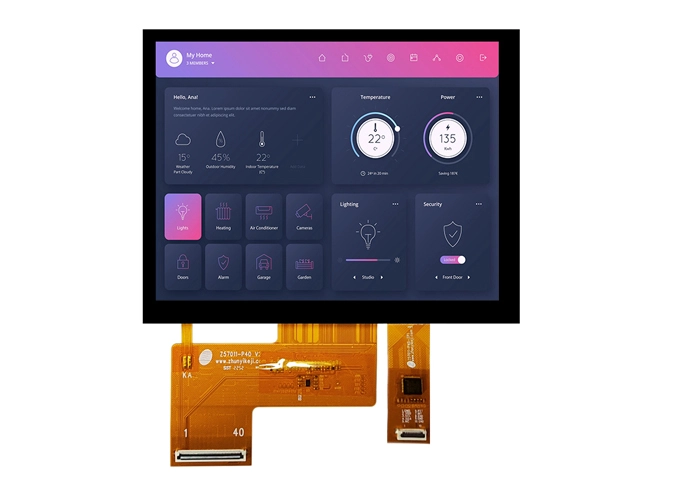

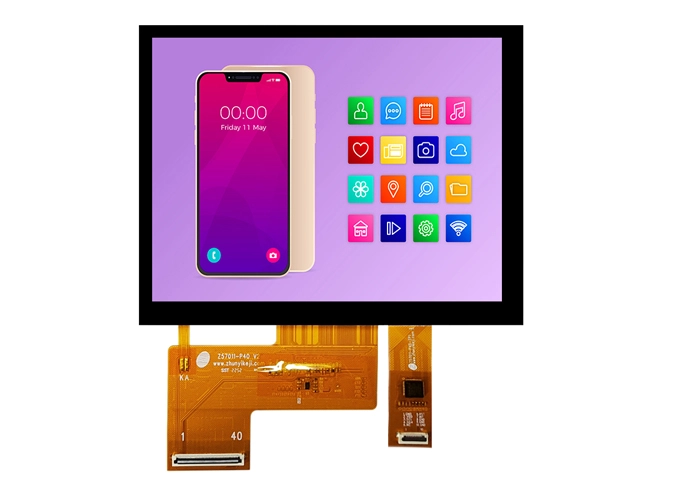

Z57011-ZC caliente pantalla táctil de 5,7 pulgadas multipunto 640*480 TFT LCD pantalla MIPI I2C interfaz

1

Display Size (Diagonal)

5.7

inch

2

Display Resolution

640(H） × RGB × 480（V）

pixels

3

Pixel Pitch

180(H）× 180（V）

um

4

CTP Outline Dimension

(Without FPC）

127.03 (W) ×98.5 (H) ×7.95 (T)

mm

5

LCD Outline Dimension

119.2(W) × 93.1 (H) × 1.0 (T)

mm

6

LCD Active Area

115.2（W） ×86.4（H）

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

JD9168S

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 5.0%  Min:4.25%

-

13

LCD Contrast Ratio

Typ.: 1200  Min:1000

-

14

FPC Version

Z57011-P40 V2

-

15

Interface

MIPI

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/3 Series 7 Parallel (21 lights in total)

-

19

Luminance

1200

nit

20

Weight

TBD

kg

1

NC

No Connection

2-3

VDD

POWER SUPPLY(3.3V)

4

NC

No Connection

5

MIPI_RST

LCM  RESET  PIN(3.3V)

6

NC

No Connection

7

GND

Ground

8

MIPI_D0-

Negative MIPI differential data input

9

MIPI_D0+

Positive MIPI differential data input

10

GND

Ground

11

MIPI_D1-

Negative MIPI differential data input

12

MIPI_D1+

Positive MIPI differential data input

13

GND

Ground

14

MIPI_CLK-

Negative MIPI differential CLOCK input

15

MIPI_CLK+

Positive MIPI differential CLOCK input

16

GND

Ground

17

MIPI_D2-

Negative MIPI differential data input

18

MIPI_D2+

Positive MIPI differential data input

19

GND

Ground

20

MIPI_D3-

Negative MIPI differential data input

21

MIPI_D3+

Positive MIPI differential data input

22

GND

Ground

23-24

NC

No Connection

25

GND

Ground

26-29

NC

No Connection

30

GND

Ground

31-32

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

33-38

NC

No Connection

39-40

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.
