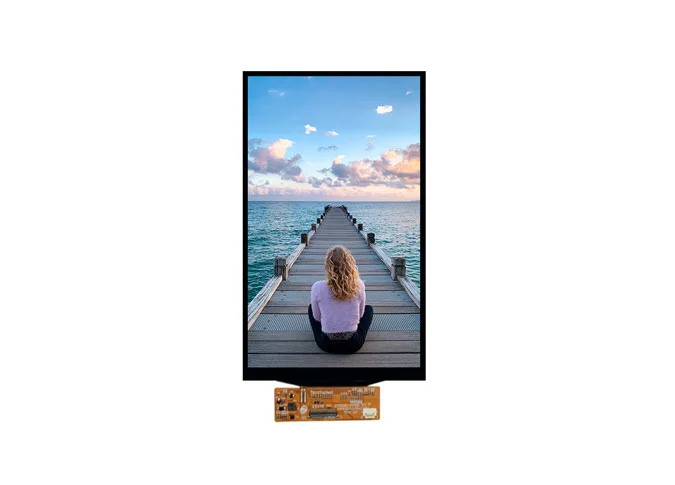

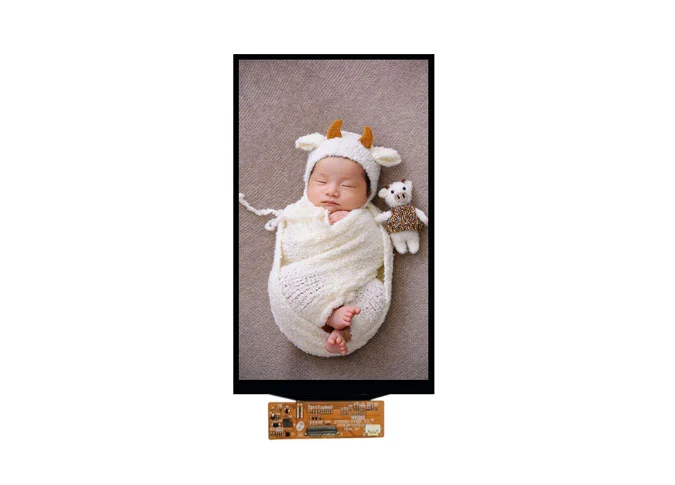

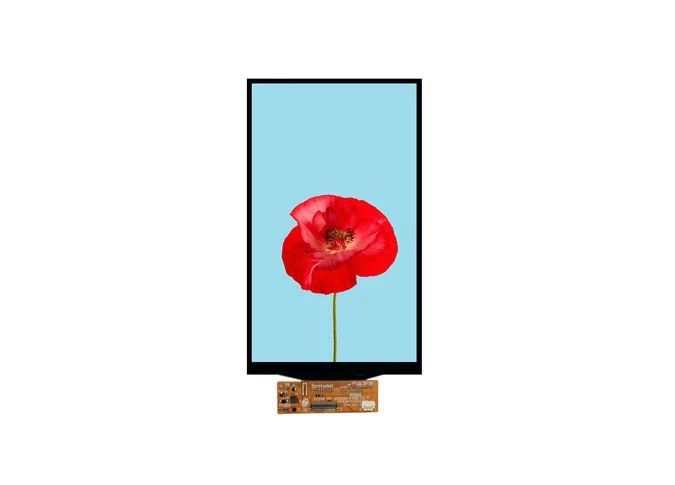

Z70010 7 pulgadas IPS LCD pantalla 720*1280 40PIN MIPI interfaz ILI9881C controlador IC

  • Tamaño: 7 pulgadas

  • Resolución: 720*1280

  • Área activa: 86,94*154,56mm

  • Interfaz: MIPI

  • Ángulo de visión: IPS

  • Brillo: 400 cd/m²

  • Panel táctil: Soporte CTP/RTP

  • Tipo de suministro: Fábrica/Fabricante

  • Certificación: ISO9001, IATF16949, ROHS, REACH

7 inch ips lcd
7 inch ips lcd

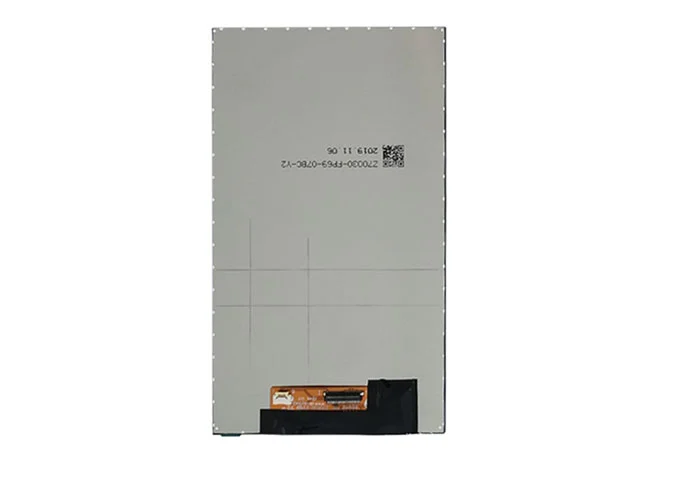

7 inch ips lcd display

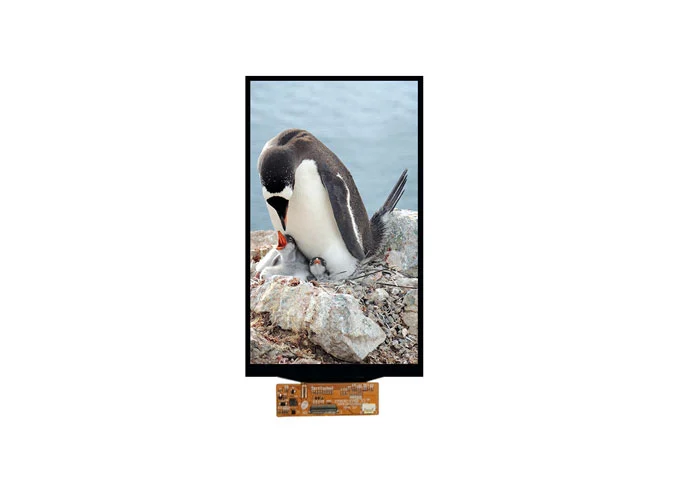

7 ips lcd
7 ips lcd display
7 ips display
7 inch ips lcd wholesale

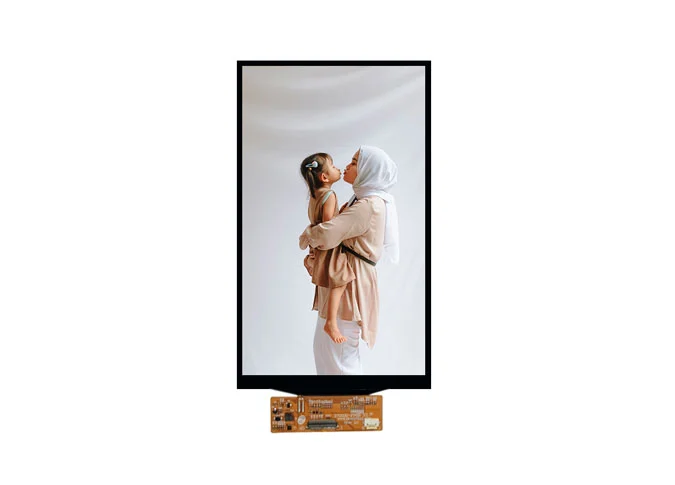

7 inch ips lcd display wholesale

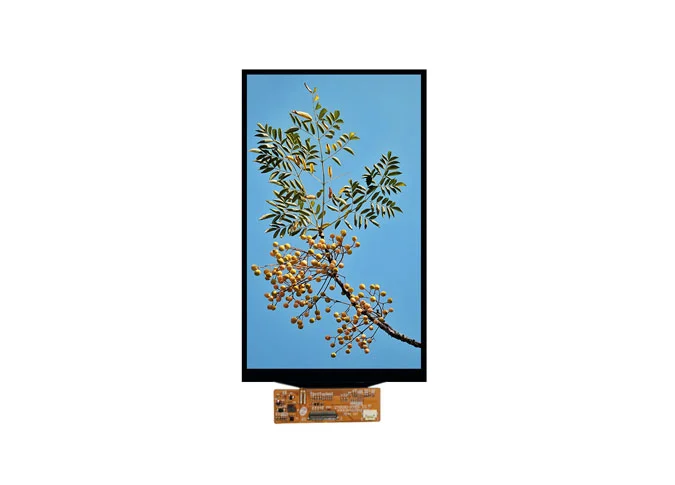

7 ips lcd display wholesale
7 ips display wholesale

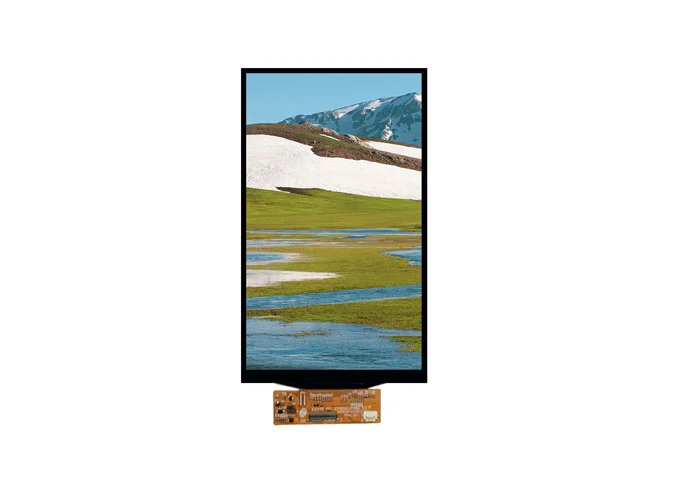

7 ips lcd wholesale

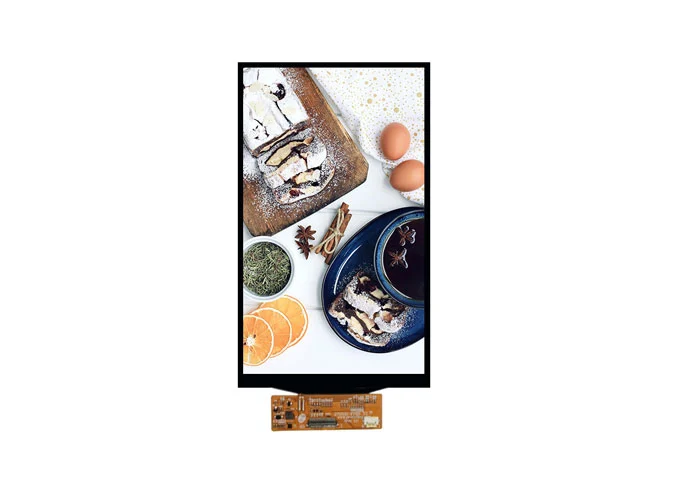

7 inch ips lcd manufacturer

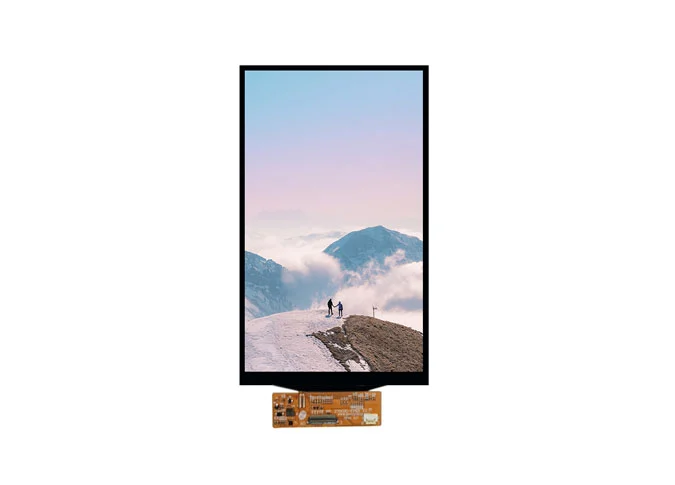

7 inch ips lcd display manufacturer
7 ips lcd display manufacturer
7 ips lcd manufacturer

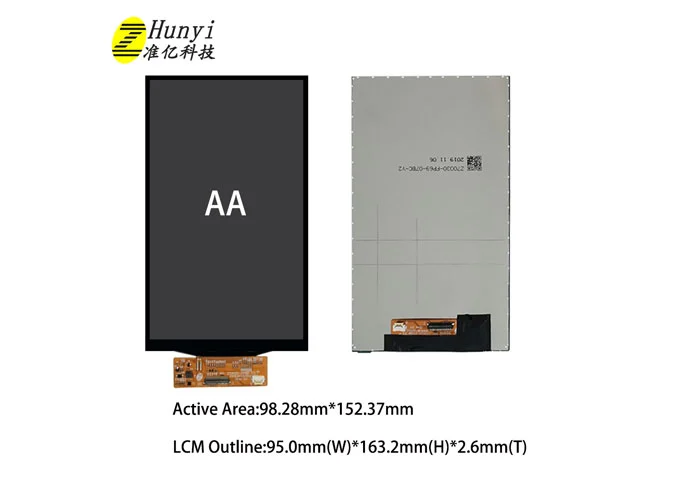

7 inch ips lcd bulk

Descripción general de Z70010 7 pulgadas IPS LCD pantalla 720*1280 40PIN MIPI interfaz ILI9881C controlador IC

1

Z70010 es una pantalla de cristal líquido (LCD) de transistor de película delgada (TFT) de matriz activa de color con resolución de 720*1280. La técnica IPS (In-plane Switching) hace que este módulo LCD de 7 "tenga un ángulo de visión más amplio. Esta pantalla LCD está integrada en ILI9881C controlador IC. Este módulo a-Si TFT LCD viene con interfaz MIPI, brillo de 400cd/m².

2

Si usted tiene requisitos especiales, como la unidad de interfaz IC, FPC, panel táctil, brillo, color, retroiluminación, etc, como unPantalla LCD personalizada fabricante China, También podemos personalizar para usted.

3

Como unChina pantalla LCD fábrica, Nuestra fábrica lleva a cabo 9001 ISO: 2015 e IATF16949: 2016 sistema estándar de calidad estrictamente, pasó toda la pantalla LCD ROHS, certificación REACH.

4

La pantalla LCD 720P de 7 pulgadas es ampliamente utilizada en el timbre médico, visual, expendedora, mechine de aprendizaje, ventilador, osciloscopio, electrodomésticos, escáner QRcode,Panel LCD para el hogar inteligente, Industria, de mano, al aire libre, HMI, E-bike, vehículo, proyector, impresora 3D, dispositivo de audio, robot, báscula eléctrica, etc.

Specifications of 7 Inch IPS LCD Display 720*1280 40PIN MIPI Interface ILI9881C Driver IC


No.

Item

Specification

Unit

1

Display Size (Diagonal)

7.0

inch

2

Display Resolution

720 (H) × RGB × 1280 (V)

pixels

3

Pixel Pitch

120.75 (H) × 120.75 (V)

um

4

LCM Outline Dimension

(Without FPC)

91.44 (W) × 165.91 (H) × 2.35 (T)

mm

5

LCD Outline Dimension

89.94 (W) × 162.56 (H) × 0.7 (T)

mm

6

CG Outline Dimension

(Without FPC)

100 (W) × 164.90 (H) × 1.60 (T)

mm

7

LCD Active Area

86.94 (W) × 154.56 (H)

mm

8

View Direction (Gray Inversion)

FULL VIEW

-

9

Driver IC

ILI9881C

-

10

Pixel Arrangement

RGB-Stripe

-

11

Display Mode

Normal Black

-

12

Pixel driving Element

a-Si TFT

-

13

LCD Transmittance

Typ.: 4.0%

-

14

LCD Contrast Ratio

Typ.: 800 Min: 640

-

15

FPC Version

Z70010-P40F-I

-

16

Interface

MIPI

-

17

TP  Interface

I2C


18

Operating Temperature

-20°C~ 60°C

-

19

Storage Temperature

-30°C~ 70°C

-

20

Backlight Arrangement

LED/7 Series 3 Parallel (21 lights in total)

-

21

Luminance

TBD

nit

22

Weight

TBD

kg


Interface Definition Description of 7 Inch IPS LCD Display 720*1280 40PIN MIPI Interface ILI9881C Driver IC


PIN NO.

PIN DEF.

FUNCTION DESC.

1-2

VCI

POWER SUPPLY(3.3V)

3-4

IOVCC

I/O POWER SUPPLY(1.8V)

5

RESET

LCM RESET PIN

6

TE

Tearing Effect PIN

7

GND

Ground

8

MIPI_0N

Negative MIPI differential data input

9

MIPI_0P

Positive MIPI differential data input

10

GND

Ground

11

MIPI_1N

Negative MIPI differential data input

12

MIPI_1P

Positive MIPI differential data input

13

GND

Ground

14

MIPI_CKN

Negative MIPI differential CLOCK input

15

MIPI_CKP

Positive MIPI differential CLOCK input

16

GND

Ground

17

MIPI_2N

Negative MIPI differential data input

18

MIPI_2P

Positive MIPI differential data input

19

GND

Ground

20

MIPI_3N

Negative MIPI differential data input

21

MIPI_3P

Positive MIPI differential data input

22

GND

Ground

22-24

NC

No Connection

25

GND

Ground

26-29

NC

No Connection

30

GND

Ground

31-32

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

33-38

NC

No Connection

39-40

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

RESET voltage should be consistent with IOVCC voltage, or there probably is black screen fault when power on.

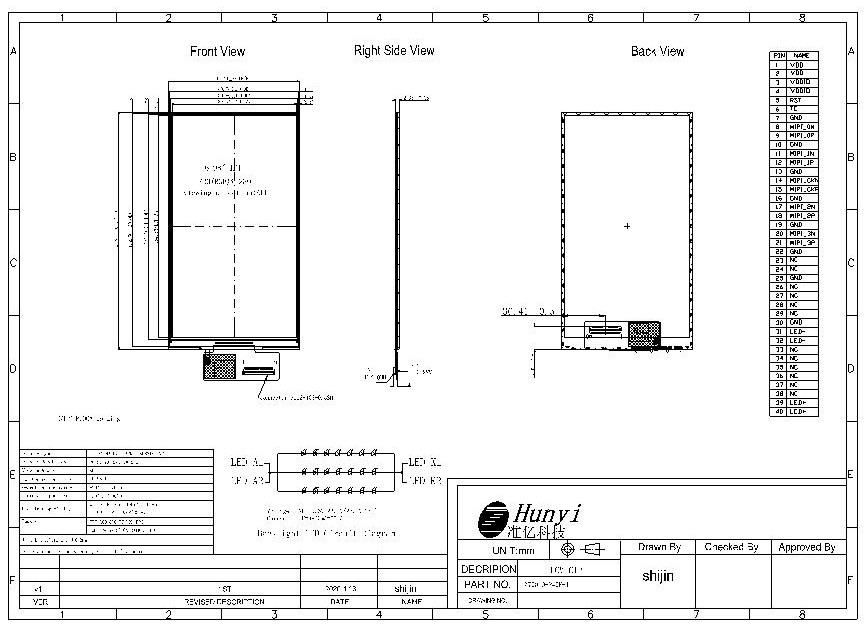

Mechanical Drawing of 7 Inch IPS LCD Display 720*1280 40PIN MIPI Interface ILI9881C Driver IC


Mechanical Drawing of 7 Inch IPS LCD Display 720*1280 40PIN MIPI Interface ILI9881C Driver IC
