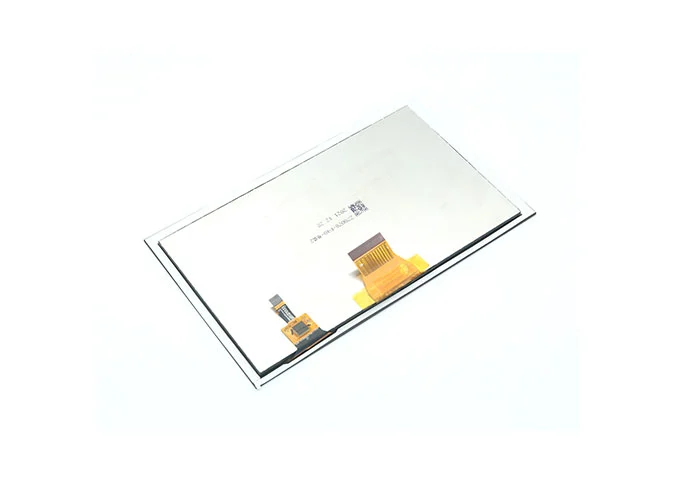

Tamaño: 7 pulgadas
Resolución: 1024*600
Interfaz LCD: MIPI
Interfaz táctil: IIC
Panel táctil: capacitivo
Driver IC: EK79007AD3 EK73217BCGA
Controlador táctil: GT911
Ángulo de visión: IPS
Tipo de suministro: Fábrica/Fabricante
Certificación: ISO9001, IATF16949, ROHS, REACH
Z70078-ZC es una pantalla de cristal líquido (LCD) de transistor de película delgada (TFT) de matriz activa de color con panel táctil capacitivo, QVGA 1024*600. Esta pantalla táctil TFT tiene un controlador LCD doble integrado IC y un controlador táctil GT911. Este a-SiMódulo LCD TFT cuadradoVienen con interfaz MIPI e I2C. Multi-punto táctil. G estructurador.
Si usted tiene un requisito especial, como la unidad IC, interfaz, FPC, panel táctil, luz de fondo, brillo, color, etc, como unPantalla de visualización LCD de la empresa china, También podemos personalizar para usted.
Como unFabricante de pantalla táctil LCD, Nuestra fábrica lleva a cabo 9001 ISO: 2015 e IATF16949: 2016 sistema estándar de calidad estrictamente, pasó toda la pantalla LCD ROHS, certificación REACH.
Esta pantalla táctil LCD horizontal de 7 pulgadas es ampliamente utilizada en médicos, timbre visual, expendedoras, mechine de aprendizaje, ventilador, osciloscopio, cocina, electrodomésticos, escáner QRcode, hogar inteligente, industria, portátil, al aire libre, HMI, E-bike, vehículo, proyector, impresora 3D, dispositivo de audio, robot, Báscula eléctrica, navegación, publicidad de ascensores, etc.
No. | Item | Specification | Unit |
1 | Display Size (Diagonal) | 7.0 | inch |
2 | Display Resolution | 1024 (H) × RGB × 600 (V) | pixels |
3 | Pixel Pitch | 50.2 (H) × 143.2 (V） | um |
4 | LCM Outline Dimension (Without FPC） | 163.7 (W) × 96.9 (H) × 2.55 (T) | mm |
5 | LCD Outline Dimension | 162.2 (W) × 95.7 (H) × 1.0 (T) | mm |
6 | TLCM Outline Dimension (Without FPC） | 177.1 (W) × 108.8 (H) × 4.71 (T) | mm |
7 | LCD Active Area | 154.21 (W) ×85.92 (H） | mm |
8 | View Direction (Gray Inversion) | FULL VIEW | - |
9 | Driver IC | EK79007AD3+EK73217BCGA | - |
10 | Pixel Arrangement | RGB-Stripe | - |
11 | Display Mode | Normal Black | - |
12 | Pixel driving Element | a-Si TFT | - |
13 | LCD Transmittance | Typ.: 5.0% Min: 4.8% | - |
14 | LCD Contrast Ratio | Typ.: 800 | - |
15 | FPC Version | Z70078-P40 V2 | - |
16 | Interface | MIPI | - |
17 | TP Interface | I2C | |
18 | Operating Temperature | -20°C~ 70°C | - |
19 | Storage Temperature | -30°C~ 80°C | - |
20 | Backlight Arrangement | LED/3 Series 8 Parallel (24 lights in total) | - |
21 | Luminance | 480 | nit |
22 | Weight | 0.177 | kg |
PIN NO. | PIN DEF. | FUNCTION DESC. |
1 | VCOM | Common Voltage (4.2V） |
2-3 | VDD | POWER SUPPLY (3.3V） |
4 | GND | Ground |
5 | NC | No Connection |
6 | STBYB | LCM Standby Mode PIN, normally pull high |
7 | GND | Ground |
8 | NIND0 | Negative MIPI differential data input |
9 | PIND0 | Positive MIPI differential data input |
10 | GND | Ground |
11 | NIND1 | Negative MIPI differential data input |
12 | PIND1 | Positive MIPI differential data input |
13 | GND | Ground |
14 | NINC | Negative MIPI differential CLOCK input |
15 | PINC | Positive MIPI differential CLOCK input |
16 | GND | Ground |
17 | NIND2 | Negative MIPI differential data input |
18 | PIND2 | Positive MIPI differential data input |
19 | GND | Ground |
20 | NIND3 | Negative MIPI differential data input |
21 | PIND3 | Positive MIPI differential data input |
22 | GND | Ground |
23-24 | NC | No Connection |
25 | GND | Ground |
26-28 | NC | No Connection |
29 | GND | Ground |
30-31 | LEDA | POWER SUPPLY+ FOR BACKLIGHT ANODE |
32-33 | LEDK | POWER SUPPLY- FOR BACKLIGHT CATHODE |
34 | GND | Ground |
35 | SHLR | Source right or left sequence control PIN |
36 | UPDN | Gate up or down scan control PIN |
37 | VGH | TFT Gate ON Voltage (18V） |
38 | VGL | TFT Gate OFF Voltage (-7V） |
39 | AVDD | Power For Analog Circuit (9.6V） |
40 | RESET | LCM RESET PIN (3.3V） |
RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on. | ||
PIN NO. | PIN DEF. | FUNCTION DESC. |
1-2 | GND | Ground |
3 | VDD | TP Input Power voltage |
4 | SDA | TP I2C data (SDA) data input (MOSI) |
5 | SCL | TP I2C clock (SCL) clock (SCLK) |
6 | GND | Ground |
7 | INT | TP Interrupt PIN |
8 | RST | TP Reset PIN |
9-10 | GND | Ground |

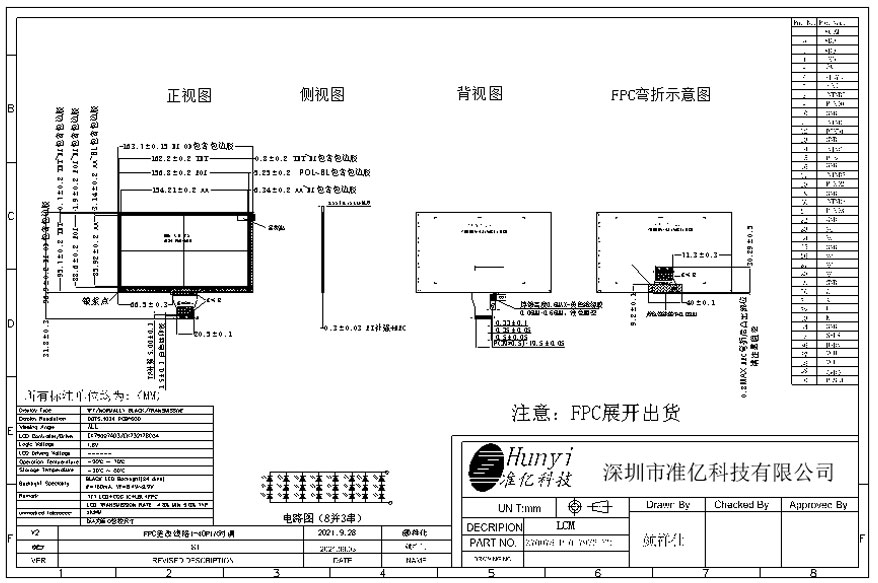

3.1 LCM

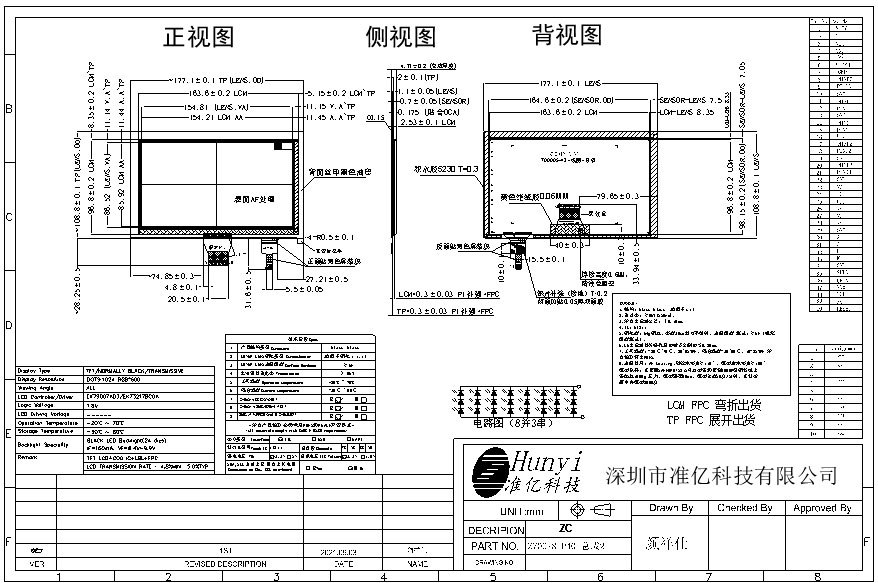

3.2 TLCM
