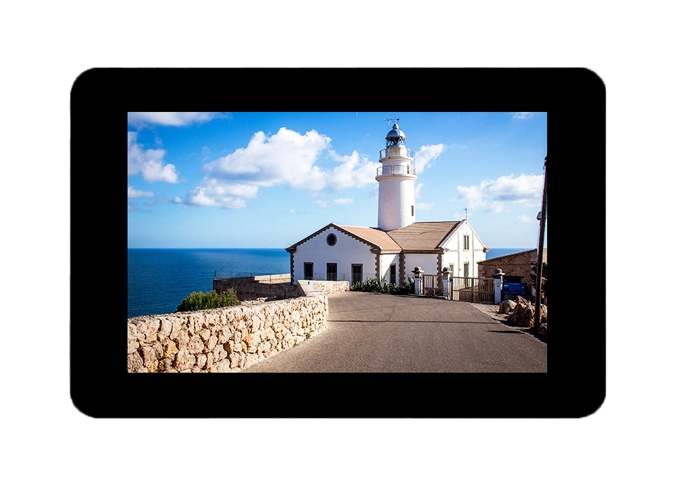

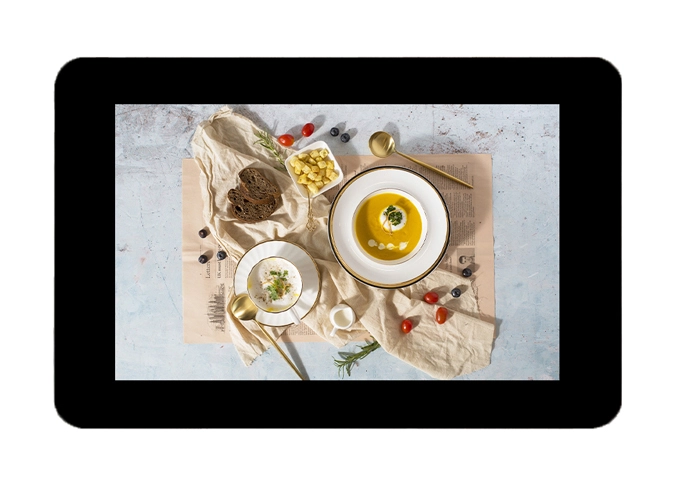

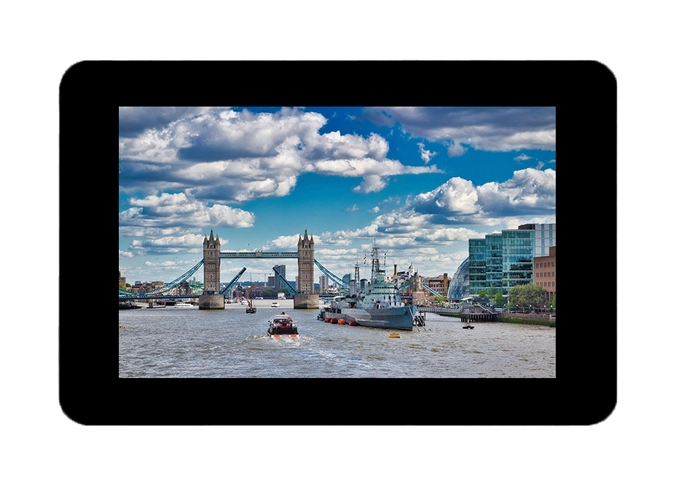

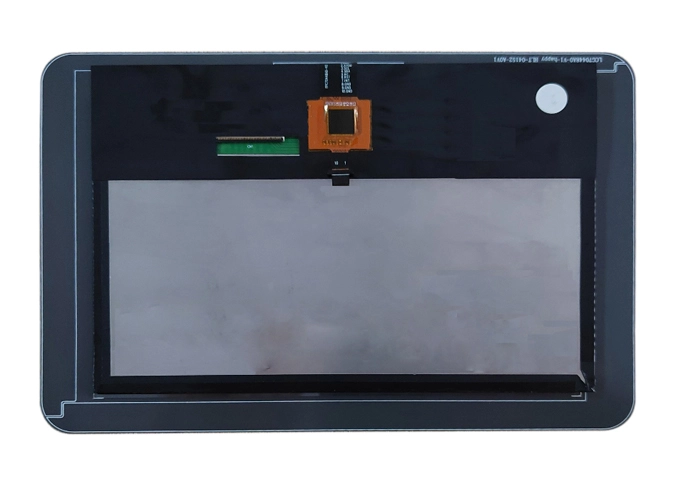

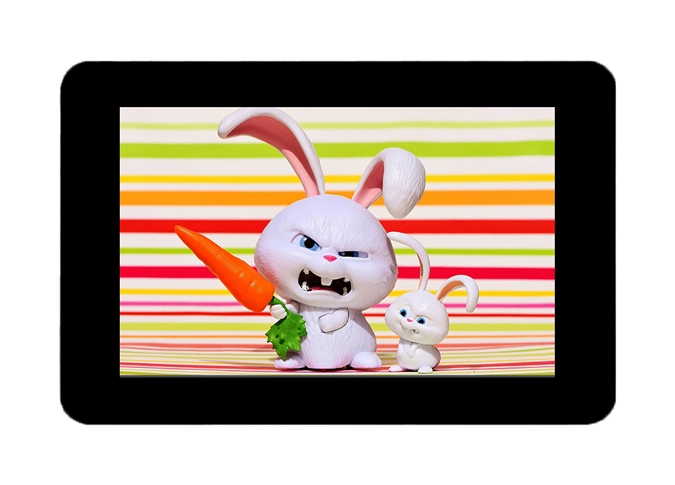

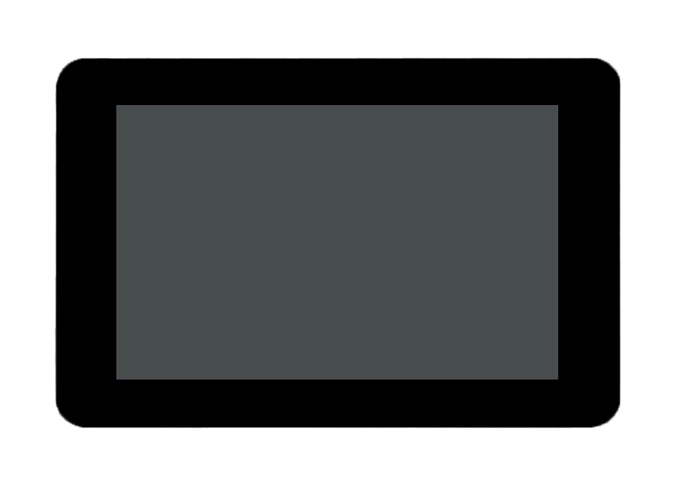

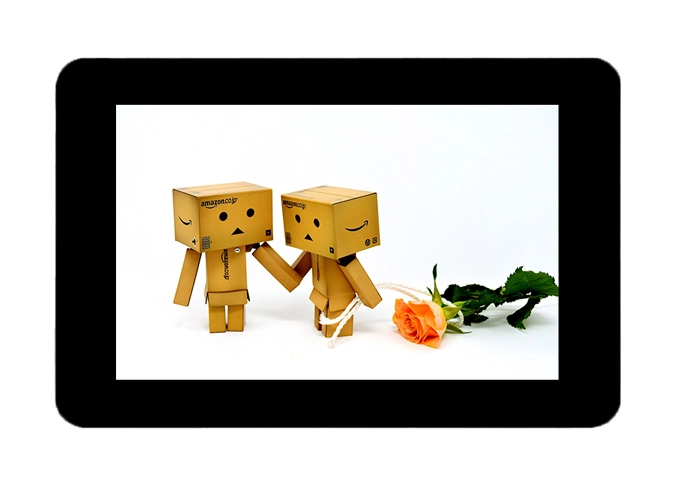

Z70083-ZC Zhunyi IPS ángulo de visión 7 pulgadas 1280*800 TFT pantalla táctil LVDS IIC interfaz

1

Display Size (Diagonal)

7.0

inch

2

Display Resolution

1280(H） × RGB × 800（V）

pixels

3

Pixel Pitch

39(H）× 117（V）

um

4

LCM Outline Dimension

(Without FPC）

161.0 (W) ×107.0 (H) ×2.5 (T)

mm

5

LCD Active Area

149.76（W） ×93.6（H）

mm

6

View Direction (Gray Inversion)

FULL VIEW

-

7

Driver IC

/

-

8

Pixel Arrangement

RGB-Stripe

-

9

Display Mode

Normal Black

-

10

Pixel driving Element

a-Si TFT

-

11

LCD Transmittance

/

-

12

LCD Contrast Ratio

Typ.: 800  Min:600

-

13

FPC Version

Z70083-P40 V1

-

14

Interface

LVDS

-

15

Operating Temperature

-10°C~ 50°C

-

16

Storage Temperature

-20°C~ 60°C

-

17

Luminance

Typ.:350

nit

18

Weight

0.101

kg

1

VCOM

Common Voltage

2-3

VDD

Power Voltage for digital circuit

4-6

NC

No connection

7

GND

Ground

8

RXIN0-

- LVDS differential data input

9

RXIN0+

+ LVDS differential data input

10

GND

Ground

11

RXIN1-

- LVDS differential data input

12

RXIN1+

+ LVDS differential data input

13

GND

Ground

14

RXIN2-

- LVDS differential data input

15

RXIN2+

+ LVDS differential data input

16

GND

Ground

17

RXCLKIN-

- LVDS differential clock input

18

RXCLKIN+

+ LVDS differential clock input

19

GND

Ground

20

RXIN3-

- LVDS differential data input

21

RXIN3+

+ LVDS differential data input

22

GND

Ground

23-24

NC

No connection

25

GND

Ground

26

NC

No connection

27

DIMO

Backlight CABC controller signal output

28

NC

No connection

29

AVDD

Power for Analog Circuit

30

GND

Ground

31-32

LEDK

LED Cathode

33-34

NC

No connection

35

VGL

Gate OFF Voltage

36

NC

No connection

37

CABC_EN

CABC Enable Input

38

VGH

Gate ON Voltage

39-40

LEDA

LED Anode

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.
