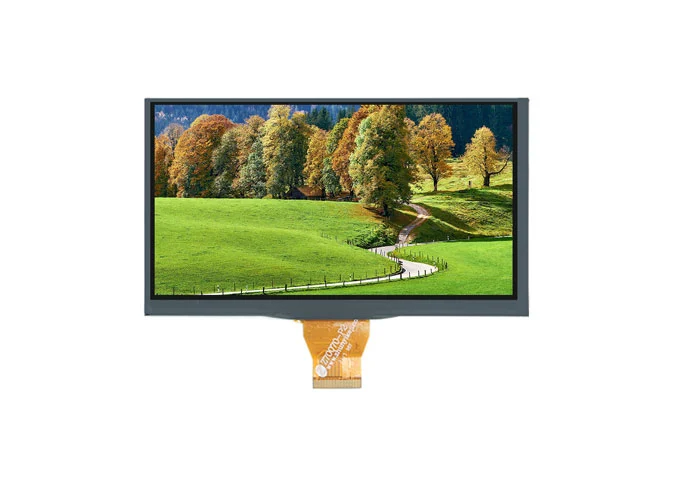

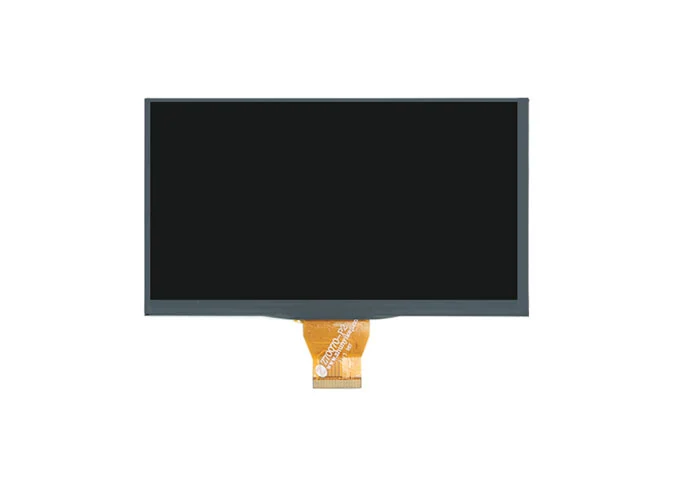

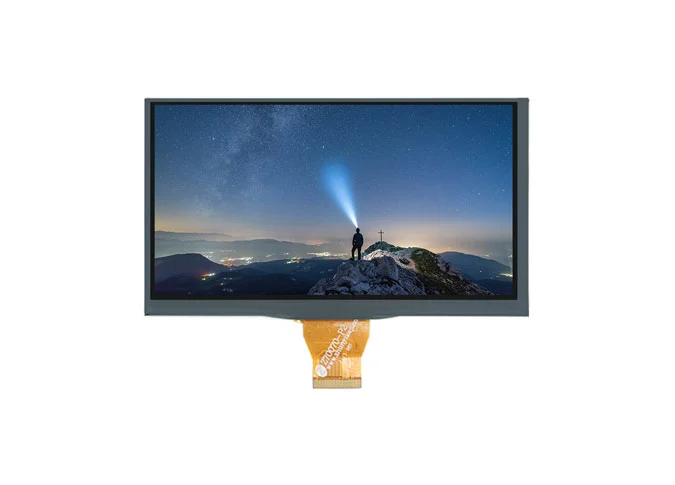

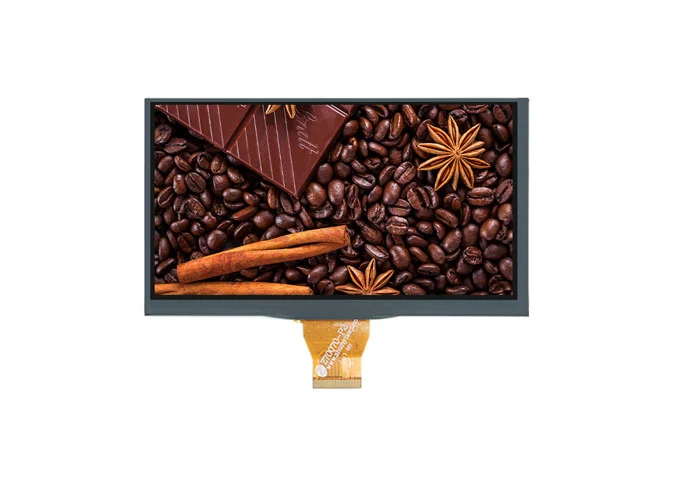

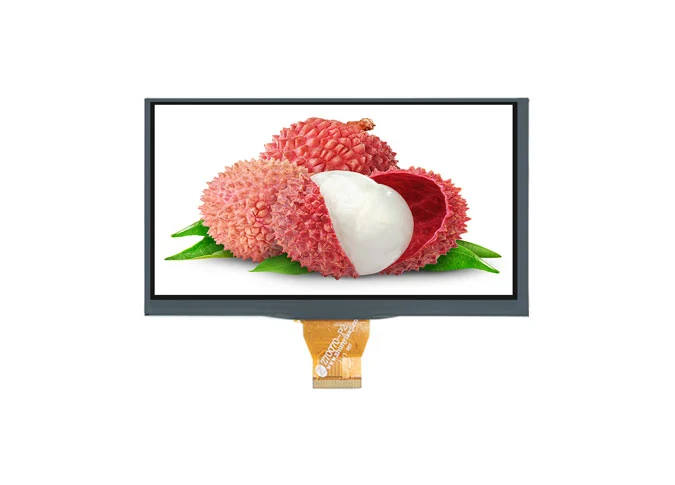

Z70103 luz solar de 7 pulgadas TFT LCD pantalla panel 1000 cd/m2 IPS ver RGB interfaz

1

Display Size (Diagonal)

7.0

inch

2

Display Resolution

1024(H)  × RGB × 600  (V)

pixels

3

Pixel Pitch

50.2(H) × 143.2  (V)

um

4

LCM Outline Dimension

(Without FPC)

164.86 (W) ×99.96 (H) ×3.6 (T)

mm

5

LCD Outline Dimension

162.2 (W) × 95.7 (H) × 1.0 (T)

mm

6

LCD Active Area

154.21  (W)  ×85.92  (H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

EK79001HN+EK73215BCGA

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 5.0%    Min:4.8%

-

13

LCD Contrast Ratio

Typ.: 800

-

14

FPC Version

Z70042-HB2509-R V1

-

15

Interface

RGB

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/6Series 7 Parallel (42 lights in total)

-

19

Luminance

1000  (typ)

nit

20

Weight

0.088

kg

1-2

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

3-4

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

5

GND

Ground

6

VCOM

Common Voltage

7

DVDD

POWER SUPPLY

8

MODE

DE / HV mode select mode    PIN

9

DE

Data Enable

10

VSD

Vertical synchronize Signal

11

HSD

Horizontal synchronize Signal

12- 19

B7-B0

DATA   BUS

20-27

G7-G0

DATA   BUS

28-35

R7-R0

DATA   BUS

36

GND

Ground

37

DCLK

Pixel clock signal in RGB I/F

38

GND

Ground

39

SHLR

Source right or left sequence control    PIN

40

UPDN

Gate up or down scan control    PIN

41

VDDE

TFT Gate ON Voltage

42

VEEG

TFT Gate OFF Voltage

43

AVDD

Power For Analog Circuit

44

RSTB

LCM    RESET    PIN

45

NC

No Connection

46

VCOM

Common Voltage

17

DITH

Dithering function enable control    PIN

48

GND

Ground

49-50

NC

No Connection

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.
