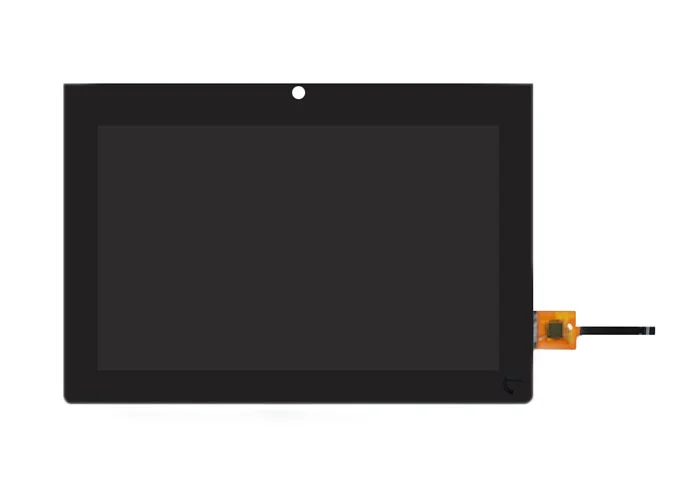

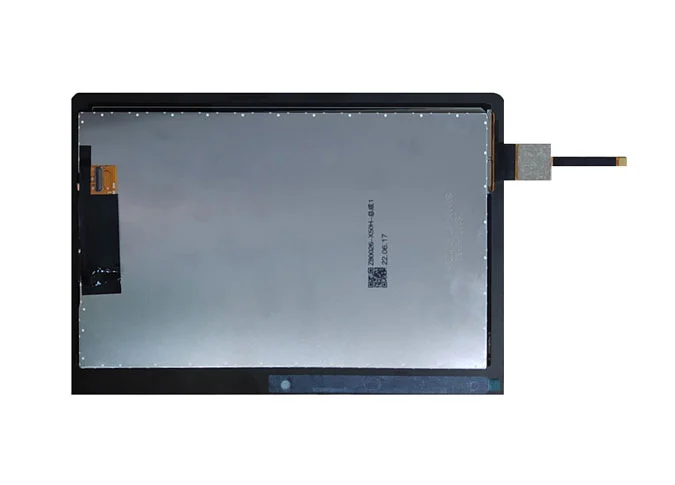

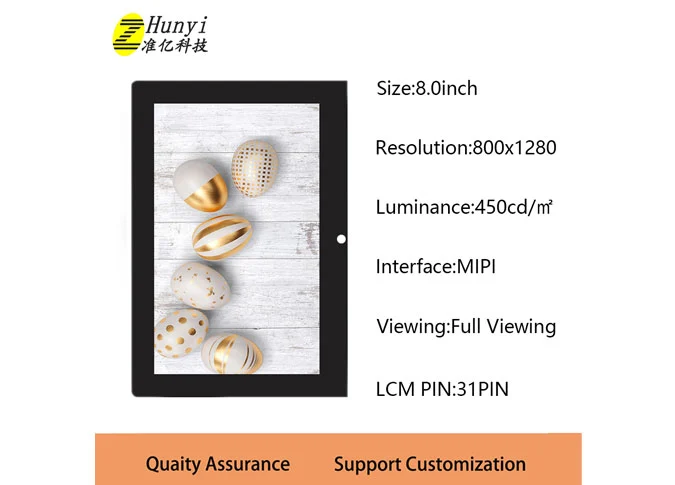

Tamaño: 8 pulgadas
Resolución: 800*1280
Interfaz LCD: MIPI
Interfaz táctil: IIC
Panel táctil: capacitivo
Conductor IC: ILI9881C-04
Controlador táctil: GT911
Ángulo de visión: IPS
Tipo de suministro: Fábrica/Fabricante
Certificación: ISO9001, IATF16949, ROHS, REACH
Si usted tiene un requisito especial, como la unidad IC, interfaz, FPC, panel táctil, luz de fondo, brillo, color, etc, como unPantalla de visualización LCD de la empresa china, También podemos personalizar para usted.
Como unFabricante de pantalla táctil LCD, Nuestra fábrica lleva a cabo 9001 ISO: 2015 e IATF16949: 2016 sistema estándar de calidad estrictamente, pasó toda la pantalla LCD ROHS, certificación REACH.
Este toque de 8 pulgadasPantalla LCD TFT cuadradaEs ampliamente utilizado en el timbre médico, visual, expendedoras, mechine de aprendizaje, ventilador, osciloscopio, cocina, electrodomésticos, hogar inteligente, industria, mano, al aire libre, E-bike, vehículo, proyector, impresora 3D, dispositivo de audio, robot, escala eléctrica, navegación, tablero, publicidad de elevadores, robot, etc.
No. | Item | Specification | Unit |
1 | Display Size (Diagonal) | 8.0 | inch |
2 | Display Resolution | 800 (H) × RGB × 1280 (V） | pixels |
3 | Pixel Pitch | 44.85 (H）× 134.55 (V） | um |

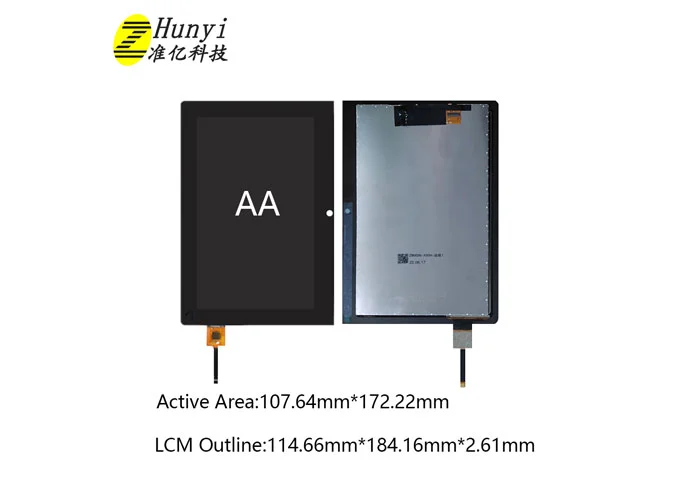

4 | LCM Outline Dimension (Without FPC） | 114.66 (W) ×184.16 (H) × 2.61 (T) | mm |
5 | LCD Outline Dimension | 112.64 (W) × 181.82 (H) × 0.8 (T) | mm |
6 | LCD Active Area | 107.64 (W）× 172.22 (H） | mm |
7 | TLCM Outline Dimension | 137.47 (W) × 198.20 (H) × 4.66 (T) | mm |
8 | View Direction (Gray Inversion) | FULL VIEW | - |
9 | Driver IC | ILI9881C-04 | - |
10 | Pixel Arrangement | RGB-Stripe | - |
11 | Display Mode | Normal Black | - |
12 | Pixel driving Element | a-Si TFT | - |
13 | LCD Transmittance | Typ.: 4.8% | - |
14 | LCD Contrast Ratio | Typ.: 1200 Min: 900 | - |
15 | FPC Version | Z80026-X50H-V1 | - |
16 | Interface | MIPI | - |
17 | Operating Temperature | -20°C~ 60°C | - |
18 | Storage Temperature | -30°C~ 70°C | - |
19 | Backlight Arrangement | LED/4 Series 7 Parallel (28 lights in total) | - |
20 | Luminance | 450 | nit |
21 | Weight | 0.197 | kg |
PIN NO. | PIN DEF. | FUNCTION DESC. |
1-3 | LEDA | POWER SUPPLY+ FOR BACKLIGHT ANODE |
4 | NC | No Connection |
5-8 | LEDK | POWER SUPPLY- FOR BACKLIGHT CATHODE |
9-10 | GND | Ground |
11 | D2P | Positive MIPI differential data input |
12 | D2N | Negative MIPI differential data input |
13 | GND | Ground |
14 | D1P | Positive MIPI differential data input |
15 | D1N | Negative MIPI differential data input |
16 | GND | Ground |
17 | CLKP | Positive MIPI differential CLOCK input |
18 | CLKN | Negative MIPI differential CLOCK input |
19 | GND | Ground |
20 | D0P | Positive MIPI differential data input |
21 | D0N | Negative MIPI differential data input |
22 | GND | Ground |
23 | D3P | Positive MIPI differential data input |
24 | D3N | Negative MIPI differential data input |
25 | GND | Ground |
26 | TE | Tearing EFFECT PIN |
27 | RESET | LCM RESET PIN |
28 | ID | LCM ID PIN |
29 | IOVCC | I/O POWER SUPPLY（1.8V） |
30-31 | VDD | POWER SUPPLY（3.3V） |
RESET voltage should be consistent with IOVCC voltage, or there probably is black screen fault when power on. | ||
PIN NO. | PIN DEF. | FUNCTION DESC. |
1 | GND | Ground |
2 | TP_SCL | TP I2C clock (SCL) clock (SCLK)(1.8V) |
3 | TP_SDA | TP I2C data (SDA) data input (MOSI)(1.8V) |
4 | TP_RESET | TP Reset PIN (1.8V) |
5 | TP_INT | TP Interrupt PIN (1.8V) |
6 | TP_VDD | TP Input Power voltage (2.8V) |
7-8 | GND | Ground |

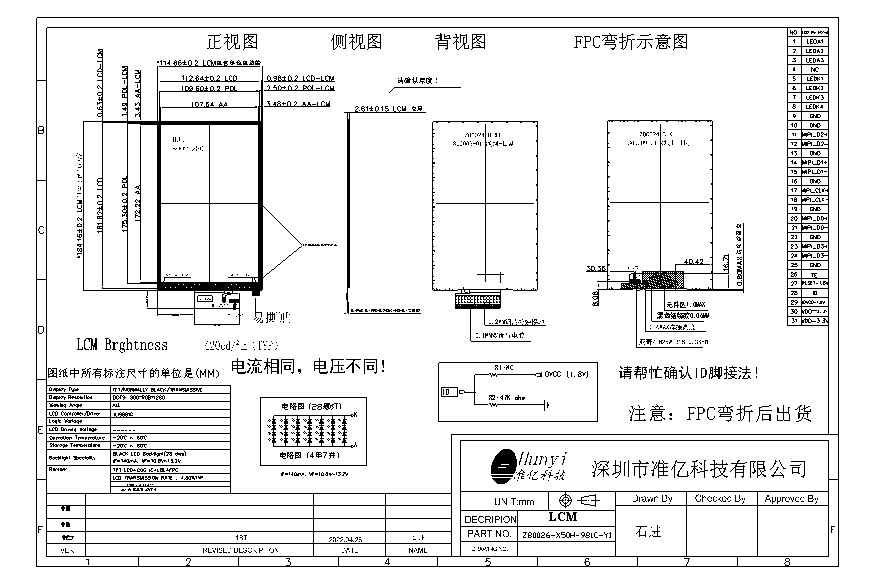

3.1 LCM
3.2 TLCM
