Z80035-P39 de pantalla LCD TFT de 8 pulgadas de alta definición 1200*1920 800NITs 39PIN MIPI interfaz

  • Tamaño: 8 pulgadas

  • Resolución: 1200*1920

  • Área activa: 107,64*172,22mm

  • Interfaz: MIPI

  • Ángulo de visión: IPS

  • Brillo: 800 cd/m²

  • Panel táctil: Soporte CTP/RTP

  • Tipo de suministro: Fábrica/Fabricante

  • Certificación: ISO9001, IATF16949, ROHS, REACH

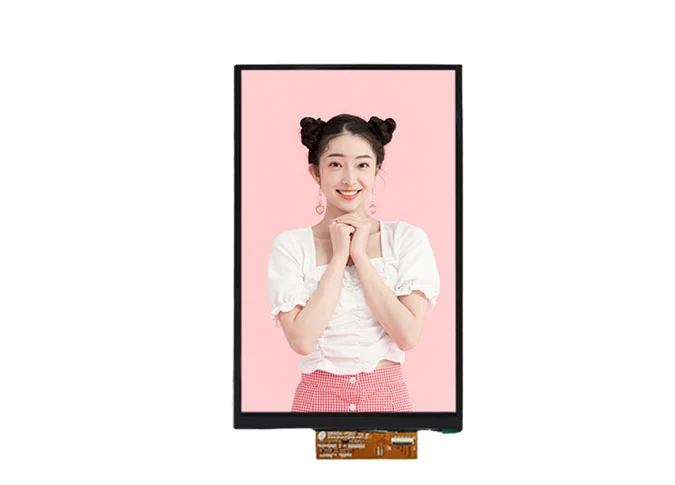

8 inch 1200 1920 lcd
8 inch 1200 1920 lcd

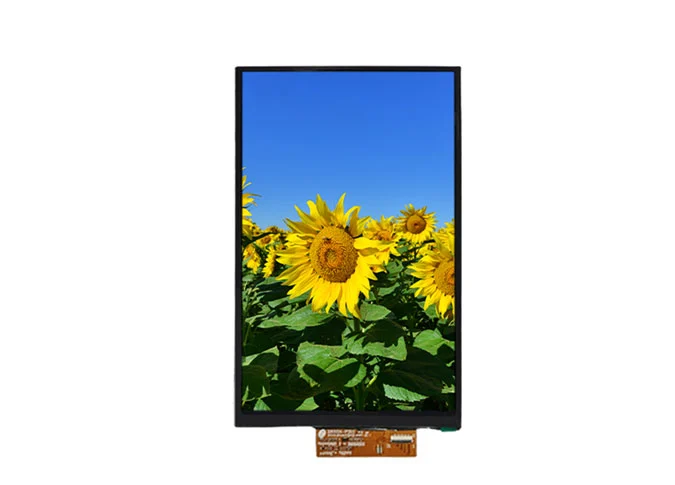

8 tft lcd

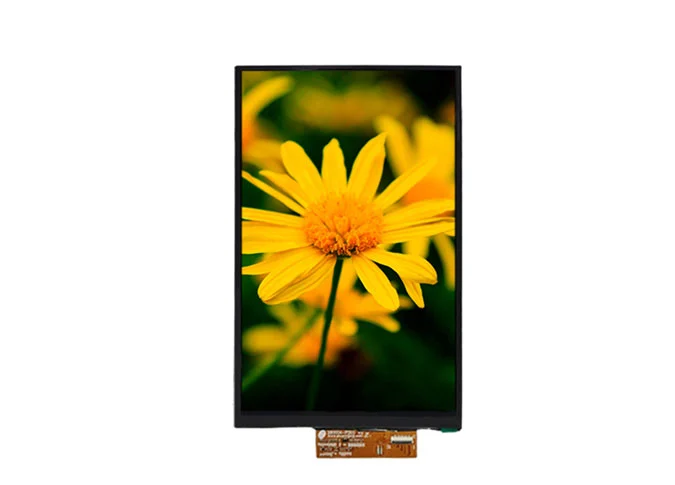

8 inch 1200 1920 display

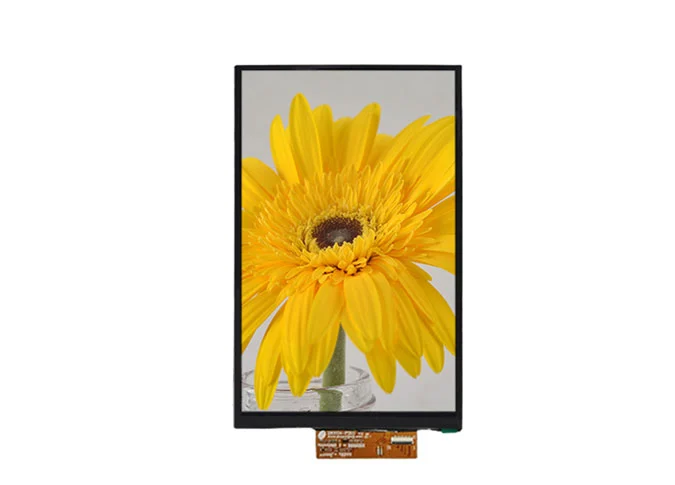

8 inch tft lcd

Descripción general de Z80035-P39 pantalla LCD TFT de 8 pulgadas de alta definición 1200*1920 800NITs 39PIN MIPI interfaz

1

Z80035 es una pantalla de cristal líquido (LCD) de transistor de película delgada (TFT) de matriz activa de color con resolución de 1200*1920. La técnica IPS (conmutación en el plano) hace que este sea de 8"Módulo cuadrado TFT LCDTienen un ángulo de visión más amplio. Este módulo a-Si TFT LCD viene con interfaz MIPI, brillo de 800cd/m².

2

Si usted tiene requisitos especiales, como unidad IC, interfaz, FPC, panel táctil, brillo, color, retroiluminación, panel táctil, etc, podemos proporcionarMódulo de pantalla LCD personalizadoPara ti.

3

Como unPantalla LCD fábricaEn China, nuestra fábrica lleva a cabo 9001 ISO: 2015 e IATF16949: 2016 sistema estándar de calidad estrictamente, pasó toda la pantalla LCD ROHS, certificación REACH.

4

La pantalla LCD de 8 pulgadas es ampliamente utilizada en médicos, timbre visual, expendedoras, mechine de aprendizaje, ventilador, osciloscopio, cocina, electrodomésticos, hogar inteligente, industria, portátil, al aire libre, e-bike, vehículo, proyector, impresora 3D, dispositivo de audio, robot, báscula eléctrica, navegación, salpicadero, Publicidad ascensor, robot, etc.

Specifications of High Definition 8 Inch TFT LCD Display 1200*1920 800nits 39PIN MIPI Interface


No.

Item

Specification

Unit

1

Display Size (Diagonal)

8.0

inch

2

Display Resolution

1200 (H) × RGB × 1920 (V)

pixels

3

Pixel Pitch

89.7 (H) × 89.7 (V)

um

4

LCM Outline Dimension

(Without FPC)

122.44 (W) × 183.67 (H) × 2.62 (T)

mm

5

CTP Outline Dimension

(Without FPC)

N/A

mm

6

LCD Outline Dimension

111.64 (W) × 180.28 (H) × 0.8 (T)

mm

7

LCD Active Area

107.64 (W) × 172.22 (H)

mm

8

View Direction (Gray Inversion)

FULL VIEW

-

9

Driver IC

OTA7290B

-

10

Pixel Arrangement

RGB-Stripe

-

11

Display Mode

Normal Black

-

12

Pixel driving Element

a-Si TFT

-

13

LCD Transmittance

/

-

14

LCD Contrast Ratio

Typ.: 1200 Min: 800

-

15

FPC Version

Z80035-P39 V1

-

16

Interface

MIPI

-

17

Operating Temperature

-20°C~ 70°C

-

18

Storage Temperature

-30°C~ 80°C

-

19

Backlight Arrangement

LED/6 Series 6 Parallel (36 lights in total)

-

20

Luminance

Typ.:800

nit

21

Weight

/

kg


Interface Definition Description of High Definition 8 Inch TFT LCD Display 1200*1920 800nits 39PIN MIPI Interface


PIN NO.PIN DEF.FUNCTION DESC.
1VDDPOWER SUPPLY
2VDDIOI/O POWER SUPPLY
3RSTBLCM RESET PIN
4NCNo Connection
5GNDGround
6MIPI_D3NNegative MIPI differential data input
7MIPI_D3PPositive MIPI differential data input
8GNDGround
9MIPI_D2NNegative MIPI differential data input
10MIPI_D2PPositive MIPI differential data input
11GNDGround
12MIPI_D1NNegative MIPI differential data input
13MIPI_D1PPositive MIPI differential data input
14GNDGround
15MIPI_D0NNegative MIPI differential data input
16MIPI_D0PPositive MIPI differential data input
17GNDGround
18MIPI_CLKNNegative MIPI differential CLOCK input
19MIPI_CLKPPositive MIPI differential CLOCK input
20GNDGround
21-22LEDKPOWER SUPPLY- FOR BACKLIGHT CATHODE
23-24LEDAPOWER SUPPLY- FOR BACKLIGHT ANODE
25GNDGround
26IDLCM ID PIN
27TETearing Effect PIN
28NCNo Connection
29GNDGround
30NCNo Connection
31GNDGround
32CTP_VDDTP POWER SUPPLY
33NCNo Connection
34CTP_INTTP Interrupt PIN
35CTP_RSTTP Reset PIN
36CTP_SDATP I2C data (SDA) data input (MOSI)
37CTP_SCLTP I2C clock (SCL) clock (SCLK)
38NCNo Connection
39GNDGround
RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.
