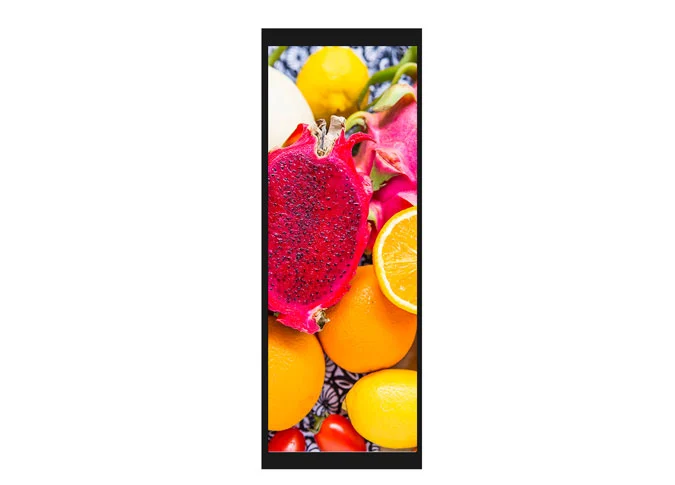

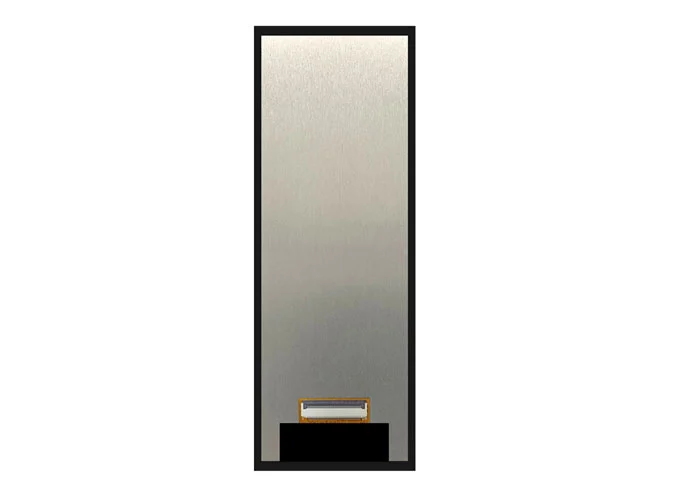

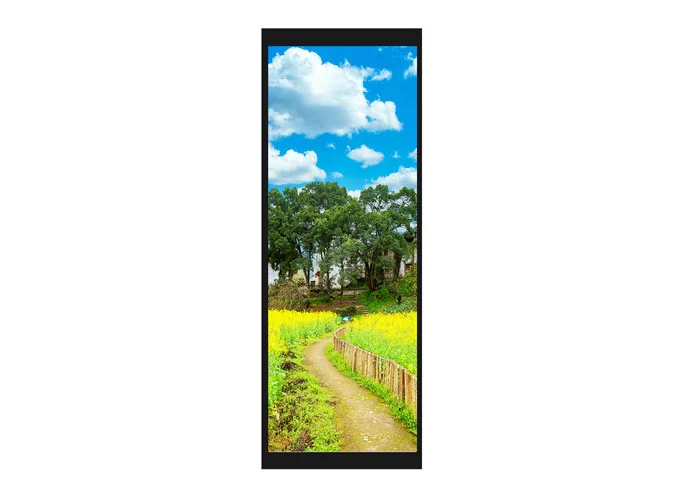

Pantalla de automóvil Z88001 de 8,8 pulgadas 480*1920 TFT LCD Panel de pantalla MIPI Interfaz 550cd/m2 OTA7290B

1

Display Size (Diagonal)

8.8

inch

2

Display Resolution

480(H)  × RGB × 1920  (V)

pixels

3

Pixel Pitch

114(H) × 114  (V)

um

4

LCM Outline Dimension (Without FPC)

64. 10 (W) ×231.20 (H) ×4.70 (T)

mm

5

LCD Active Area

54.72  (W)  ×218.88  (H)

mm

6

View Direction (Gray Inversion)

FULL VIEW

-

7

Driver IC

OTA7290B

-

8

Pixel Arrangement

RGB-Stripe

-

9

Display Mode

Normal Black

-

10

Pixel driving Element

a-Si TFT

-

11

LCD Transmittance

Typ.: 4.2%

-

12

LCD Contrast Ratio

Typ.: 800    Min:640

-

13

FPC Version

Z88001 V1

-

14

Interface

MIPI

-

15

Operating Temperature

-20°C~ 70°C

-

16

Storage Temperature

-30°C~ 80°C

-

17

Backlight Arrangement

LED/5 Series 2 Parallel (10 lights in total)

-

18

Luminance

Typ.:550

nit

19

Weight

/

kg

1

GND

Power Ground

2

NC

NC

3~4

LEDA

Power supply for backlight anode input terminal.

5

NC

NC

6~7

LEDK

Power supply for backlight cathode input terminal.

8

NC

NC

9

GND

Power Ground

10

NC

NC

11

AVDD

Power supply for Analog Circuit

12

NC

NC

13

VGH

Power supply for Positive Power for TFT

14

NC

NC

15

VGL

Power supply for Negative Power for TFT

16

NC

NC

17

GND

Power Ground

18

VCOM

Power supply for Common voltage.

19~20

GND

Power Ground

21

RESET

Reset pin. Setting either pin low initializes the LSI

22

VCI

power supply for DC/DC circuit(2.7~3.6V)

23

STBYB

Standby mode

24

TP_SYNC

Sync signal for touch panel

25

GND

Power Ground

26

D0P

MIPI-DSI Data differential signal input pins

27

D0N

MIPI-DSI Data differential signal input pins

28

GND

Power Ground

29

D1P

MIPI-DSI Data differential signal input pins

30

D1N

MIPI-DSI Data differential signal input pins

31

GND

Power Ground

32

CLKP

MIPI-DSI CLOCK differential signal input pins

33

CLKN

MIPI-DSI CLOCK differential signal input pins

34

GND

Power Ground

35

D2P

MIPI-DSI Data differential signal input pins

36

D2N

MIPI-DSI Data differential signal input pins

37

GND

Power Ground

39

D3N

MIPI-DSI Data differential signal input pins

40

GND

Power Ground

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.
