Tamaño: 8,8"
Resolución: 480*1280
Interfaz LCD: mipi
Driver IC:OTA7290B
Ángulo de visión: IPS
Tipo de suministro: Fábrica/Fabricante
Certificación: ISO9001,IATF16949,ROHS,REACH

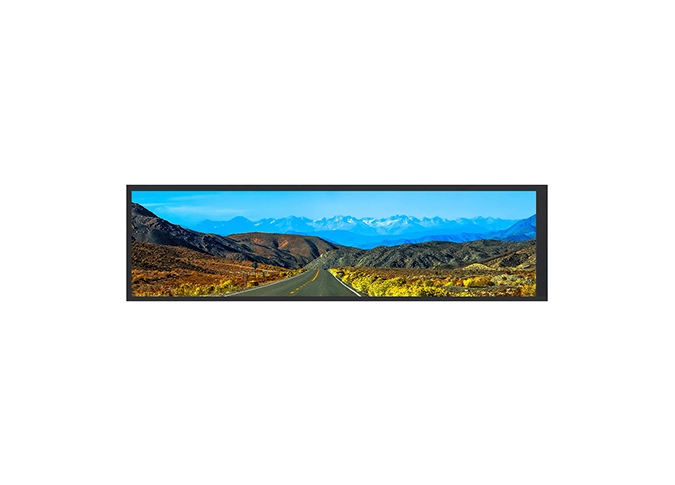

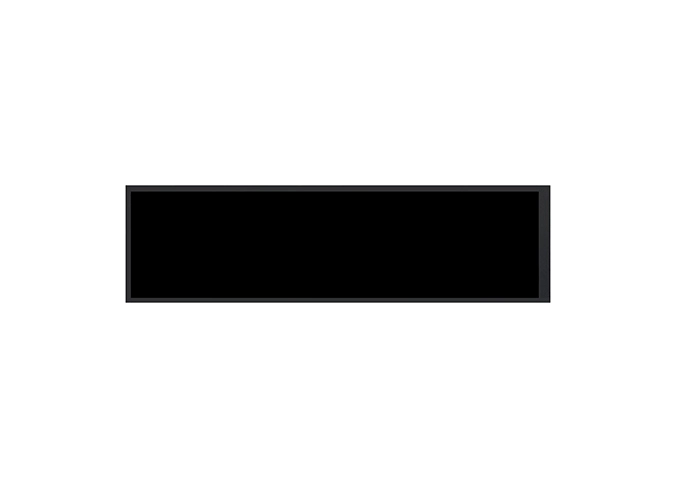

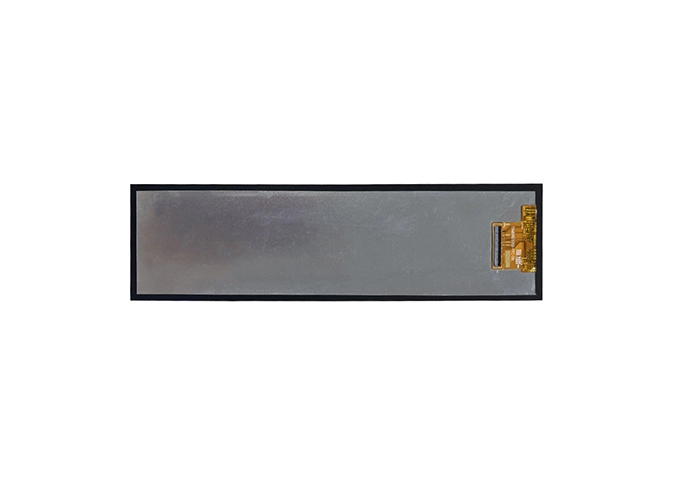

Z88001 es una pantalla de cristal líquido (LCD) de transistor de película delgada (TFT) de matriz activa de color con resolución de 480*1280. La técnica IPS(In-plane Switching) hace que este módulo LCD de 8,8 "tenga un ángulo de visión más amplio. Esta a-Si TFT LCD viene con interfaz mipi. La pantalla integrada OTA7290B controlador IC.
Si tiene un requisito especial, como el controlador IC, interfaz, FPC, panel táctil, retroiluminación, etc., podemos personalizar para usted.
Nuestra fábrica lleva a cabo 9001 ISO: 2015 e IATF16949: 2016 sistema estándar de calidad estrictamente, toda la pantalla LCD pasó ROHS, certificación REACH
La pantalla LCD ultra ancha de 8 "es ampliamente utilizada en la señalización digital, pantalla de información, tablero de menú, tablero, sala de conferencias, juegos, publicidad, quiosco, audio, VR, AR,POS, médico, HMI, navegación, educación, etc
No. | Item | Specification | Unit |
1 | Display Size (Diagonal) | 8.8 | inch |
2 | Display Resolution | 480(H) × RGB × 1920 (V) | pixels |
3 | Pixel Pitch | 114(H) × 114 (V) | um |
4 | LCM Outline Dimension (Without FPC) | 64. 10 (W) ×231.20 (H) ×4.70 (T) | mm |
5 | LCD Active Area | 54.72 (W) ×218.88 (H) | mm |
6 | View Direction (Gray Inversion) | FULL VIEW | - |
7 | Driver IC | OTA7290B | - |
8 | Pixel Arrangement | RGB-Stripe | - |
9 | Display Mode | Normal Black | - |
10 | Pixel driving Element | a-Si TFT | - |
11 | LCD Transmittance | Typ.: 4.2% | - |
12 | LCD Contrast Ratio | Typ.: 800 Min:640 | - |
13 | FPC Version | Z88001 V1 | - |
14 | Interface | MIPI | - |
15 | Operating Temperature | -20°C~ 70°C | - |
16 | Storage Temperature | -30°C~ 80°C | - |
17 | Backlight Arrangement | LED/5 Series 2 Parallel (10 lights in total) | - |
18 | Luminance | Typ.:550 | nit |
19 | Weight | / |
|
| PIN NO. | PIN DEF. | FUNCTION DESC. |
| 1 | GND | Power Ground |
| 2 | NC | NC |
| 3~4 | LEDA | Power supply for backlight anode input terminal. |
| 5 | NC | NC |
| 6~7 | LEDK | Power supply for backlight cathode input terminal. |
| 8 | NC | NC |
| 9 | GND | Power Ground |
| 10 | NC | NC |
| 11 | AVDD | Power supply for Analog Circuit |
| 12 | NC | NC |
| 13 | VGH | Power supply for Positive Power for TFT |
| 14 | NC | NC |
| 15 | VGL | Power supply for Negative Power for TFT |
| 16 | NC | NC |
| 17 | GND | Power Ground |
| 18 | VCOM | Power supply for Common voltage. |
| 19~20 | GND | Power Ground |
| 21 | RESET | Reset pin. Setting either pin low initializes the LSI |
| 22 | VCI | power supply for DC/DC circuit(2.7~3.6V) |
| 23 | STBYB | Standby mode |
| 24 | TP_SYNC | Sync signal for touch panel |
| 25 | GND | Power Ground |
| 26 | D0P | MIPI-DSI Data differential signal input pins |
| 27 | D0N | MIPI-DSI Data differential signal input pins |
| 28 | GND | Power Ground |
| 29 | D1P | MIPI-DSI Data differential signal input pins |
| 30 | D1N | MIPI-DSI Data differential signal input pins |
| 31 | GND | Power Ground |
| 32 | CLKP | MIPI-DSI CLOCK differential signal input pins |
| 33 | CLKN | MIPI-DSI CLOCK differential signal input pins |
| 34 | GND | Power Ground |
| 35 | D2P | MIPI-DSI Data differential signal input pins |
| 36 | D2N | MIPI-DSI Data differential signal input pins |
| 37 | GND | Power Ground |
| 38 | D3P | MIPI-DSI Data differential signal input pins |
| 39 | D3N | MIPI-DSI Data differential signal input pins |
| 40 | GND | Power Ground |
| RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on. | ||
La tecnología Zhunyi presta atención a la calidad y el servicio. Bienvenido a visitarnos y unirse para un futuro próspero.
