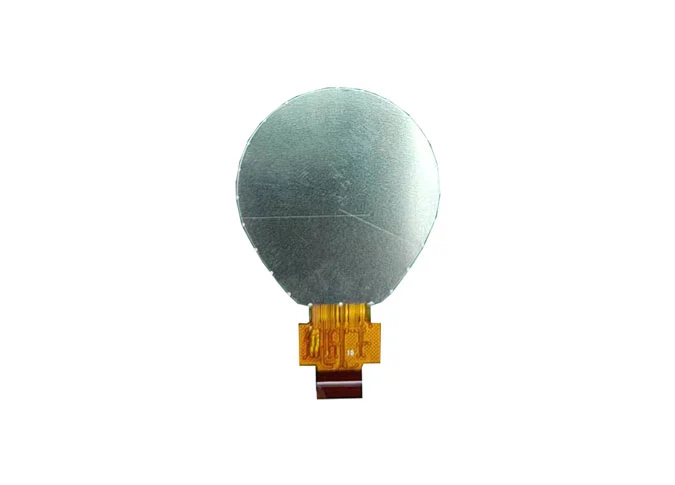

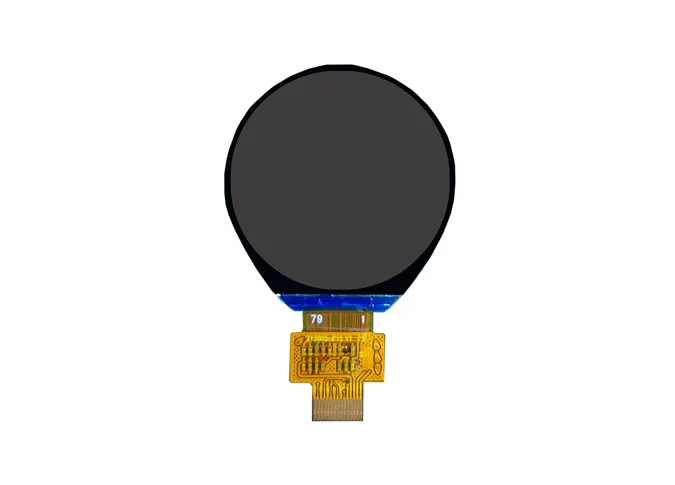

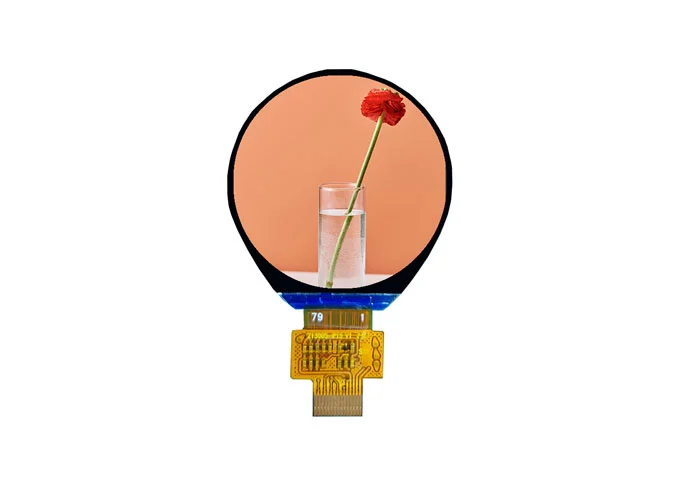

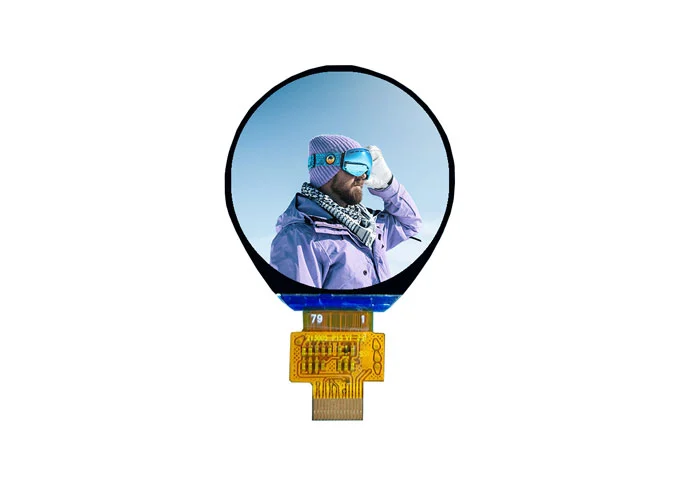

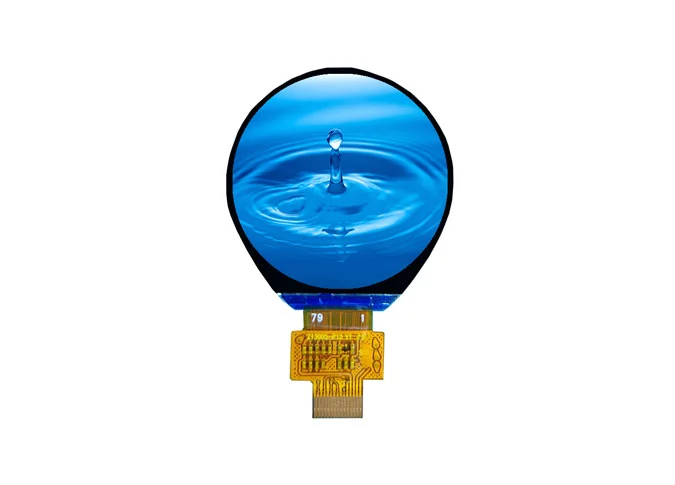

Z13005 700 de alto brillo NITs 360*360 1,3 pulgadas TFT pantalla SPI interfaz JD5858A controlador

1

Display Size (Diagonal)

1.3

inch

2

Display Resolution

360(H） × RGB × 360（V）

pixels

3

Pixel Pitch

30.5(H）× 91.5（V）

um

4

LCM Outline Dimension

(Without FPC）

35.24 (W) ×37.67 (H) ×2.15 (T)

mm

5

LCD Outline Dimension

34.94 (W) × 37.37 (H) × 0.4 (T)

mm

6

LCD Active Area

32.94（W） ×32.94（H）

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

JD5858A-GN

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 4.41%  Min:3.86%

-

13

LCD Contrast Ratio

Typ.: 1500  Min:1200

-

14

FPC Version

Z13005-P15 V1

-

15

Interface

SPI

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/1 Series 2 Parallel (2 lights in total)

-

19

Luminance

Typ.:700

nit

20

Weight

0.003

kg

1

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

2

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

3

GND

Ground

4

VCC

POWER SUPPLY

5

IOVCC

I/O  POWER SUPPLY

6

CS

LCM  SPI  Chip Select  PIN

7

GND

Ground

8

SDA

LCM  SPI data (SDA) data input (MOSI)

9

GND

Ground

10

SCK

LCM  SPI clock (SCL) clock (SCLK)

11

GND

Ground

12

RESET

LCM  RESET  PIN

13

GND

Ground

14

DC

LCM  Data/Command Control  PIN

15

GND

Ground

RESET voltage should be consistent with IOVCC voltage, or there probably is black screen fault when power on.
