Z14601 de alta resolución 360*360 1,46 pulgadas redonda TFT LCD pantalla ST77916 controlador de interfaz SPI

  • Resolución: 360*360

  • Interfaz: SPI

  • Ángulo de visión: toda la dirección

  • Brillo: 300 NITs

  • Panel táctil: Soporte CTP/RTP

  • Tipo de suministro: Fábrica/Fabricante

  • Certificación: ISO9001,IATF16949,ROHS,REACH

z14601 1
z14601 1

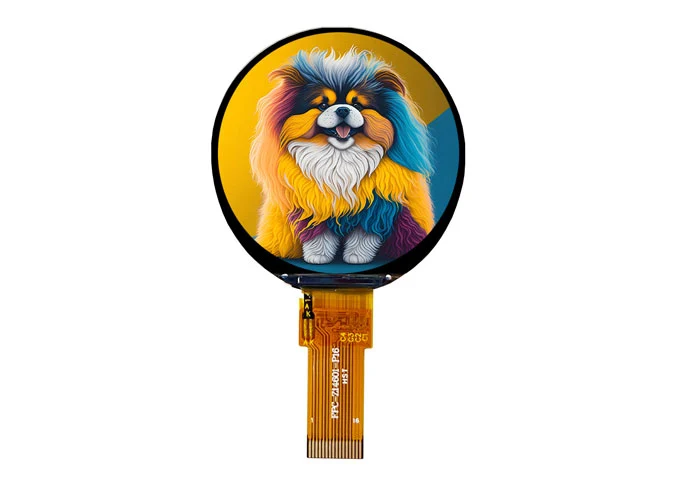

z14601 2

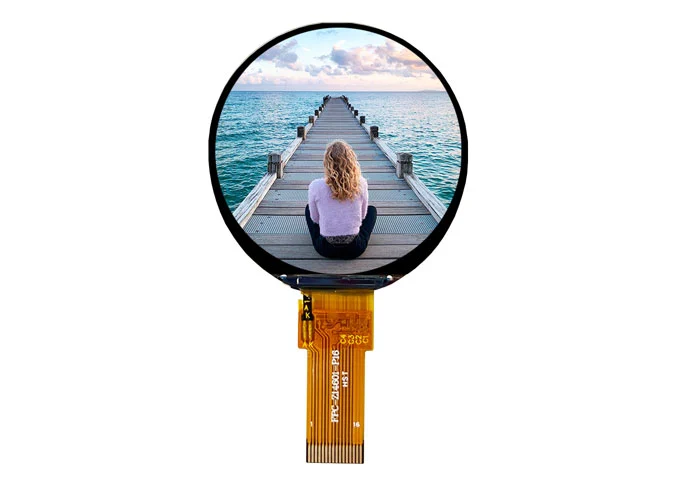

z14601 3

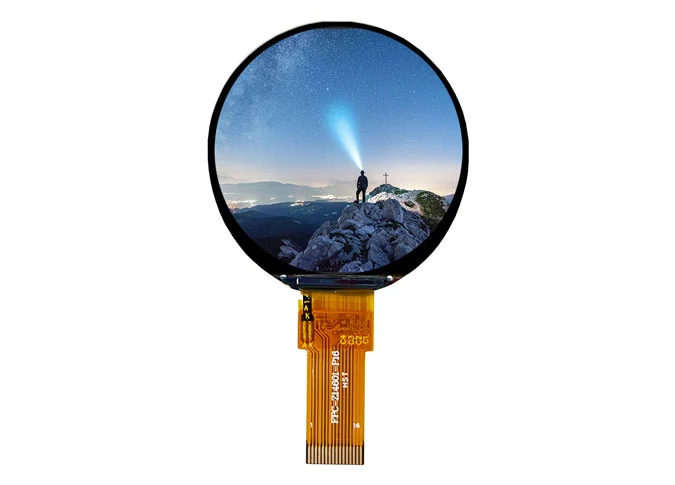

z14601 4

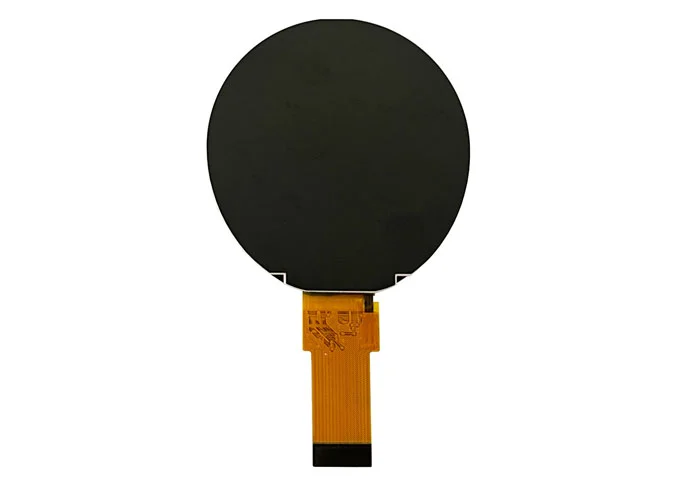

z14601 5
z14601 6

Vista general de 360 de alta resolución Z14601 * 360 1,46 pulgadas redonda TFT LCD pantalla ST77916 controlador de interfaz SPI

1

Z14601 es una pantalla de cristal líquido (LCD) de transistor de película delgada (TFT) de matriz activa de color con resolución de 360*360. La técnica IPS (conmutación en el plano) hace que este módulo LCD de 1,46 tenga un ángulo de visión más amplio.Pantalla LCD de manoEstá integrado ST77916 controlador IC. Este a-Si TFT LCD viene con interfaz SPI.

2

Si tiene requisitos especiales, como conducir IC, interfaz, FPC, panel táctil, brillo, color, retroiluminación, panel táctil, etc, elFabricante redondo de la pantalla LCDTambién puede personalizar para usted.

3

NuestroPanel LCD redondo de fábricaLlevar a cabo ISO 9001: 2015 e IATF16949: 2016 sistema estándar de calidad estrictamente, toda la pantalla LCD pasó ROHS, REACH Certificación.

4

Así como lo popularPantalla LCD de 4,5 pulgadas, El 1,46 "LCM redondo es ampliamente utilizado en reloj inteligente, panel de control del hogar inteligente, dispositivo portátil, instrumento médico, equipo industrial, Banco de energía, pulsera inteligente, collar digital, etc

General Specifications of Z14601 High Resolution 360*360 1.46 inch Round TFT LCD Display ST77916 Driver SPI Interface


No.

Item

Specification

Unit

1

Display Size (Diagonal)

1.46

inch

2

Display Resolution

360(H) × RGB × 360  (V)

pixels

3

Pixel Pitch

102.6x102.6

um

4

LCM Outline Dimension

(Without FPC)

39.3 (W) ×40.96 (H) ×1.6 (T)

mm

5

LCD Outline Dimension

38.936x40.706

mm

6

LCD Active Area

36.94  (W) ×36.94  (H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

ST77916

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 2.94%    Min:2.5%

-

13

LCD Contrast Ratio

Typ.: 1200    Min:900

-

14

FPC Version

Z14601-P16 V1

-

15

Interface

4LINE-SPI

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/ 1Series3Parallel

-

19

Luminance

300(typ)

nit

20

Weight

0.003

g


Interface Definition Description of Z14601 High Resolution 360*360 1.46 inch Round TFT LCD Display ST77916 Driver SPI Interface


PinN

Symbol

Function

1

GND

Power ground

2

LEDA

Power for LED back light   anode (+)

3

LEDK

Power for LED back light   cathode(-)

4

GND

Power ground

5

LCD  VCC

Power supply( 3.3V)

6

IOVCC

I/O Power supply(1.8V/3.3V)

7

GND

Power ground

8

SDA

LCM   SPI data (SDA) data input (MOSI)

9

D/CX

Display data/command selection pin in 4-line serial interface.

10

SCL

LCM   SPI clock (SCL) clock (SCLK)

1 1

CS

Chip selection pin

12

RESET

This signal will reset the device and it must be applied to properly initialize the chip,signal is active low

13

FMARK  (TE)

Tearing effect signal is used to synchronize MCU to frame memory ,if not use let this pin open.

14-16

GND

Power ground

RESET voltage should be consistent with IOVCC voltage, or there probably is black screen fault when power on.
