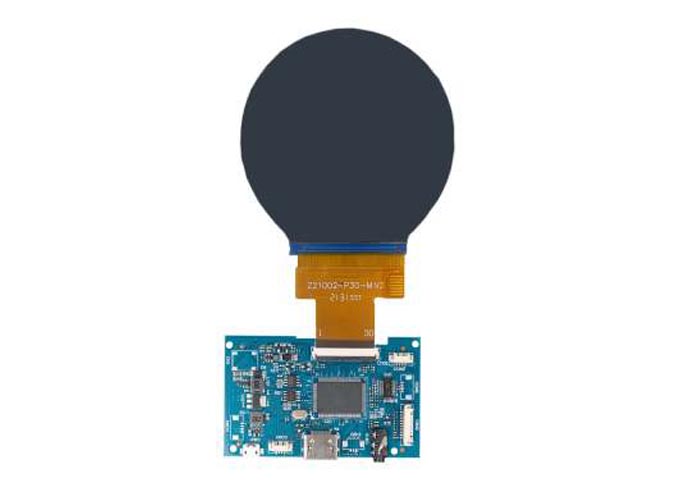

Z21002HD 480*480 2,1 pulgadas pantalla LCD redonda interfaz HDMI 380 brillo de las NITs

1

Display Size (Diagonal)

2.1

inch

2

Display Resolution

480 (H) × RGB × 480 (V）

pixels

3

Pixel Pitch

111 (H) × 111 (V）

um

4

LCM Outline Dimension

(Without FPC）

56.18 (W) × 59.71 (H) × 2.3 (T)

mm

5

LCD Outline Dimension

55.88 (W) × 59.36 (H) × 0.8 (T)

mm

6

LCD Active Area

53.28 (W) × 53.28 (H）

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

ST7701S-G5

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 4.0% Min: 3.6%

-

13

LCD Contrast Ratio

Typ.: 1000 Min: 800

-

14

FPC Version

Z21002-P30-M V4

-

15

Interface

MIPI

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/1 Series 4 Parallel (4 lights in total)

-

19

Luminance

380

nit

20

Weight

0.012

kg

Application

Raspberry Pi, PC,3D Printer, VR prejector, Medical, Industry, high lightscreen, drone

OSD Language

Chinese English

Board

Type

LED/LCD

Interface

Single/MIPI

Max Resolution

1440*2560

Video Input

PC-RGB

Format

1440*2560

HDMI

480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2K

Audio Input

PC Audio

Earphone input

0.2 ~ 2.0 VRMS

Audio output

Frequency Response

100Hz~15KHz @±3dB (1KHz, 0dB reference signal)

Max output power

2×1W (8Ω) THD+N<10%@1KHz

(power voltage: 5V, audio input: 0.5VRMS)

Power

Request

5V, 5VSB (built in)

Board voltage

3.3V/5V

admin

Standby mode consumption < 0.5W (Limit mainbaord)

KEY BUTTON

Power, Menu, Vol+, Vol-, Setup/Quit
