Tamaño: 7 pulgadas
Resolución: 1024*600
Interfaz: RGB
Driver IC: EK79001HE EK73215BCGA
Ángulo de visión: 12 en punto
Brillo: 300 NITs
Panel táctil: Soporte CTP/RTP
Tipo de suministro: Fábrica/Fabricante
Certificación: ISO9001, IATF16949, ROHS, REACH

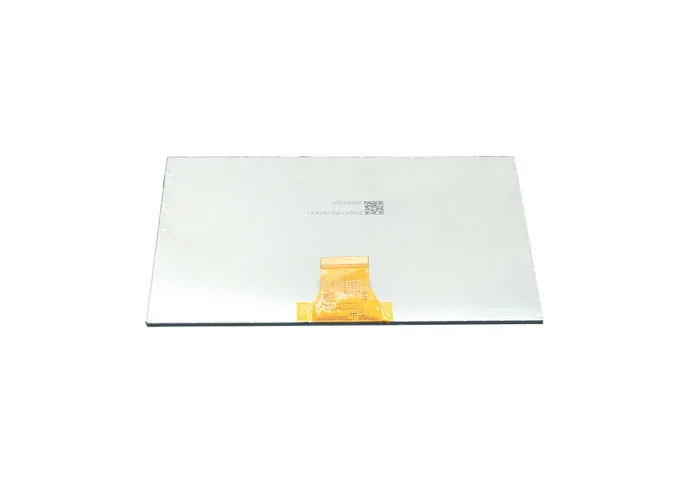

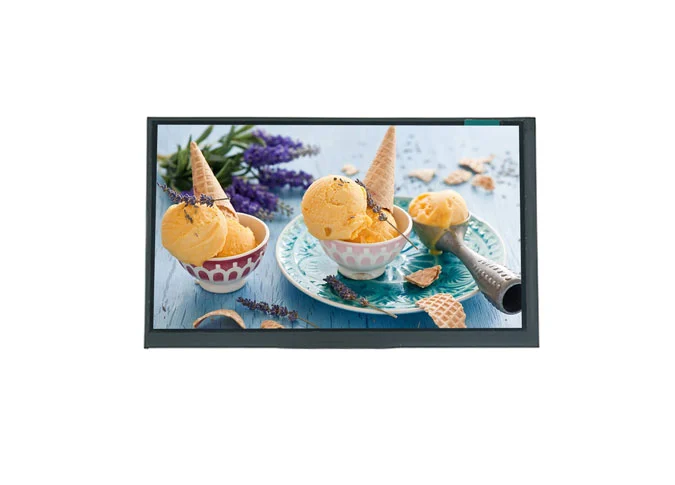

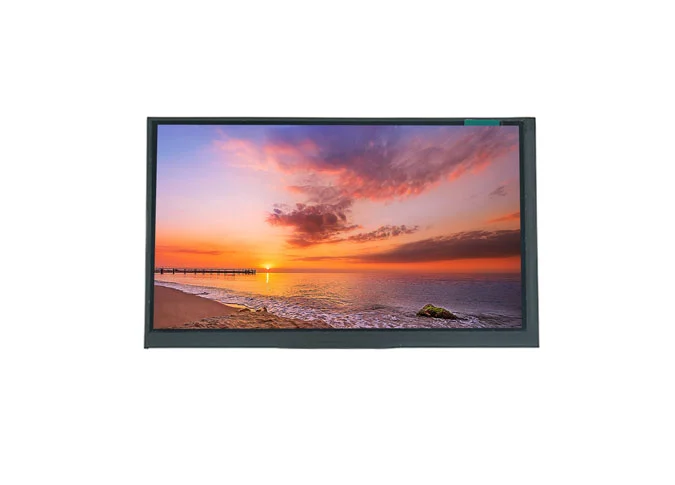

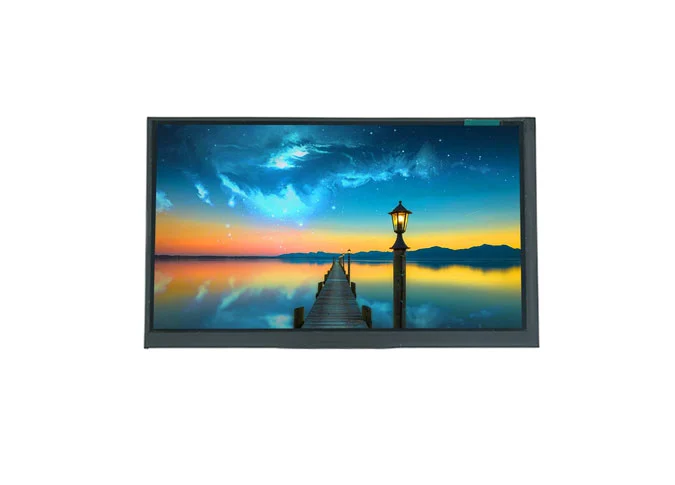

Z70041 es una pantalla de cristal líquido (LCD) de transistor de película delgada (TFT) de matriz activa de color con resolución de 1024*600. Este a-Si TFT LCDPanel LCD IPS cuadradoVienen con interfaz RGB, brillo de 300cd/m². Ángulo de visión de las 12 en punto.
Si usted tiene requisitos especiales, como la unidad de interfaz IC, FPC, panel táctil, brillo, color, retroiluminación, etc, podemos proporcionarPantalla LCD con forma personalizadaPara ti.
Como unFabricante cuadrado de la pantalla LCD, Nuestra fábrica lleva a cabo 9001 ISO: 2015 e IATF16949: 2016 sistema estándar de calidad estrictamente, pasó toda la pantalla LCD ROHS, certificación REACH.
La pantalla LCD horizontal de 7 pulgadas es ampliamente utilizada en médicos, timbre visual, expendedoras, mechine de aprendizaje, ventilador, osciloscopio, cocina, electrodomésticos, escáner QRcode, hogar inteligente, industria, portátil, al aire libre, HMI, E-bike, vehículo, proyector, impresora 3D, dispositivo de audio, robot, escala eléctrica, Navegación, publicidad de ascensores, etc.
Item | Main Display | Unit |
Number of Pixels | 1024 * RGB * 600 | Pixel |

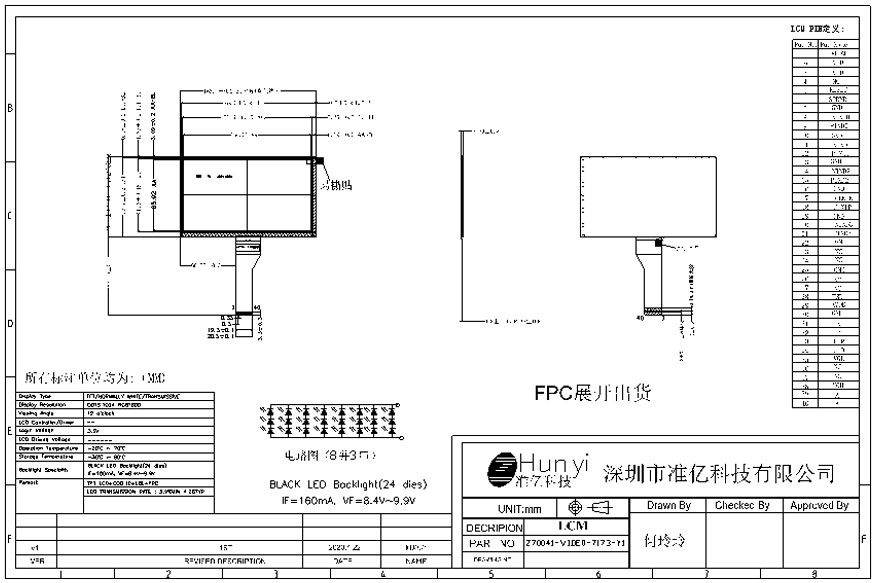

LCM Outline Dimension | 163.70 (W) * 96.9 (H) * 2.6 (T) | mm |
LCD Outline Dimension | 162.20 (W) * 95.70 (H) * 1.0 (T) | mm |
Active Area | 154.21 (W) * 85.92 (H) | mm |
Pixel Pitch | 0.0502 (W) * 0.1432 (H) | mm |
Display Mode | Normally White | |
Pixel Arrangement | RGB vertical stripe | |
Viewing Direction | 12 o'clock | |
Color Configuration | RGB | |
LCD Transmittance | Typ: 4.2%; Min: 3.9% | |
LCD Contrast Ratio | Typ: 800; Min: 600 | |
FPC Version | Z70041-VIDE0 V2 | |
Interface | LVDS | |
Operating Temperature | -20℃ ~ 70℃ | |
Storage Temperature | -30℃ ~ 80℃ | |
Backlight arrangement | LED / 3 series 8 parallel | |
Luminance | - | |
Weight | - |
PIN NO. | PIN DEF | FUNCTION DESC. |
1 | VCOM | Common Voltage (3.15V) |
2-3 | VDD | POWER SUPPLY (3.3V） |
4 | NC | NC |
5 | RES | Reset pin (3.3V） |
6 | STBYB | Standby mode, normally pull high STBYB= "1", normal operation STBYB= "0", timing control, source driver will turn off, all output are high-Z |
7 | GND | Ground |
8 | D0-N | MIPI-DSI Data differential signal input pins. (Data lane 0) |
9 | D0-P | MIPI-DSI Data differential signal input pins. (Data lane 0) |
10 | GND | Ground |
11 | D1-N | MIPI-DSI Data differential signal input pins. (Data lane 1) |
12 | D1-P | MIPI-DSI Data differential signal input pins. (Data lane 1) |
13 | GND | Ground |
14 | D2-N | MIPI-DSI Data differential signal input pins. (Data lane 2) |
15 | D2-P | MIPI-DSI Data differential signal input pins. (Data lane 2) |
16 | GND | Ground |
17 | CLK-N | MIPI-DSI CLOCK differential signal input pin |
18 | CLK-P | MIPI-DSI CLOCK differential signal input pin |
19 | GND | Ground |
20 | D3-N | MIPI-DSI Data differential signal input pins. (Data lane 3) |
21 | D3-P | MIPI-DSI Data differential signal input pins. (Data lane 3) |
22 | GND | Ground |
23-24 | NC | NC |
25 | GND | Ground |
26-27 | NC | NC |
28 | HSD | In LVDS interface connected HSD to FPC for pin setting HSD= "L": 8 bit HSD= "H": 6 bit |
29 | AVDD | Power for Analog Circuit (9.6V) |
30 | GND | Ground |
31-32 | LED-K | POWER SUPPLY- FOR BACKLIGHT CATHODE |
33 | L/R | SHLR |
34 | U/D | UPDN |
35 | VGL | Gate OFF Voltage (-6V) |
36-37 | NC | NC |
38 | VGH | Gate ON Voltage (18V) |
39-40 | LED-A | POWER SUPPLY+ FOR BACKLIGHT |
