Tamaño: 9 pulgadas
Resolución: 1024*600
Área activa: 196.906*114.158mm
Interfaz: LVDS
Ángulo de visión: IPS
Brillo: 400 cd/m²
Panel táctil: Soporte CTP/RTP
Tipo de suministro: Fábrica/Fabricante
Certificación: ISO9001, IATF16949, ROHS, REACH

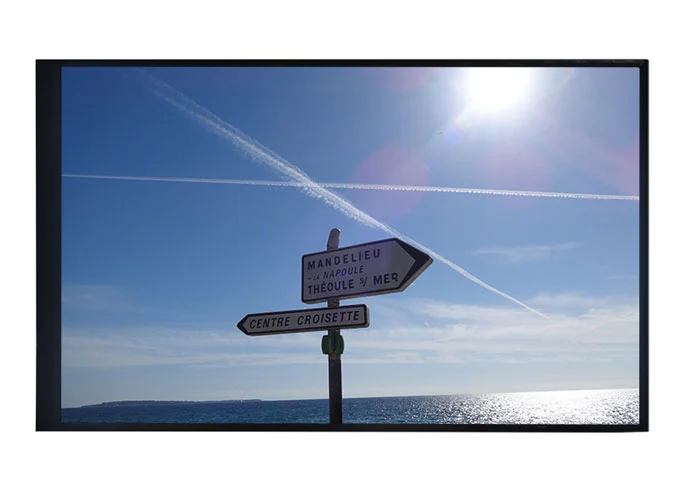

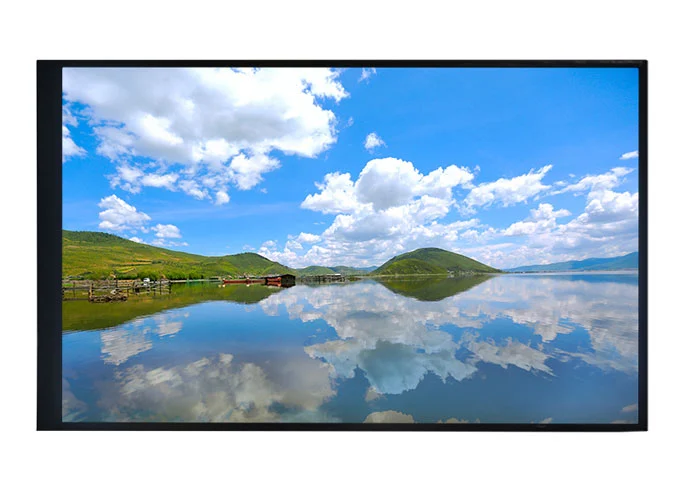

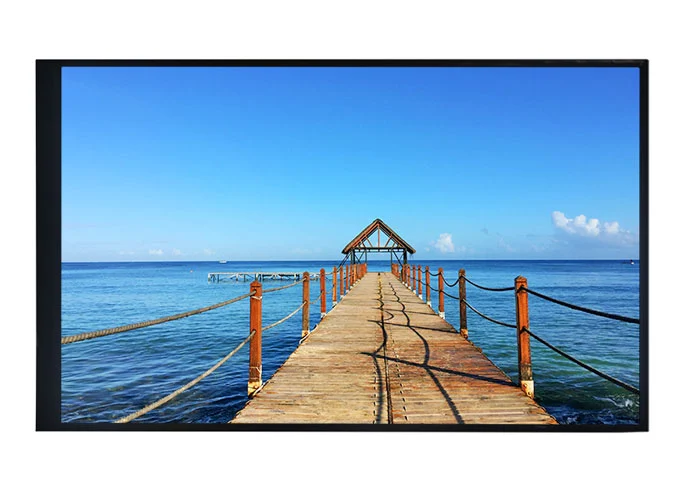

Z90080 es una pantalla de cristal líquido (LCD) de transistor de película delgada (TFT) de matriz activa de color con resolución de 1024*600. La técnica IPS (In-plane Switching) hace que este módulo LCD de 9 "tenga un ángulo de visión más amplio. Este módulo a-Si TFT LCD viene con interfaz LVDS, brillo de 400cd/m².
Si usted tiene requisitos especiales, como unidad IC, interfaz, FPC, panel táctil, brillo, color, retroiluminación, panel táctil, etc, podemos proporcionarChina Módulo de pantalla LCD TFTPara ti.
Como unChina Módulo LCD fabricante, Nuestra fábrica lleva a cabo 9001 ISO: 2015 e IATF16949: 2016 sistema estándar de calidad estrictamente, pasó toda la pantalla LCD ROHS, certificación REACH.
El 9 pulgadasChina Pantalla táctil TFTEs ampliamente utilizado en el timbre médico, visual, expendedora, mechine de aprendizaje, ventilador, osciloscopio, cocina, electrodomésticos, hogar inteligente, industria, mano, al aire libre, E-bike, vehículo, proyector, impresora 3D, dispositivo de audio, robot, báscula eléctrica, navegación, salpicadero, ascensor publicidad, ordenador portátil, HMI, Educación, etc.
No. | Item | Specification | Unit |
1 | Display Size (Diagonal) | 9.0 | inch |
2 | Display Resolution | 1024 (H) × RGB × 600 (V） | pixels |
3 | Pixel Pitch | 192 (H) × 190.25 (V） | um |

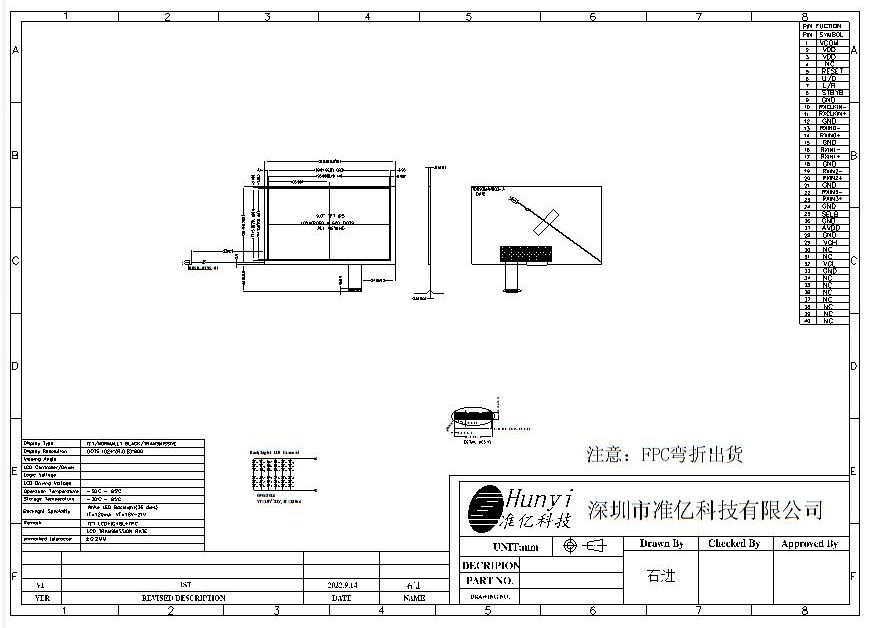

4 | LCM Outline Dimension (Without FPC） | 210.7 (W) × 126.4 (H) × 3.4 (T) | mm |
6 | LCD Active Area | 196.608 (W) × 114.15 (H) | mm |
7 | View Direction (Gray Inversion) | FULL VIEW | - |
8 | Driver IC | / | - |
9 | Pixel Arrangement | RGB-Stripe | - |
10 | Display Mode | Normal Black | - |
11 | Pixel driving Element | a-Si TFT | - |
12 | LCD Transmittance | Typ.: TBD | - |
13 | LCD Contrast Ratio | Typ.: 800 Min: 640 | - |
14 | FPC Version | Z90080-P40 | - |
15 | Interface | LVDS | - |
16 | Operating Temperature | -30°C~ 85°C | - |
17 | Storage Temperature | -30°C~ 85°C | - |
18 | Backlight Arrangement | LED/6 Series 6 Parallel (36 lights in total) | - |
19 | Luminance | Typ.:400 | nit |
20 | Weight | 0.240 | kg |
PIN NO. | PIN DEF. | FUNCTION DESC. |
1 | VCOM | Common Voltage |
2 | VDD | Power Voltage for digital circuit |
3 | VDD | Power Voltage for digital circuit |
4 | NC | No connection |
5 | Reset | Global reset pin |
6 | U/D | Vertical inversion |
7 | L/R | Horizontal inversion |
8 | STBYB | Standby mode, Normally pulled high STBYB = "1", normal operation STBYB = "0", timing controller, source driver will turn off, all output are High-Z |
9 | GND | Ground |
10 | RXCLKIN- | - LVDS differential data input |
11 | RXCLKIN+ | + LVDS differential data input |
12 | GND | Ground |
13 | RXIN0- | - LVDS differential data input |
14 | RXIN0+ | + LVDS differential data input |
15 | GND | Ground |
16 | RXIN1- | - LVDS differential data input |
17 | RXIN1+ | + LVDS differential data input |
18 | GND | Ground |
19 | RXIN2- | - LVDS differential clock input |
20 | RXIN2+ | + LVDS differential clock input |
21 | GND | Ground |
22 | RXIN3- | - LVDS differential data input |
23 | RXIN3+ | + LVDS differential data input |
24 | GND | Ground |
25 | SELB | 6bit/8bit mode selection |
26 | GND | Ground |
27 | AVDD | Power for Analog Circuit |
28 | GND | Ground |
29 | VGH | Gate ON Voltage |
30 | NC | No connection |
31 | NC | No connection |
32 | VGL | Gate off Voltage |
33 | GND | Ground |
34-40 | NC | No connection |
RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on. | ||
