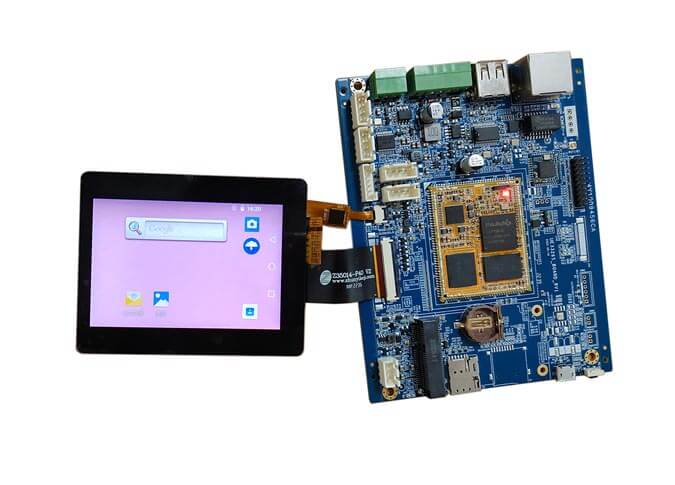

Usando el sistema Linux Core más reciente, este módulo compacto de pantalla táctil de 3,5 pulgadas se crea específicamente para Raspberry Pi. Esto es perfecto para proyectos de bricolaje en cualquier momento o lugar porque no necesita una fuente de alimentación o un estuche de transporte por separado. El módulo está directamente encima de Pi. También se incluye un lápiz con la pantalla para interactuar con la pequeña pantalla.
No. | Item | Specification | Unit |
1 | Display Size (Diagonal) | 3.5 | inch |
2 | Display Resolution | 320 (H) × RGB × 240 (V) | pixels |
3 | Pixel Pitch | 73 (H) × 219 (V) | um |

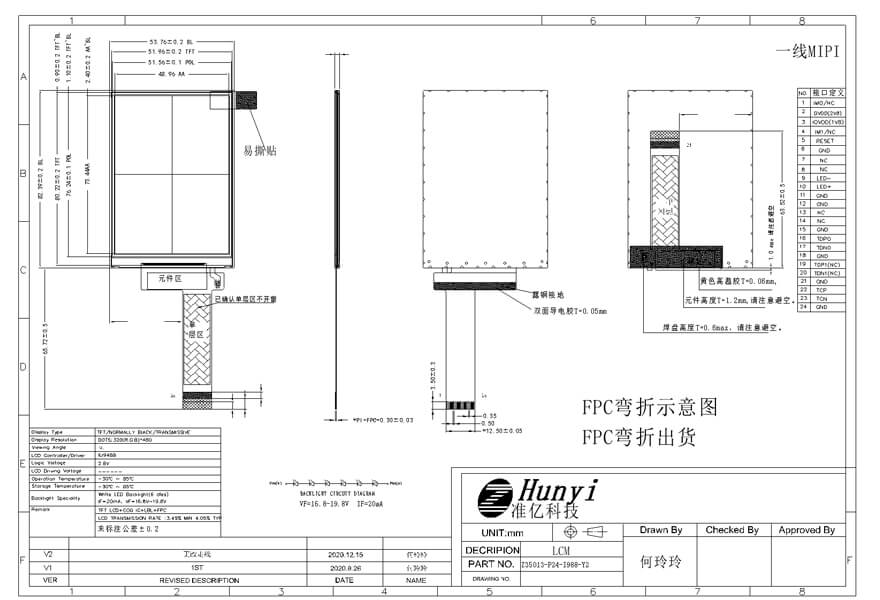

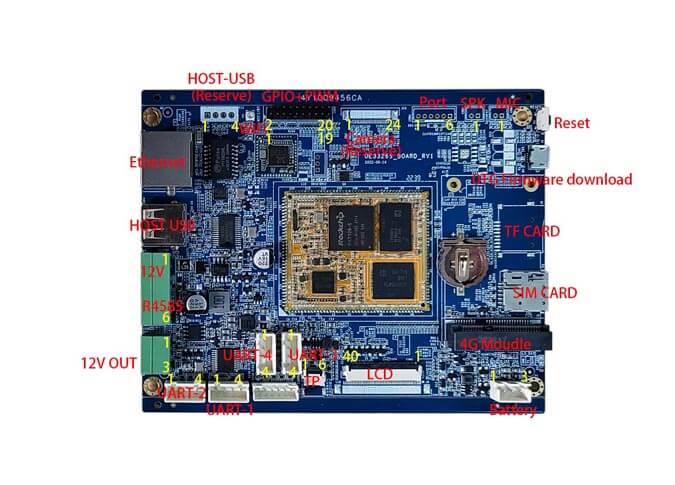

4 | LCM Outline Dimension (Without FPC） | 53.76 (W) × 82.39 (H) × 2.23 (T) | mm |
5 | LCD Outline Dimension | 51.96 (W) × 80.22 (H) × 0.8 (T) | mm |
6 | LCD Active Area | 48.96 (W) × 73.44 (H) | mm |
7 | View Direction (Gray Inversion) | FULL VIEW | - |
8 | Driver IC | ILI9488 | - |
9 | Pixel Arrangement | RGB-Stripe | - |
10 | Display Mode | Normal Black | - |
11 | Pixel driving Element | a-Si TFT | - |
12 | LCD Transmittance | Typ.: 6.2% Min: 5.25% | - |
13 | LCD Contrast Ratio | Typ.: 1200 Min: 900 | - |
14 | FPC Version | Z35013-P24 V2 | - |
15 | Interface | MIPI | - |
16 | Operating Temperature | -30°C~ 85°C | - |
17 | Storage Temperature | -30°C~ 85°C | - |
18 | Backlight Arrangement | LED/6 Series 1 Parallel (6 lights in total) | - |
19 | Luminance | 330 | nit |
20 | Weight | 0.020 | kg |
PIN NO. | PIN DEF. | FUNCTION DESC. |
1 | IM0/NC | LCM IM PIN/No Connection |
2 | DVDD(2V8) | OWER SUPPLY (2.8V） |
3 | IOVDD(1V8) | I/O POWER SUPPLY (1.8V） |
4 | IM1/NC | LCM IM PIN/No Connection |
5 | RESET | LCM RESET PIN |
6 | GND | Ground |
7-8 | NC | No Connection |
9 | LEDK | POWER SUPPLY- FOR BACKLIGHT CATHODE |
10 | LEDA | POWER SUPPLY- FOR BACKLIGHT ANODE |
11-12 | GND | Ground |
13-14 | NC | No Connection |
15 | GND | Ground |
16 | TDP0 | Positive MIPI differential data input |
17 | TDN0 | Negative MIPI differential data input |
18 | GND | Ground |
19 | TDP1(NC) | Positive MIPI differential data input/No Connection |
20 | TDN1(NC) | Negative MIPI differential data input/No Connection |
21 | GND | Ground |
22 | TCP | Positive MIPI differential CLOCK input |
23 | TCN | Negative MIPI differential CLOCK input |
24 | GND | Ground |
RESET voltage should be consistent with IOVDD voltage, or there probably is black screen fault when power on. | ||
